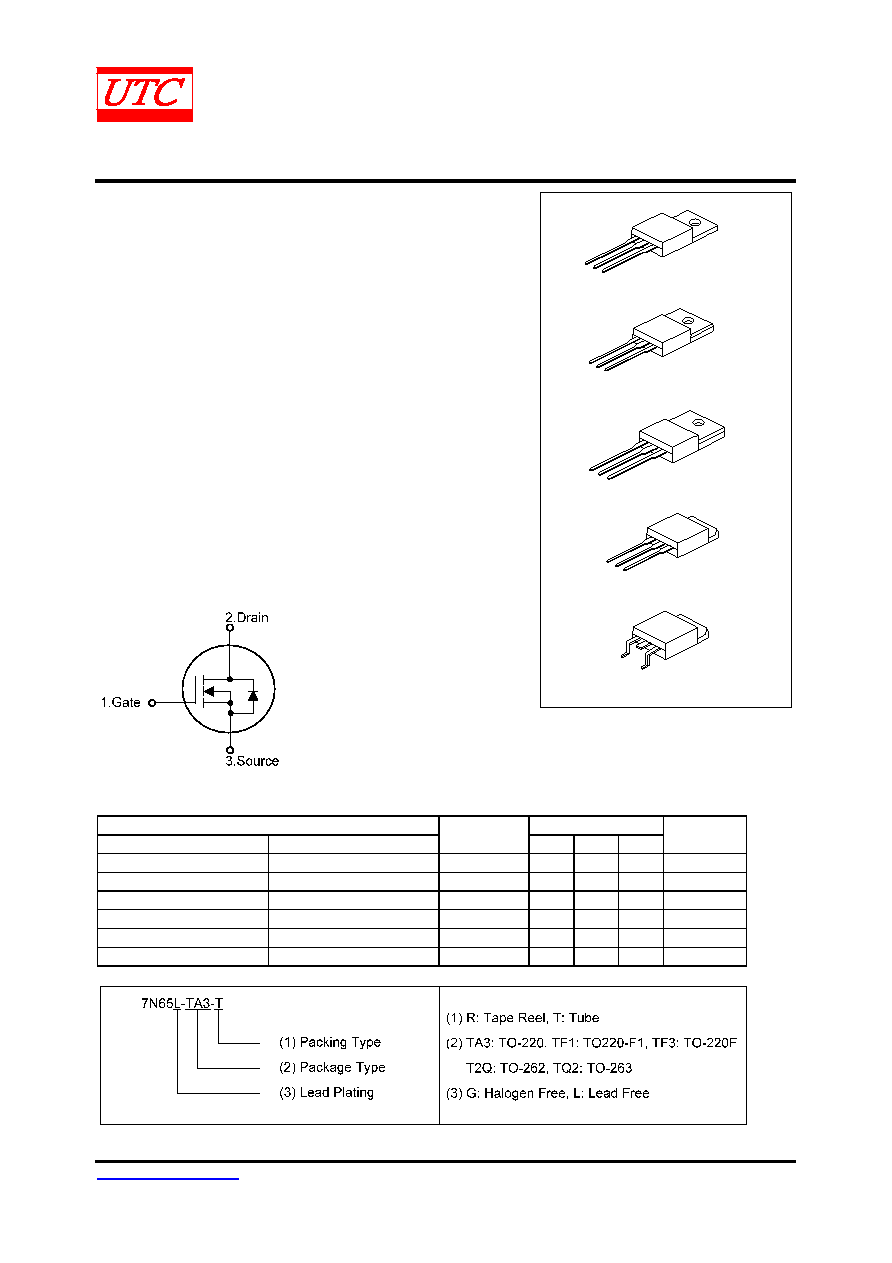

UNISONIC TECHNOLOGIES CO., LTD

7N65

Power MOSFET

www.unisonic.com.tw

1 of 6

Copyright © 2009 Unisonic Technologies Co., Ltd

QW-R502-104.Ba

7.4 Amps, 650 Volts

N-CHANNEL POWER MOSFET

DESCRIPTION

The UTC 7N65 is a high voltage MOSFET and is designed to

have better characteristics, such as fast switching time, low gate

charge, low on-state resistance and have a high rugged avalanche

characteristics. This power MOSFET is usually used at high speed

switching applications in switching power supplies and adaptors.

FEATURES

* Ultra low gate charge (typical 29 nC )

* Fast switching capability

* Avalanche energy tested

* Improved dv/dt capability, high ruggedness

SYMBOL

TO-220

1

1

TO-220F

1

TO-220F1

TO-262

1

TO-263

1

ORDERING INFORMATION

Ordering Number

Pin Assignment

Lead Free

Halogen Free

Package

1

2

3

Packing

7N65L-TA3-T

7N65G-TA3-T

TO-220

G

D

S

Tube

7N65L-TF1-T

7N65G-TF1-T

TO-220F1

G

D

S

Tube

7N65L-TF3-T

7N65G-TF3-T

TO-220F

G

D

S

Tube

7N65L-T2Q-T

7N65G-T2Q-T

TO-262

G

D

S

Tube

7N65L-TQ2-R

7N65G-TQ2-R

TO-263

G

D

S

Tape Reel

7N65L-TQ2-T

7N65G-TQ2-T

TO-263

G

D

S

Tube

Note: Pin Assignment: G: Gate D: Drain S: Source
