11 / 32 page

Data Sheet

ADL5304

Rev. 0 | Page 11 of 32

2.3

2.1

1.9

1.7

1.5

1.3

1.1

0.9

0.7

0.5

0.3

10203040

5060

TIME (µs)

1mA TO 10mA

100µA TO 1mA

10µA TO 100µA

1µA TO 10µA

100nA TO 1µA

10nA TO 100nA

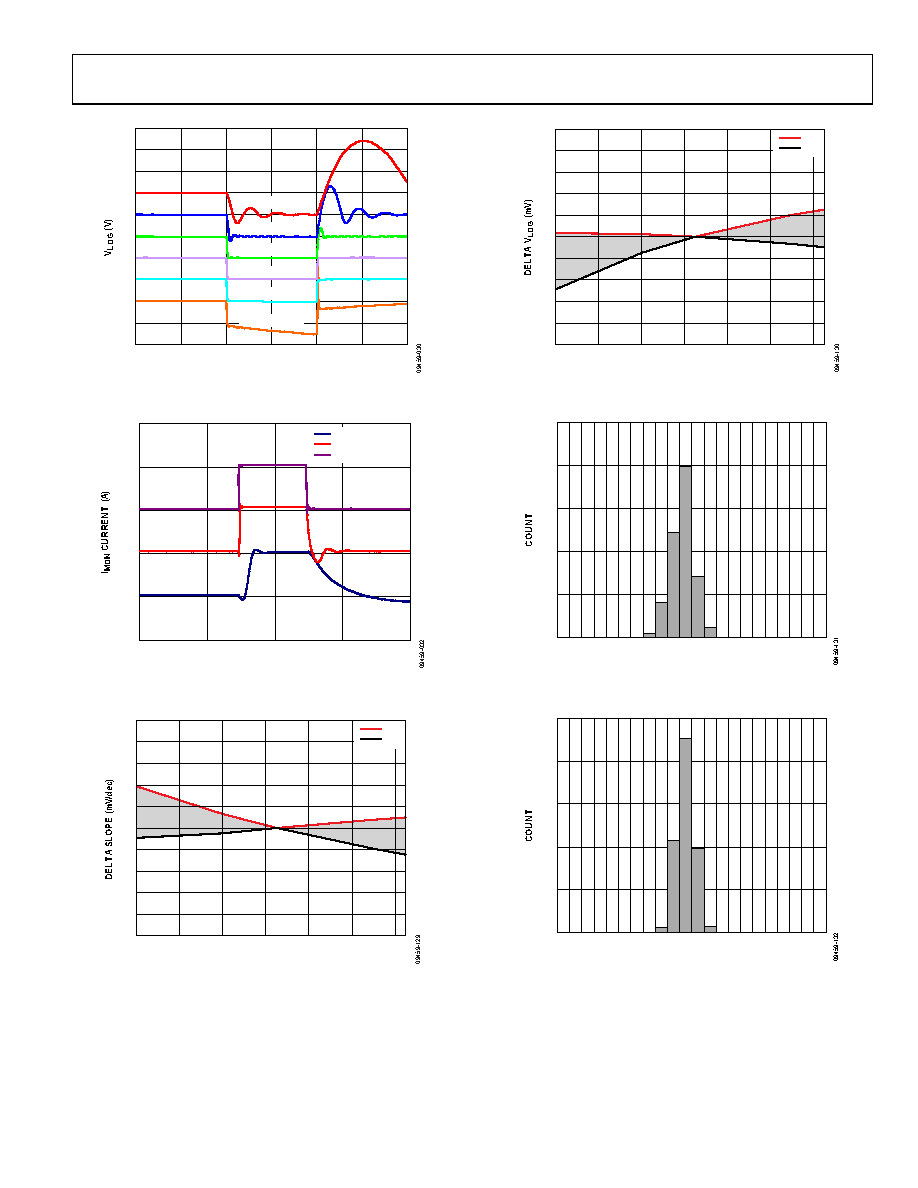

Figure 27. Pulse Response for IDEN in Decade Steps from 1 nA to 1 mA;

INUM = 100 nA

10m

100µ

10µ

1µ

100n

2040608

TIME (µs)

1.1µA TO 11µA

11µA TO 110µA

110µA TO 1.1mA

Figure 28. IMON Pulse Response vs. INUM

–5

–4

–3

–2

–1

–40

–20

TEMPERATURE (°C)

+3σ

–3σ

Figure 29. Slope Drift vs. Temperature for 200 mV/dec

(3 σ to Either Side of Mean)

–10

–8

–6

–4

–2

–40

–20

TEMPERATURE (°C)

+3σ

–3σ

Figure 30. Logarithmic Offset Drift vs. Temperature

(3 σ to Either Side of Mean)

INUM VOS (mV)

100

150

200

250

–1.0

–0.5

0.5

1.0

Figure 31. (VNUM − VSUM) Histogram at 25°C

1P5V VOLTAGE (V)

100

150

200

250

1.496

1.498

1.500

1.502

1.504

Figure 32. 1P5V Histogram
