ADL5336

Data Sheet

Rev. B | Page 12 of 32

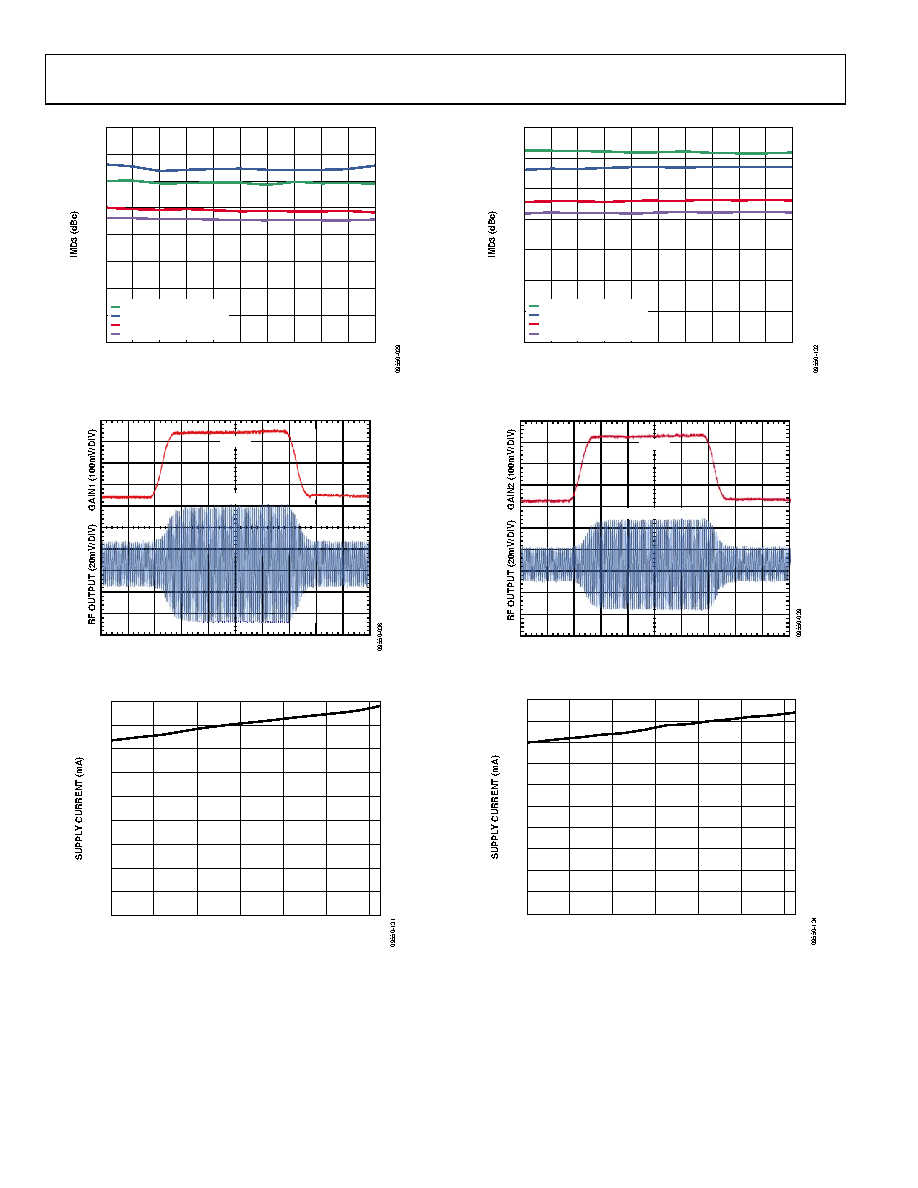

Figure 29. IMD3 vs. VGAIN over Frequency and Gain Code, VOUT = 1 V p-p

Composite, 2 MHz Spacing for VGA1

Figure 30. VGAIN Step Response (VGA Mode) over Gain Step, VIN = 100 mV p-p

for VGA1

Figure 31. Supply Current (VGA1 Switch Disabled) over Temperature

Figure 32. IMD3 vs. VGAIN over Frequency and Gain Code, VOUT = 1 V p-p

Composite, 2 MHz Spacing for VGA2

Figure 33. VGAIN Step Response (VGA Mode) over Gain Step, VIN = 100 mV p-p

for VGA2

Figure 34. Supply Current (VGA2 Switch Enabled) over Temperature
