ADL5350

Rev. 0 | Page 22 of 24

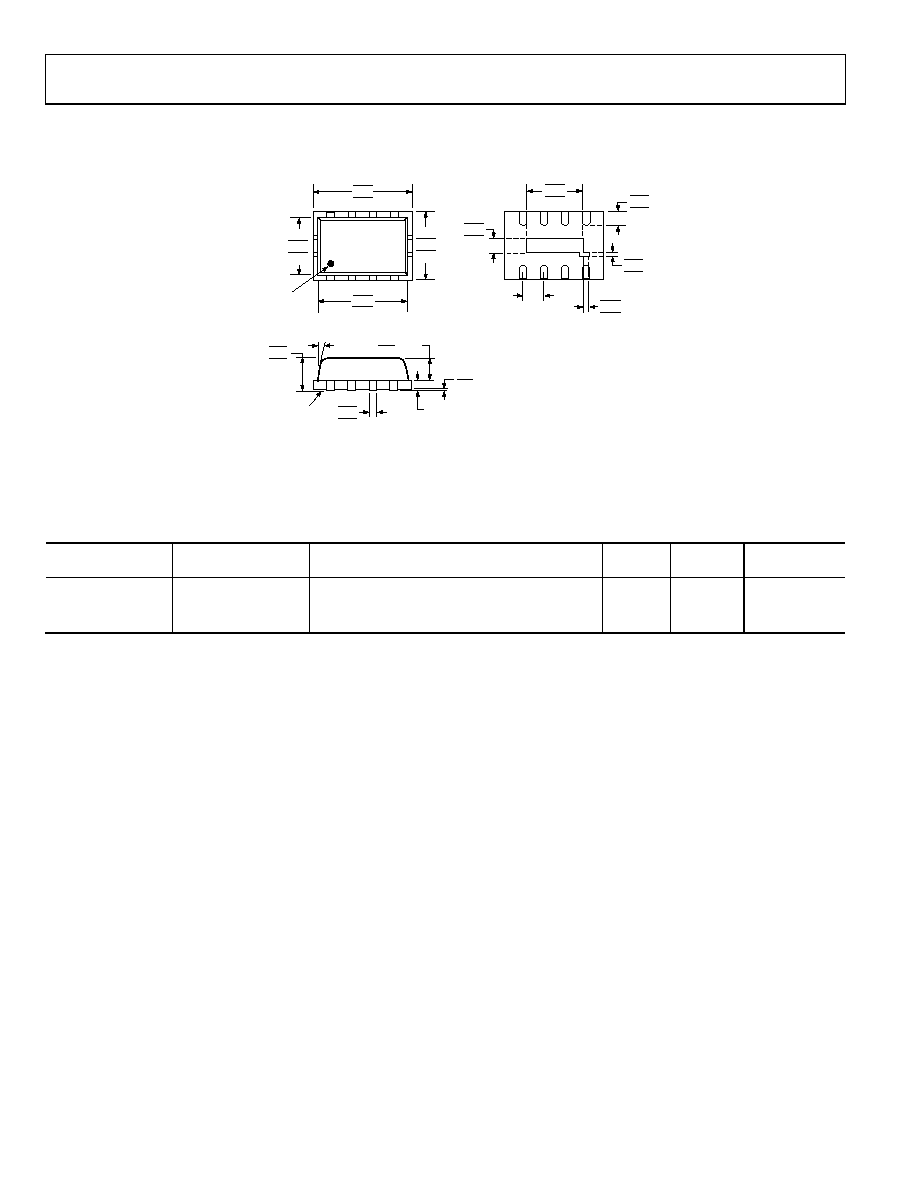

OUTLINE DIMENSIONS

0.30

0.23

0.18

SEATING

PLANE

0.20 REF

0.80 MAX

0.65 TYP

1.00

0.85

0.80

1.89

1.74

1.59

0.50 BSC

0.60

0.45

0.30

0.55

0.40

0.30

0.15

0.10

0.05

0.25

0.20

0.15

BOTTOM VIEW

3.25

3.00

2.75

1.95

1.75

1.55

2.95

2.75

2.55

PIN 1

INDICATOR

2.25

2.00

1.75

TOP VIEW

0.05 MAX

0.02 NOM

12° MAX

EXPOSED PAD

Figure 66. 8-Lead Lead Frame Chip Scale Package [LFCSP_VD]

2 mm × 3 mm Body, Very Thin, Dual Lead

(CP-8-1)

Dimensions shown in millimeters

ORDERING GUIDE

Model

Temperature Range

Package Description

Package

Option

Branding

Ordering

Quantity

ADL5350ACPZ-R71

−40°C to +85°C

8-Lead Lead Frame Chip Scale Package [LFCSP_VD]

CP-8-1

3000, Reel

ADL5350ACPZ-WP1

−40°C to +85°C

8-Lead Lead Frame Chip Scale Package [LFCSP_VD]

CP-8-1

50, Waffle Pack

ADL5350-EVALZ1

Evaluation Board

1 Z = RoHS Compliant Part.
