FT240X USB 8-BIT FIFO IC Datasheet
Version 1.3
Document No.: FT_000626 Clearance No.:
FTDI# 259

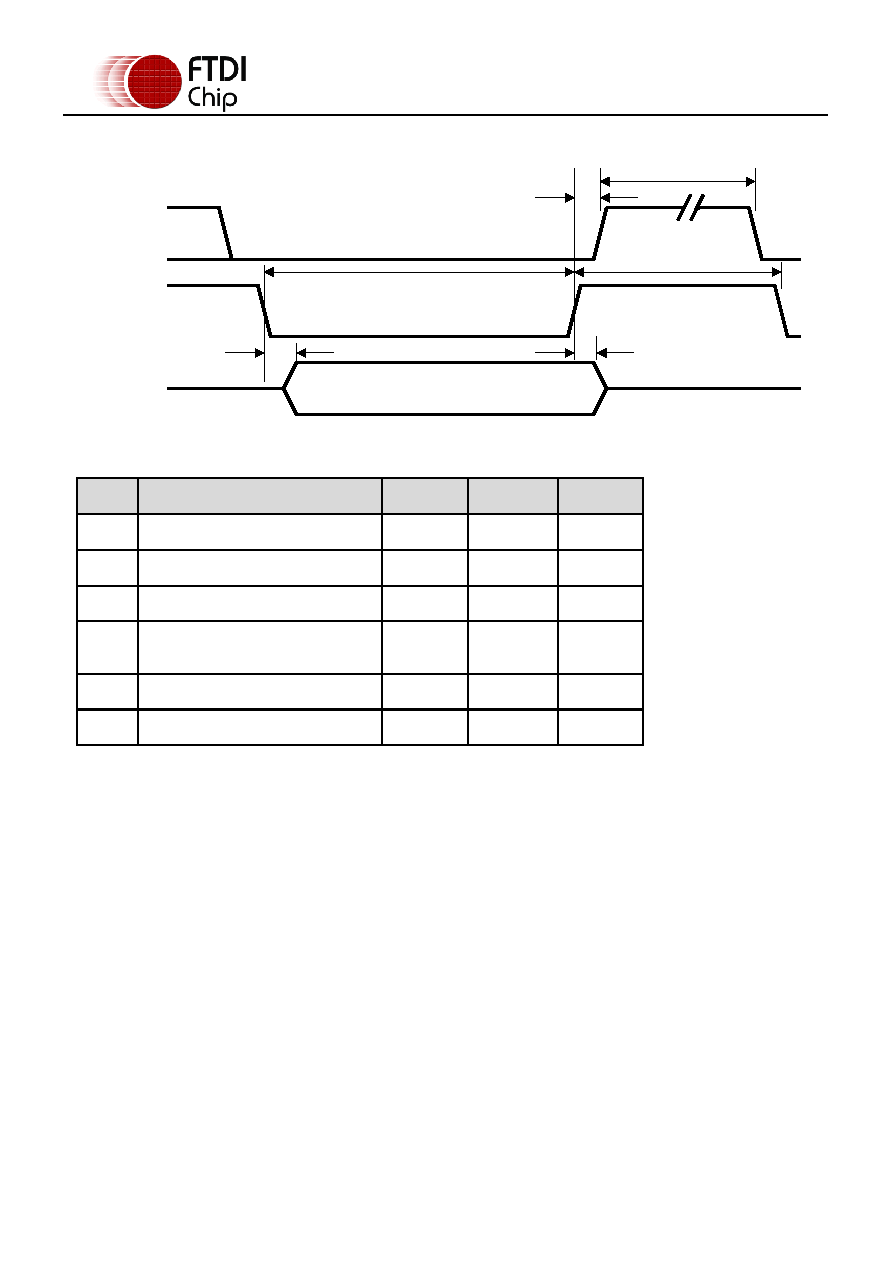

3.6 FT240X FIFO READ Timing Diagrams
Figure 3.3 FIFO Read Cycle
Time
Description
Minimum
Maximum Unit
T1
RD# Active Pulse Width
50
-
ns
T2
RD# to RD# Pre-Charge Time
50 + T6
-
ns
T3
RD# Active to Valid Data*
20
50
ns
T4
Valid Data Hold Time from RD#
Inactive*
0
-
ns
T5
RD# Inactive to RXF#
0
25
ns
T6
RXF# Inactive After RD Cycle
80
-
ns
Table 3.10 FIFO Read Cycle Timings
*Load = 30pF
RXF#
RD#
D[7...0]
T3
T1
T5
T6
T2
T4
Valid Data
