FT240X USB 8-BIT FIFO IC Datasheet
Version 1.3
Document No.: FT_000626 Clearance No.:
FTDI# 259
9 Package Parameters
The FT240X is available in two different packages. The FT240XS is the SSOP-24 option and the FT240XQ
is the QFN-24 package option. The solder reflow profile for both packages is described in Section 9.5.
9.1 SSOP-24 Package Mechanical Dimensions

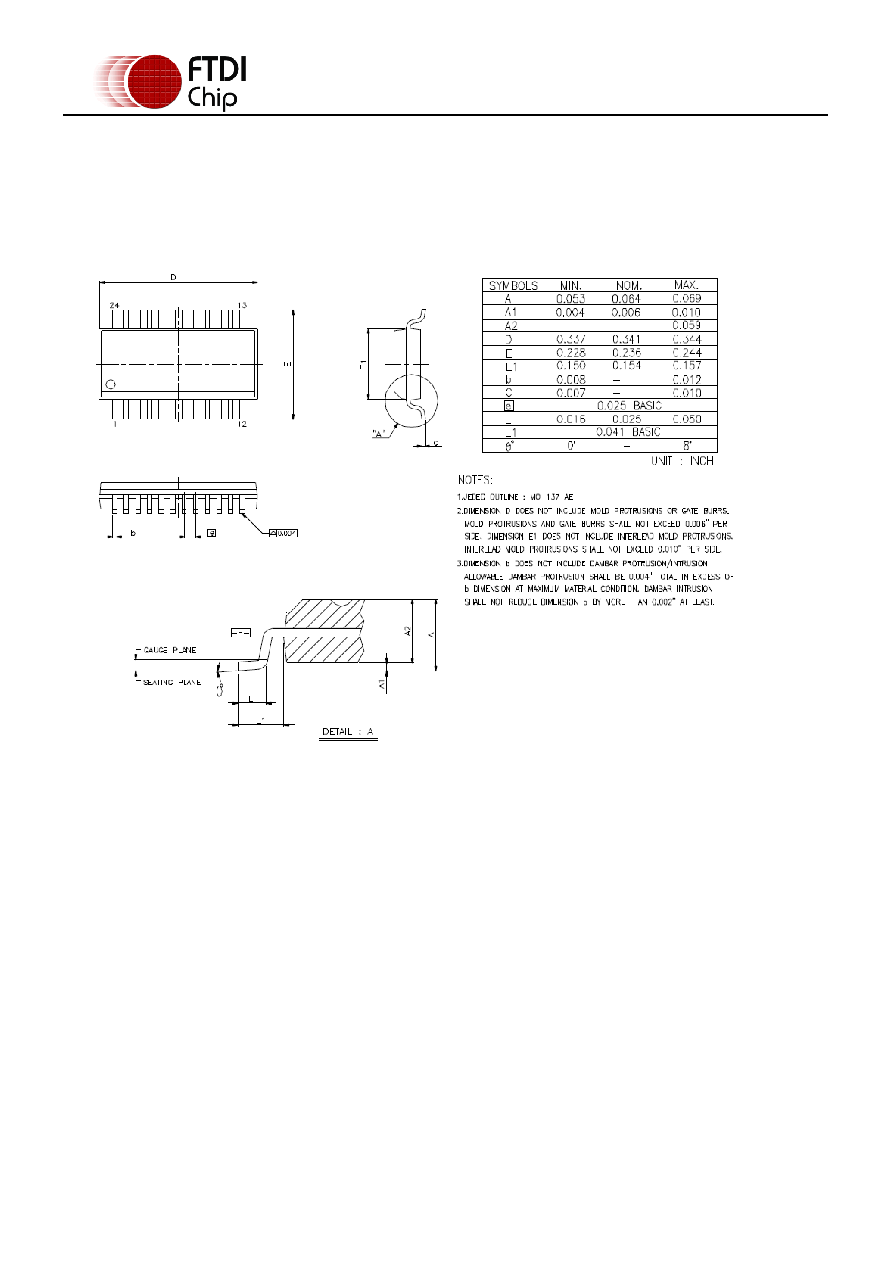

Figure 9.1 SSOP-24 Package Dimensions
The FT240XS is supplied in a RoHS compliant 24 pin SSOP package. The package is lead (Pb) free and
uses a ‘green’ compound. The package is fully compliant with European Union directive 2002/95/EC.
This package is nominally 8.66mm x 3.91 mm body (8.66mm x 5.99mm including pins). The pins are on
a 0.635 mm pitch. The above mechanical drawing shows the SSOP-24 package.
The date code format is YYXX where XX = 2 digit week number, YY = 2 digit year number.
The code XXXXXXXXXXXX is the manufacturing LOT code.
