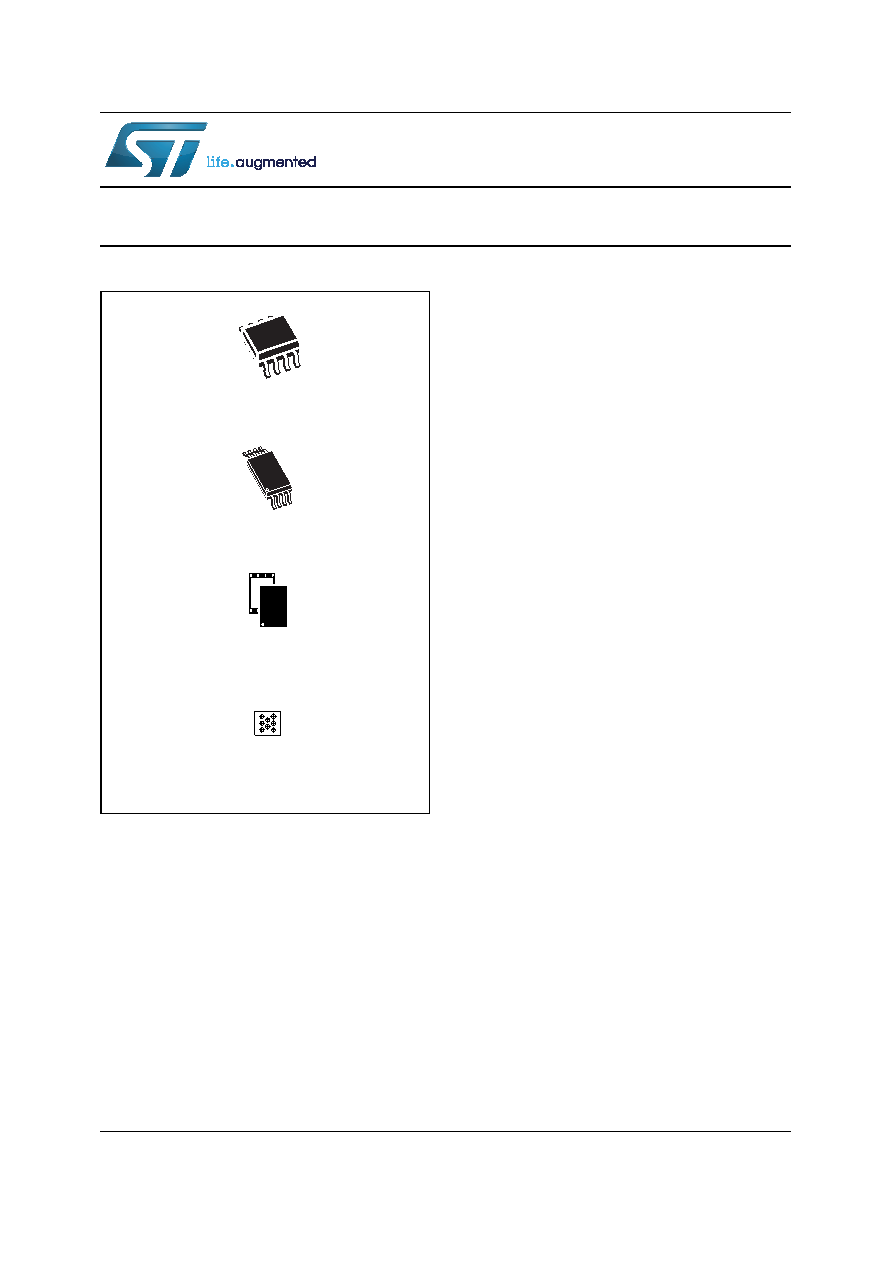

This is information on a product in full production.

June 2013

DocID11124 Rev 21

1/50

1

M95512-W M95512-R

M95512-DR M95512-DF

512-Kbit serial SPI bus EEPROM

Datasheet

- production data

Features

• Compatible with the Serial Peripheral Interface

(SPI) bus

• Memory array

– 512 Kb (64 Kbytes) of EEPROM

– Page size: 128 bytes

• Write

– Byte Write within 5 ms

– Page Write within 5 ms

• Additional Write lockable page (Identification

page)

• Write Protect: quarter, half or whole memory

array

• High-speed clock: 16 MHz

• Single supply voltage:

– 2.5 V to 5.5 V for M95512-W

– 1.8 V to 5.5 V for M95512-R and M95512-

DR

– 1.7 V to 5.5 V for M95512-DF

• Operating temperature range: from -40°C up to

+85°C

• Enhanced ESD protection

• More than 4 million Write cycles

• More than 200-year data retention

• Packages

– RoHS compliant and halogen-free

(ECOPACK®)

SO8 (MN)

150 mil width

TSSOP8 (DW)

169 mil width

WLCSP (CS)

UFDFPN8

2 x 3 mm (MC)

(preliminary data)

www.st.com
