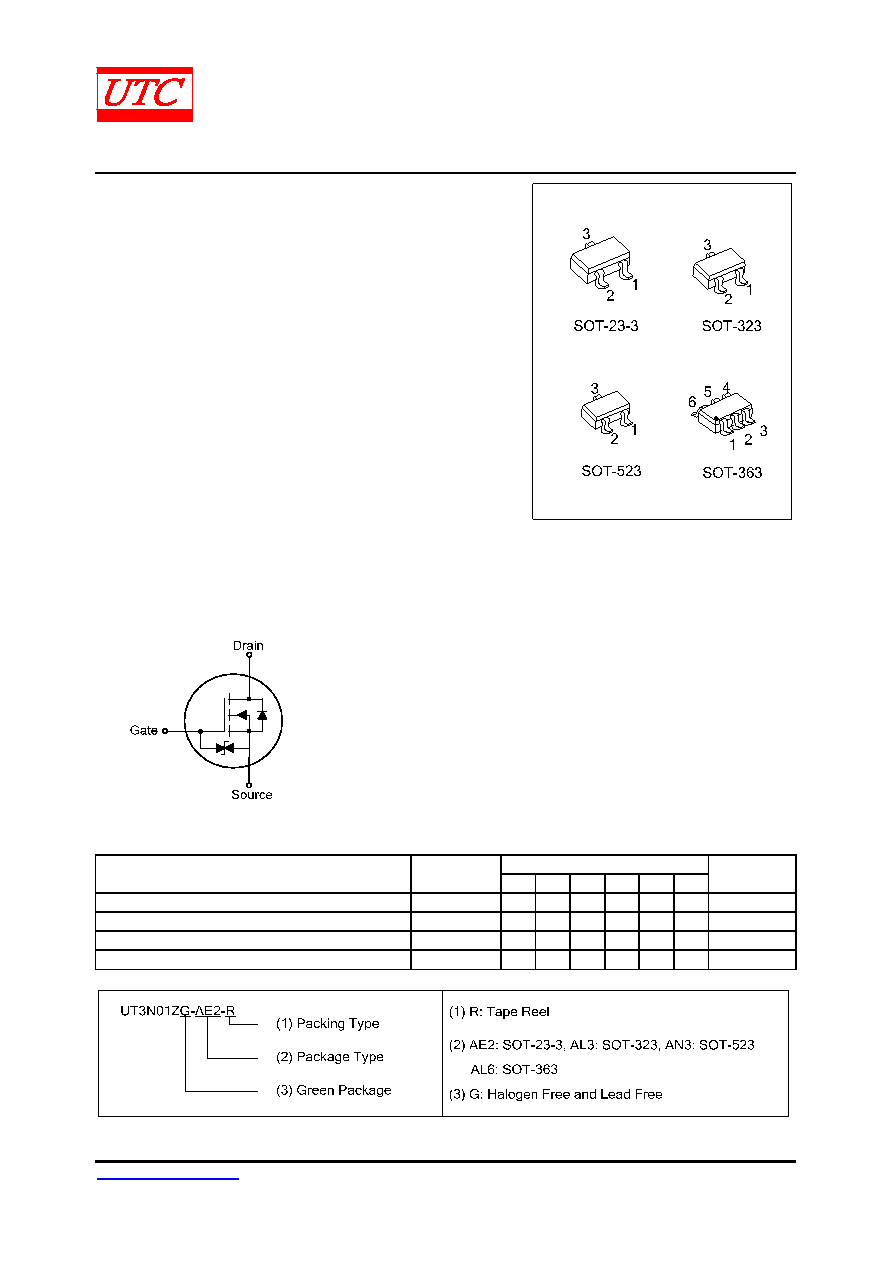

UNISONIC TECHNOLOGIES CO., LTD

UT3N01Z

Power MOSFET

www.unisonic.com.tw

1 of 6

QW-R502-285.I

N-CHANNEL SILICON MOSFET

GENERAL-PURPOSE

SWITCHING DEVICE

APPLICATIONS



DESCRIPTION

The UT3N01Z uses UTC advanced technology to provide

excellent RDS(ON), low gate charge and operation with low gate

voltages. This device’s general purpose is for switching device

applications.



FEATURES

* RDS(ON) < 2.0Ω @ VGS=4V, ID=80mA

RDS(ON) < 3.0Ω @ VGS=2.5V, ID=40mA

RDS(ON) < 12.8Ω @ VGS=1.5V, ID=10mA

* Ultra low gate charge ( typical 5 nC )

* Low reverse transfer capacitance ( CRSS = typical 7.5 pF )

* Fast switching capability

* Enhanced ESD capability



SYMBOL



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

12345

6

UT3N01ZG-AE2-R

SOT-23-3

S

G

D

-

Tape Reel

UT3N01ZG-AL3-R

SOT-323

S

G

D

-

Tape Reel

UT3N01ZG-AN3-R

SOT-523

S

G

D

-

Tape Reel

UT3N01ZG-AL6-R

SOT-363

S1

G1

D2

S2

G2

D1

Tape Reel

Note: Pin Assignment: G: Gate

D: Drain

S: Source
