2-SIP datasheet(3/4 Pages) AMPHENOL

3 / 4 page

Electrical Specification

Supply Voltage*1

1 min 2.3V ~ max 5.5V

Supply Current (IDD)

750 µA (typical)

Sleep Current (Isleep)*2

0.6 µA (typical)

*1. Lower than 2.7V supply voltage may increase

the accuracy tolerance of the Temperature.

*2. At -40 ~85°C

Environmental

Operating Temperature - 40 ~ 125°C

Operating Humidity

0~100%RH (non

condensing)

Absolute Maximum Rating

Parameter

Min

Max

Supply Voltage

(VDD)

-0.3V

6.0V

Storage Temp

-55°C

150°C

Junction Temp

-55°C

150°C

Soldering Information

StandardorIRSolderReflow.

Tp:260°C,tp:40sec.(qualifyPbfreeprofile)For

manual soldering, contact time should not exceed 4

seconds at up to 350°C.

Shipping

Tray :

100 ea

Inner Box :

500 ea

Out Box :

5,000 ea

Standard Digital (I²C ) Output :

Factory setting is Sleep Mode and calibrated at

3.3V.

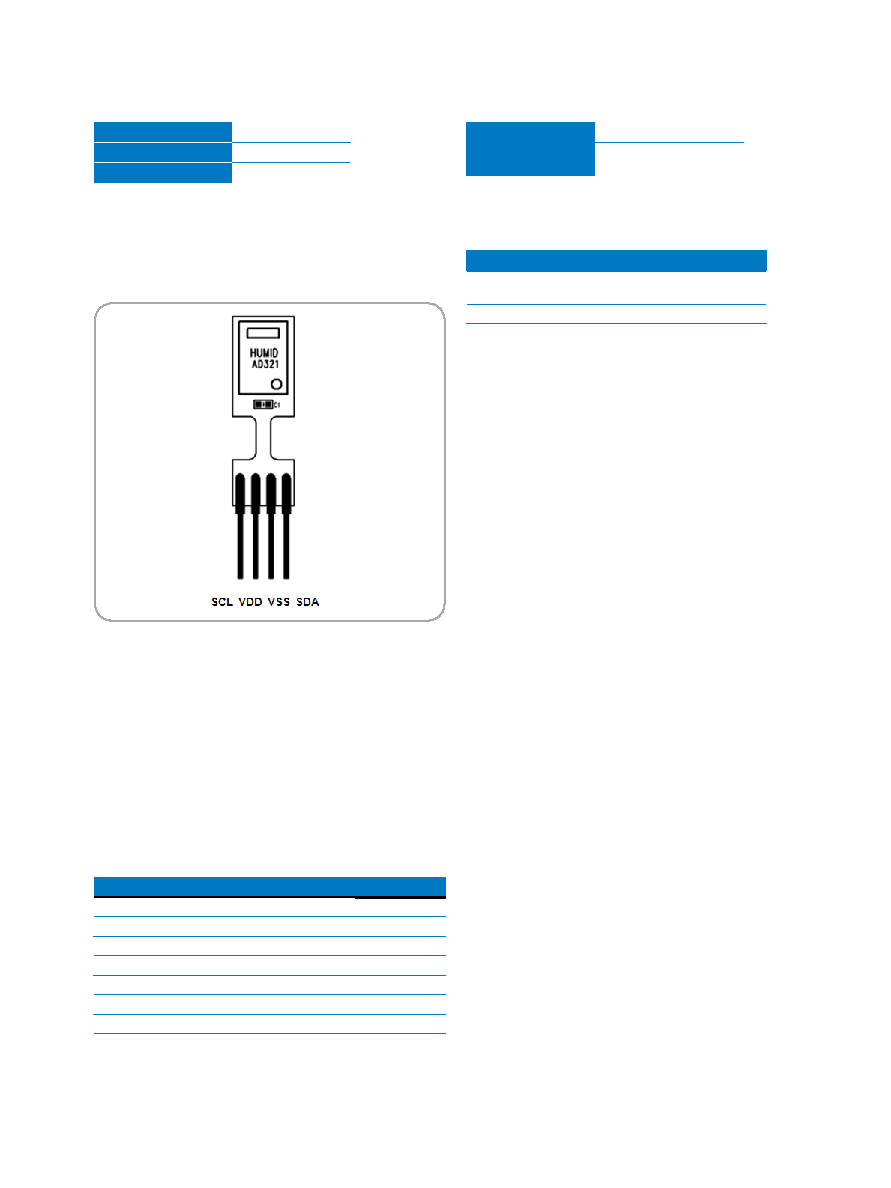

Pin Connection

Package Contents

ChipCap® 2-SIP consists of a ChipCap 2 and a

V-core capacitor soldered on the top of a FR4

substrate. Lead Pins are made of Cu, Sn, P alloy

and all parts are fully RoHS and REACH compliant.

Ordering Information

Output

Accuracy

VVD

Mode

Part Number

I2C

3.3 V

Update

CC2D23-SIP

I2C

5 V

Update

CC2D25-SIP

I2C

3.3 V

Sleep

CC2D23S-SIP

I2C

5 V

Sleep

CC2D25S-SIP

I2C

3.3 V

Update

CC2D33-SIP

I2C

5 V

Update

CC2D35-SIP

I2C

3.3 V

Sleep

CC2D33S-SIP

I2C

5 V

Sleep

CC2D35S-SIP

*.Chip on Board is 100 nF capacitor for Vcore.
