Document No.: FT_000589

FT313H USB2.0 HS Host Controller Datasheet Version 1.2

Clearance No.: FTDI# 318

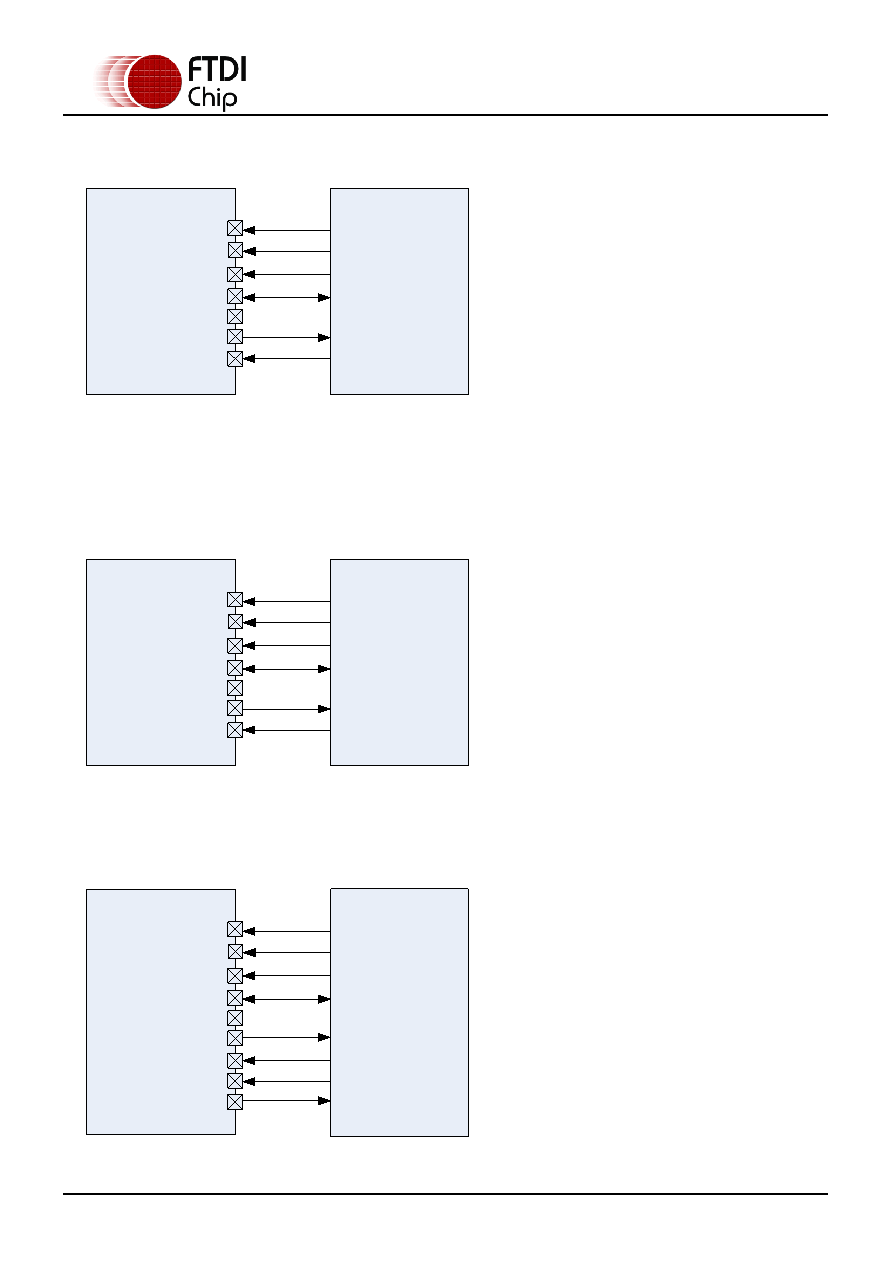

7.1.3 16-Bit NOR asynchronous bus interface

FT313H

OE_N/RE_N/RD_N

CS_E/CS_N

WE_N/WR_N

AD<15:0>

A<7:0>

INT

ADV_N/ALE

Microcontroller

CS_N

OE_N

WE_N

AD<15:0>

INT

ADV_N

16-Bit NOR uses AD<15:0> signals as address and data bus. Unused A<7:0> address must be

terminated with external 10k ohm pull-down resistor.

If the microcontroller has no AD<0> pin for 16-bit wide devices, the unused AD<0> signal with must be

terminated with an external 10k ohm pull-down resistor.

7.1.4 8-Bit NOR asynchronous bus interface

FT313H

OE_N/RE_N/RD_N

CS_E/CS_N

WE_N/WR_N

AD<7:0>

A<7:0>

INT

ADV_N/ALE

Microcontroller

CS_N

OE_N

WE_N

AD<7:0>

INT

ADV_N

8-Bit NOR uses AD<7:0> signals as address and data bus. The unused high data bus AD<15:8> and

A<7:0> address bus must be terminated with external 10k ohm pull-down resistors.

7.1.5 16-Bit General Multiplex asynchronous bus interface

FT313H

OE_N/RE_N/RD_N

CS_E/CS_N

WE_N/WR_N

AD<15:0>

A<7:0>

INT

DACK

DREQ

Microcontroller

CS_N

RE_N

WE_N

AD<15:0>

INT

DACK

DREQ

ADV_N/ALE

ALE

16-Bit General Multiplex uses AD<15:0> signals as address and data bus. Unused A<7:0> address must

be terminated with external 10k ohm pull-down resistor.
