Functional description
STSPIN820
22/29
DocID031065 Rev 2
5.5
Thermal shutdown
The device embeds circuitry protecting it from the overtemperature condition.
When the thermal shutdown temperature is reached the power stage is disabled and the
EN\FAULT input is forced low through the integrated open-drain MOSFET (refer to
Figure 11).
The protection and the EN\FAULT output are released when the IC temperature returns
below a safe operating value (TjSD - TjSD,Hyst).

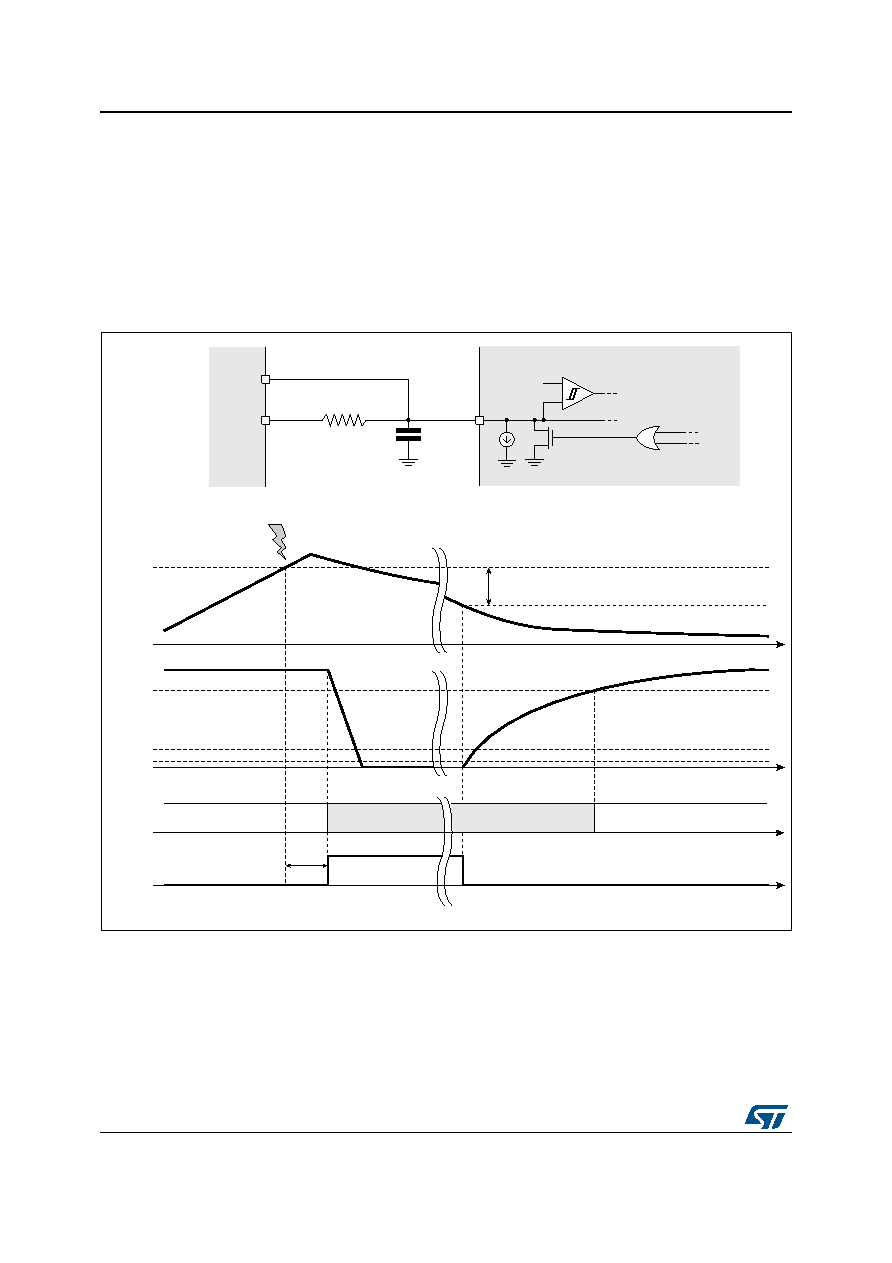

Figure 11. Thermal shutdown management
