MODEL: R8-NM1
R8-NM1 SPECIFICATIONS
ES-9722 Rev.5 Page 2/10
http://www.m-system.co.jp/
connector for internal bus, supplied to each I/O module.
Power output current consumption must be under
operational current.)
Operating temperature: -10 to +55°C (14 to 131°F)
Operating humidity: 30 to 90 %RH (non-condensing)
Atmosphere: No corrosive gas or heavy dust
Mounting: DIN rail
Weight: 160 g (0.35 lb)
PERFORMANCE
Insulation resistance: ≥ 100 MΩ with 500 V DC
Dielectric strength: 1500 V AC @ 1 minute
(Modbus to internal bus or internal power to power input to
exc. supply to FE1)
STANDARDS & APPROVALS
EU conformity:
EMC Directive
EMI EN 61000-6-4
EMS EN 61000-6-2
RoHS Directive
EN 50581

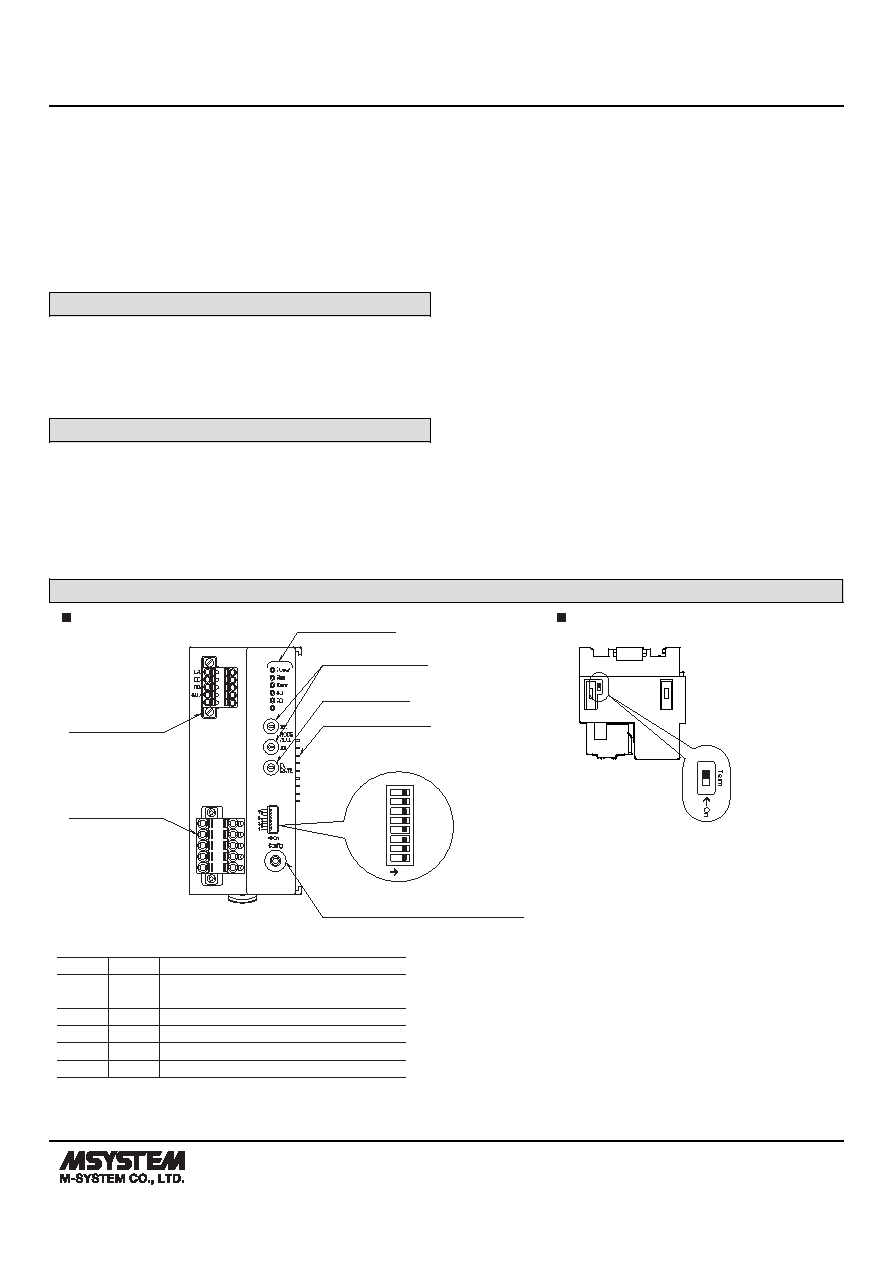

EXTERNAL VIEW
Status Indicator LED
Miniature Jack Connector for Configuration
Modbus Connector
Connector for
Power Supply and
Excitation Supply
Function Setting
DIP SW
8
7
6
5
4
3
2
1
FRONT VIEW
TOP VIEW
On
Terminator
DIP SW
Baud Rate Setting
Rotary SW
Node Address Setting
Rotary SW
Internal Bus Connector
FE
■ STATUS INDICATOR LED
ID
COLOR
FUNCTION
Power
Green
ON when the internal 5V power is in normal
status.
Run
Green
ON with normal communication *1
Error
Red
ON when abnormal data is received.
SD
Green
ON with data transmitting
RD
Green
ON with data receiving
*1. Run LED turns off when no command is received from
the master device.
