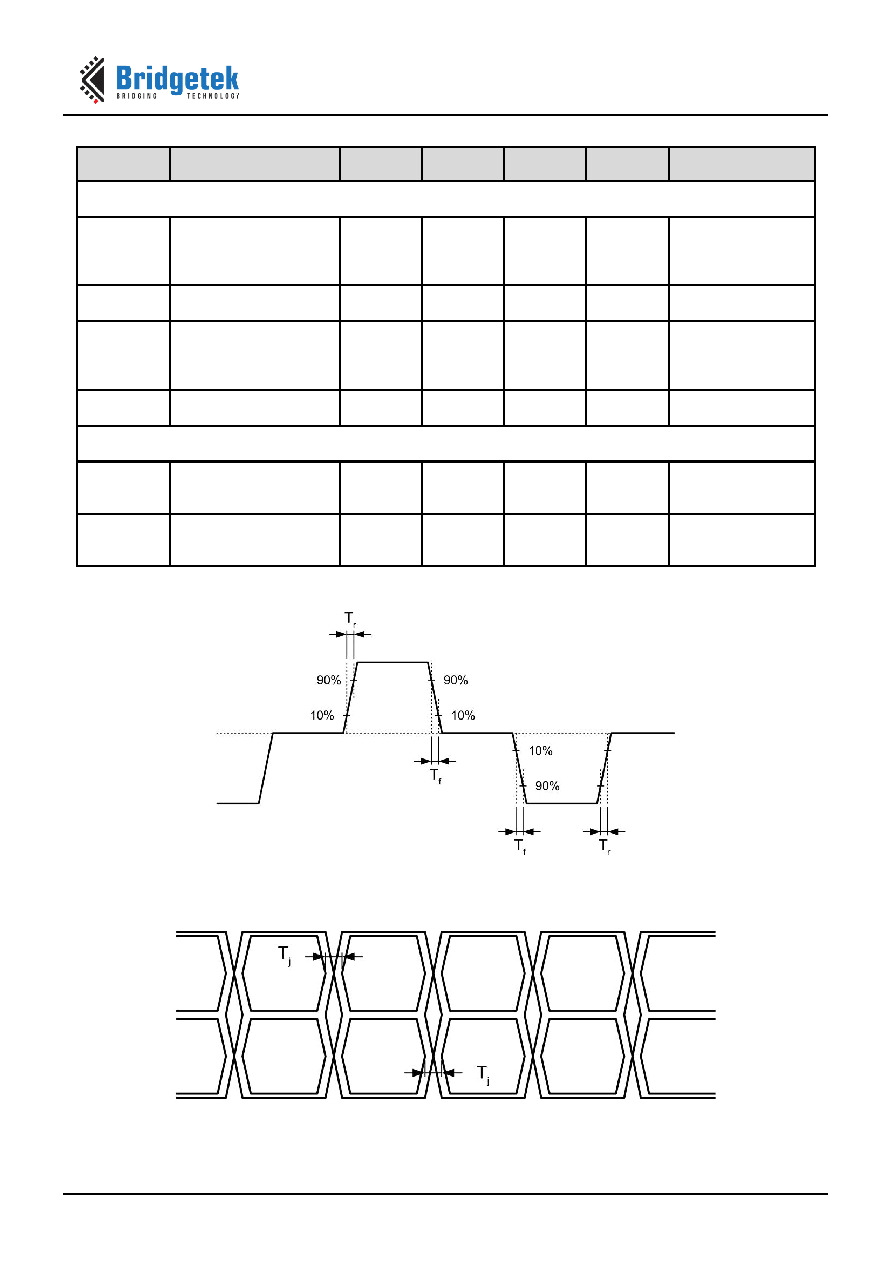

43 / 67 page  Copyright © Bridgetek Pte Ltd 43 FT900 /1/2/3 Revision C Embedded Microcontroller Datasheet Version 1.0 Document No. BRT_000172 Clearance No.: BRT#087 Analog Ethernet I/O pins dynamic characteristics Parameter Description Minimum Typical Maximum Units Conditions Transmitter characteristics 2 x Vtxa Peak-to-peak differential output voltage 1.9 2.0 2.1 V 100Base-TX mode Tr / Tf Signal rise/fall time 3.0 4.0 5.0 ns 100Base-TX mode Tj Output jitter - - 1.4 ns 100Base-TX mode, scrambled idle signal Vtxov Overshoot - - 5.0 % 100Base-TX mode Receiver characteristics - Common-mode input voltage 2.97 3.3 3.63 V - - Error-free cable length 100 - - meter - Table 5-11 - Analog I/O pins (TXON/TXOP, RXIN/RXIP) characteristics Figure 5-2 - 100Base-TX Tr/f Timing Figure 5-3 - 100Base-TX Jitter Timing |
|
