Copper Cabling
1.1.5
Overview
Description
Performance
Cat 5e at 200 MHz and Cat 6 at 300 MHz
Product
Attenuation
NEXT
ACR
PS NEXT
ELFEXT
PS ELFEXT
Return Loss
(dB/100m)
(dB)
(dB)
(dB)
(dB/100m)
(dB/100m)
(dB)
Cat 5e UTP
28
37
9
34
29
26
21
Cat 6 UTP
34
40
6
37
35
32
20
Cat 5e FTP
28
37
9
34
29
26
21
Cat 6 FTP
34
40
6
37
35
32
20
Cat 6 FFTP
30
32
2
----

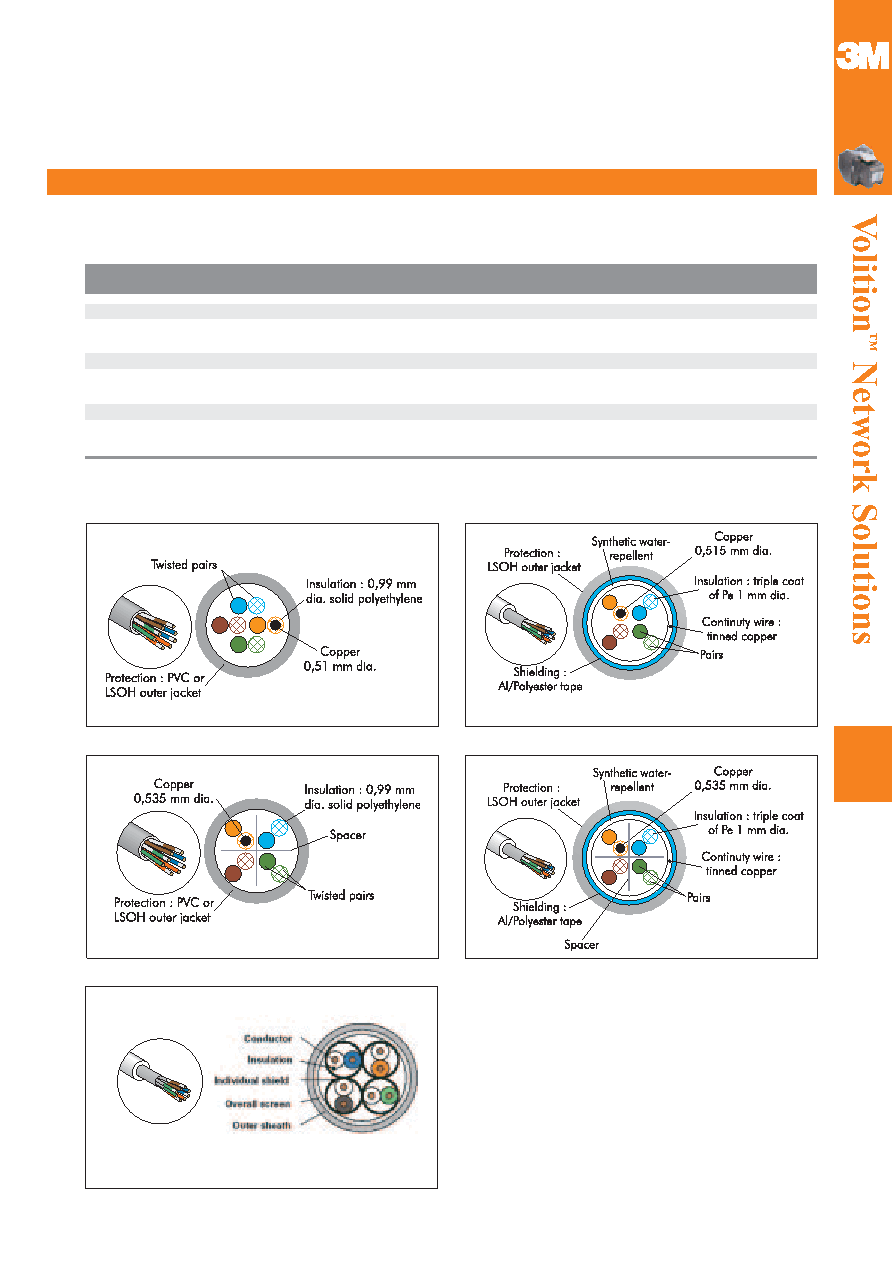

Cable Structure - Twisted Pairs Cables
UTP
=
Unshielded Twisted Pairs
FTP
=
Foil Twisted Pairs
FFTP
=
Foil / Foil Twisted Pairs
SFTP
=
Shielded & Foil Twisted Pairs
UTP Category 5e
FTP Category 5e
UTP Category 6
FFTP Category 6
FTP Category 6
