Data Sheet
AD4052/AD4058
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 14 of 66

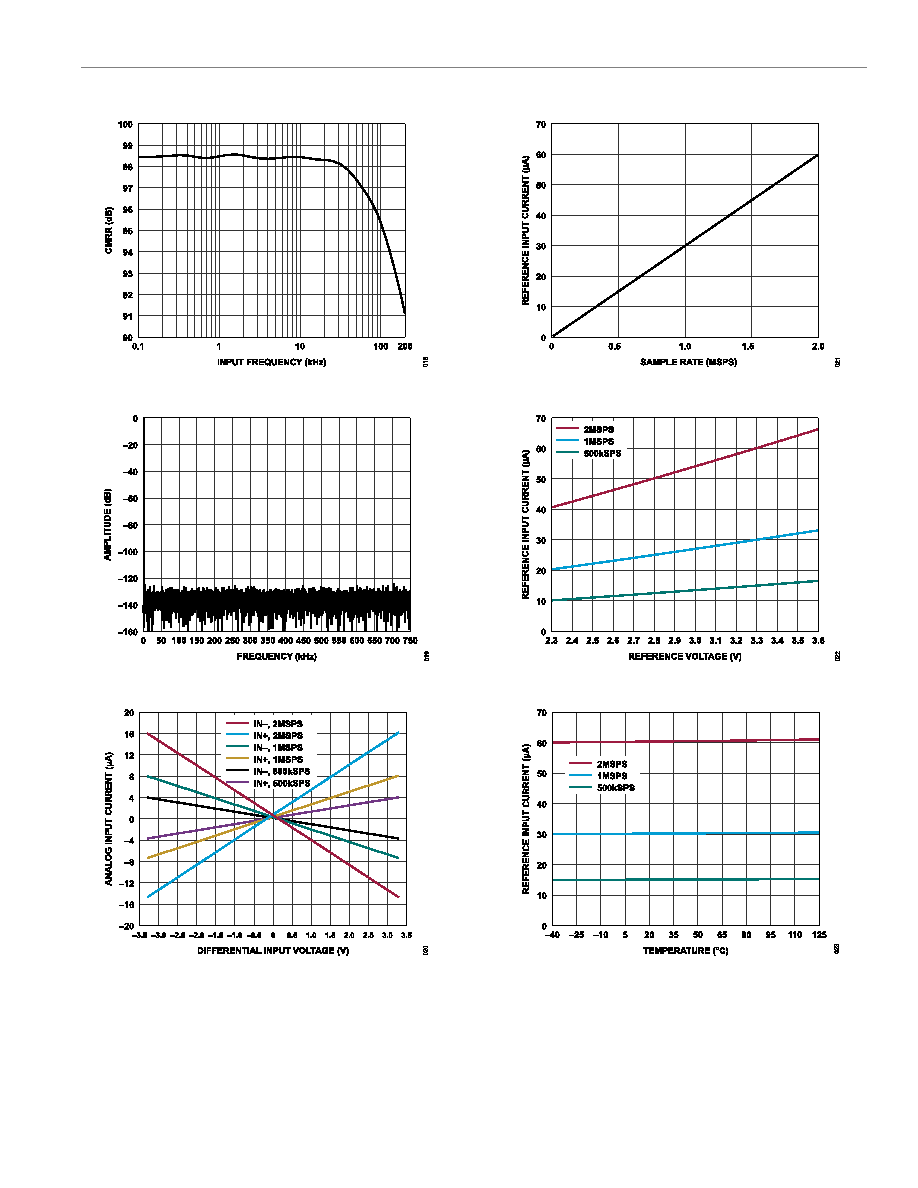

Figure 18. Common-Mode Rejection Ratio (CMRR) vs. Input Frequency
Figure 19. FFT, fS = 1.5 MSPS, fIN = 1 kHz
Figure 20. Analog Input Current vs. Differential Input Voltage
Figure 21. Reference Input Current vs. Sample Rate
Figure 22. Reference Input Current vs. Reference Voltage
Figure 23. Reference Input Current vs. Temperature
