Data Sheet
AD4052/AD4058
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 16 of 66

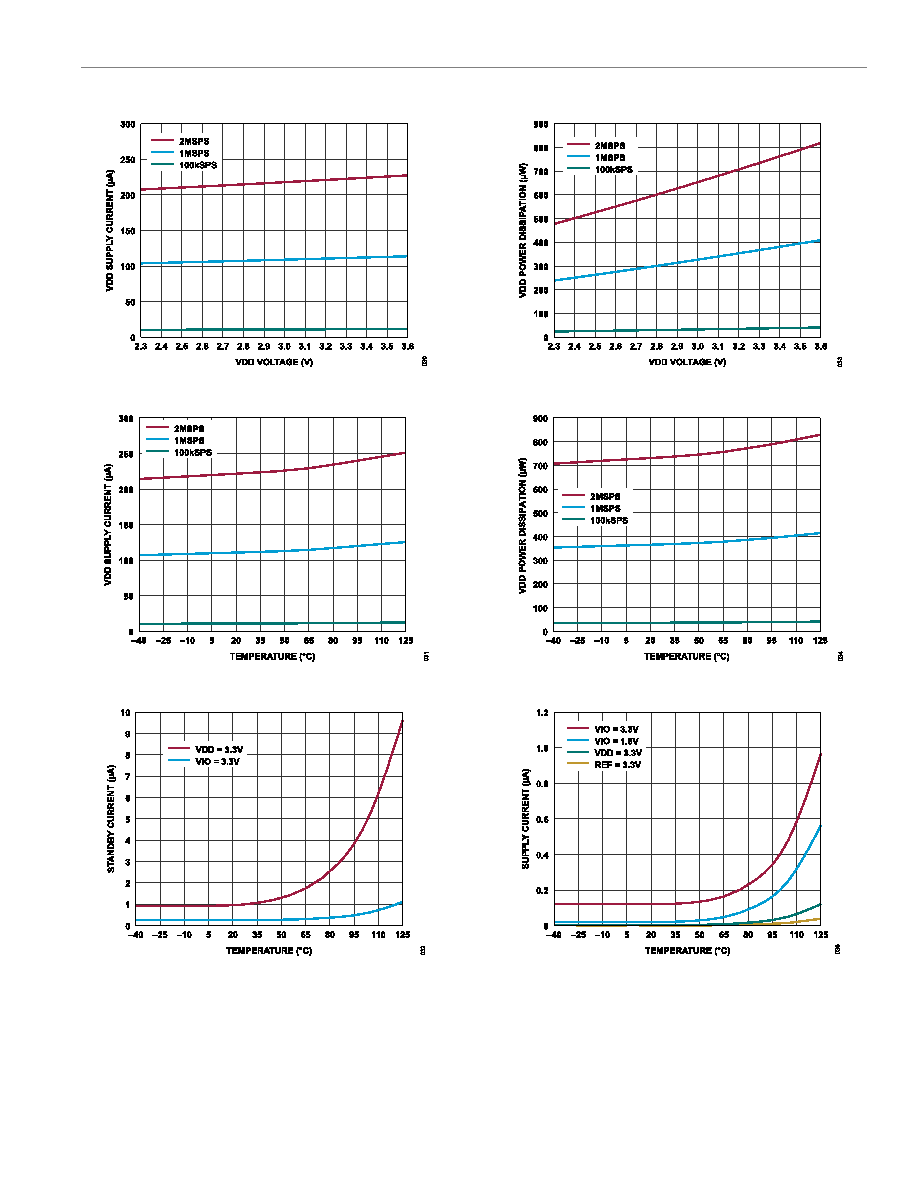

Figure 30. VDD Supply Current vs. VDD Voltage (Autonomous Modes)
Figure 31. VDD Supply Current vs. Temperature (Autonomous Modes)
Figure 32. Standby Current vs. Temperature
Figure 33. VDD Power Dissipation vs. VDD Voltage (Autonomous Modes)
Figure 34. VDD Power Dissipation vs. Temperature (Autonomous Modes)
Figure 35. Supply Current (Sleep Mode) vs. Temperature
