AD4052BCPZ-R2 Datasheet(PDF) 15 Page - Analog Devices

Part # AD4052BCPZ-R2
Description  Compact, Low Power, 16-Bit, 2 MSPS/500 kSPS Easy Drive SAR ADC
PDF  66 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  AD [Analog Devices]
Direct Link  http://www.analog.com
Logo AD - Analog Devices

AD4052BCPZ-R2 Datasheet(HTML) 15 Page - Analog Devices

Back Button AD4052BCPZ-R2 Datasheet HTML 11Page - Analog Devices AD4052BCPZ-R2 Datasheet HTML 12Page - Analog Devices AD4052BCPZ-R2 Datasheet HTML 13Page - Analog Devices AD4052BCPZ-R2 Datasheet HTML 14Page - Analog Devices AD4052BCPZ-R2 Datasheet HTML 15Page - Analog Devices AD4052BCPZ-R2 Datasheet HTML 16Page - Analog Devices AD4052BCPZ-R2 Datasheet HTML 17Page - Analog Devices AD4052BCPZ-R2 Datasheet HTML 18Page - Analog Devices AD4052BCPZ-R2 Datasheet HTML 19Page - Analog Devices Next Button
Zoom Inzoom in Zoom Outzoom out
 15 / 66 page
background image
Data Sheet
AD4052/AD4058
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. B | 15 of 66

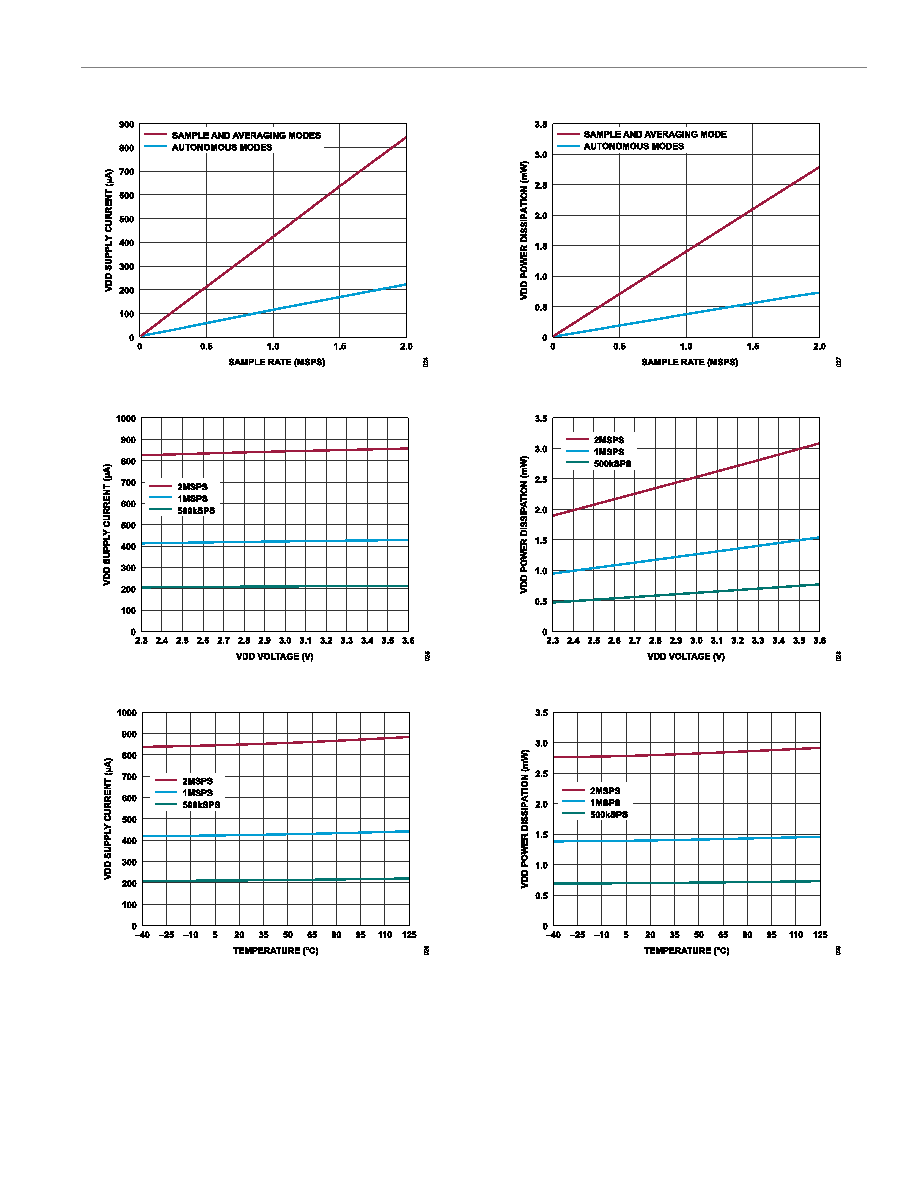

Figure 24. VDD Supply Current vs. Sample Rate
Figure 25. VDD Supply Current vs. VDD Voltage
Figure 26. VDD Supply Current vs. Temperature
Figure 27. VDD Power Dissipation vs. Sample Rate
Figure 28. VDD Power Dissipation vs. VDD Voltage
Figure 29. VDD Power Dissipation vs. Temperature
