Data Sheet
ADMV8809
TYPICAL PERFORMANCE CHARACTERISTICS
analog.com
Rev. A | 21 of 55
BYPASS CONFIGURATION DATA

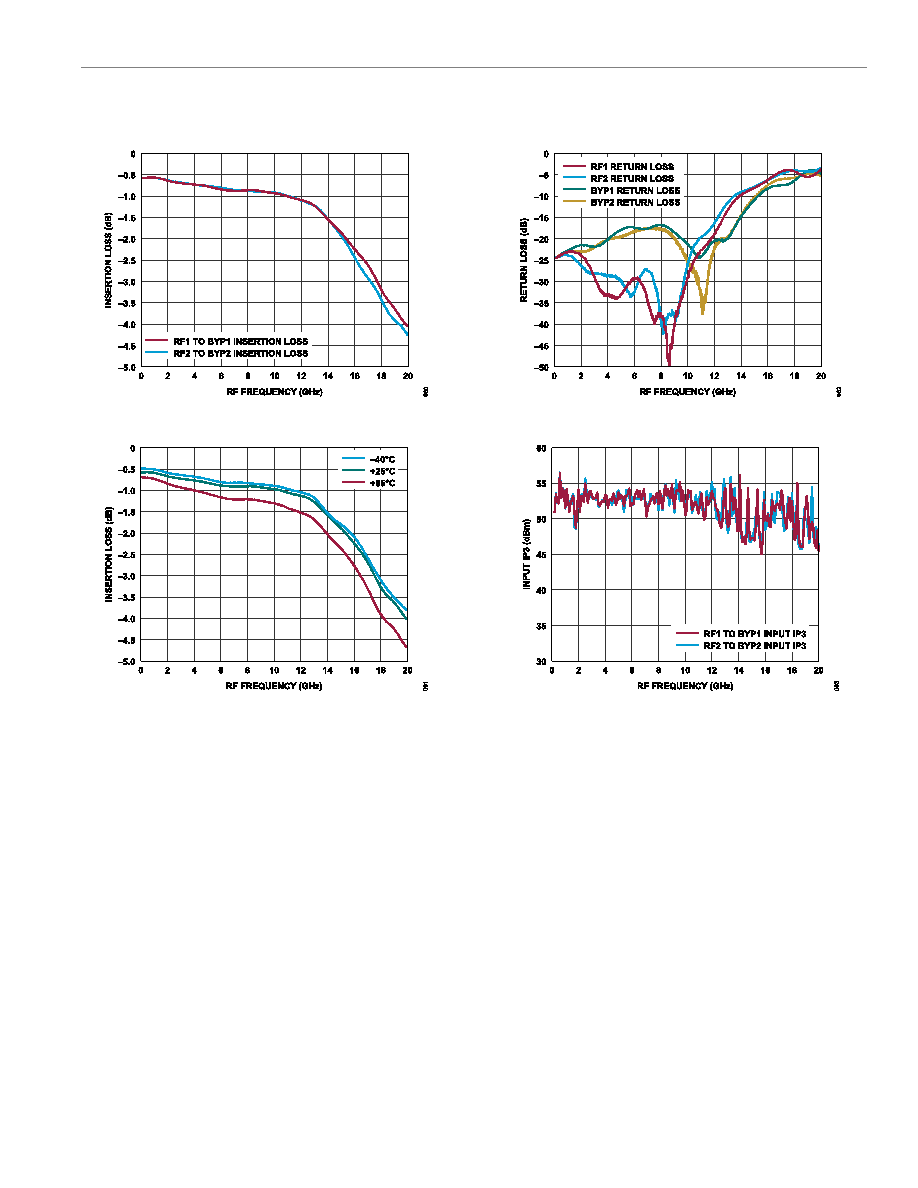

Figure 60. Insertion Loss vs. RF Frequency
Figure 61. Insertion Loss vs. RF Frequency in Various Temperatures
Figure 62. Input and Bypass Return Loss vs. RF Frequency
Figure 63. Input IP3 vs. RF Frequency
