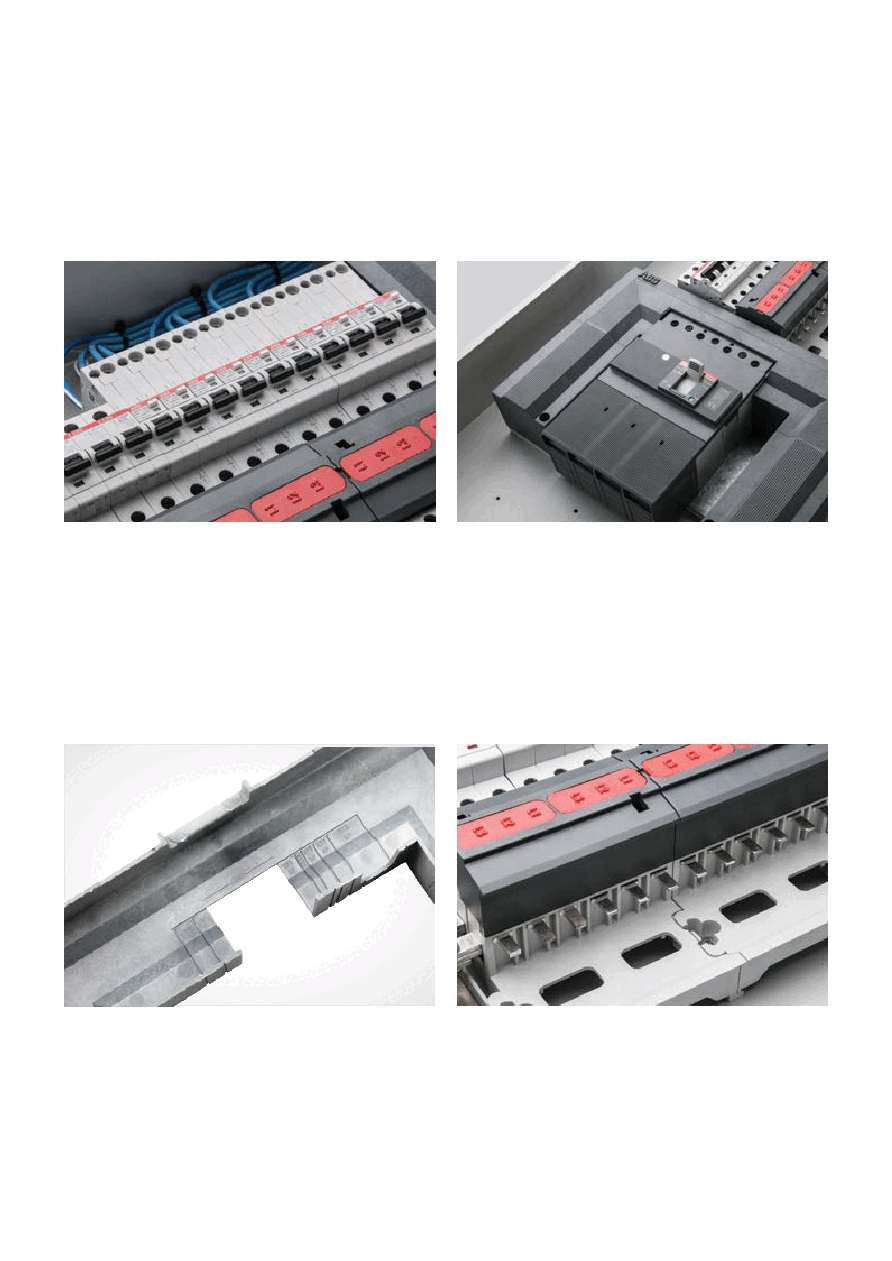

6 / 75 page  Board width Protecta Plus has been designed with a width of 450 mm, this combined with the reduced RCBO height of 115 mm gives the installer ample cable room either side of the board. Incoming shroud The shroud comes ready to accept a 125A 3P incoming devices. The easy break technology and clear indication on the rear allows the user to modify the shroud dependant upon requirements up to 250A 4P. One Solution All Protecta Plus boards come as standard with 250A main bars. This gives the user a full range from 125A 3P through to 250A 4P incoming options. 100A Outgoing ways The first two 3P outgoing ways are fitted with 3 mm branch copper to allow for 100A MCBs to be fitted. This allows for a maximum of 2 x 100A 3P or 6 x 100A 1P MCBs per board removing the need to move up to high performance boards or panel boards. — Protecta Plus The details make the difference 6 PROTEC TA PLUS MCB DIS TR IBUTION B OA R D 2 5 0A |
|
