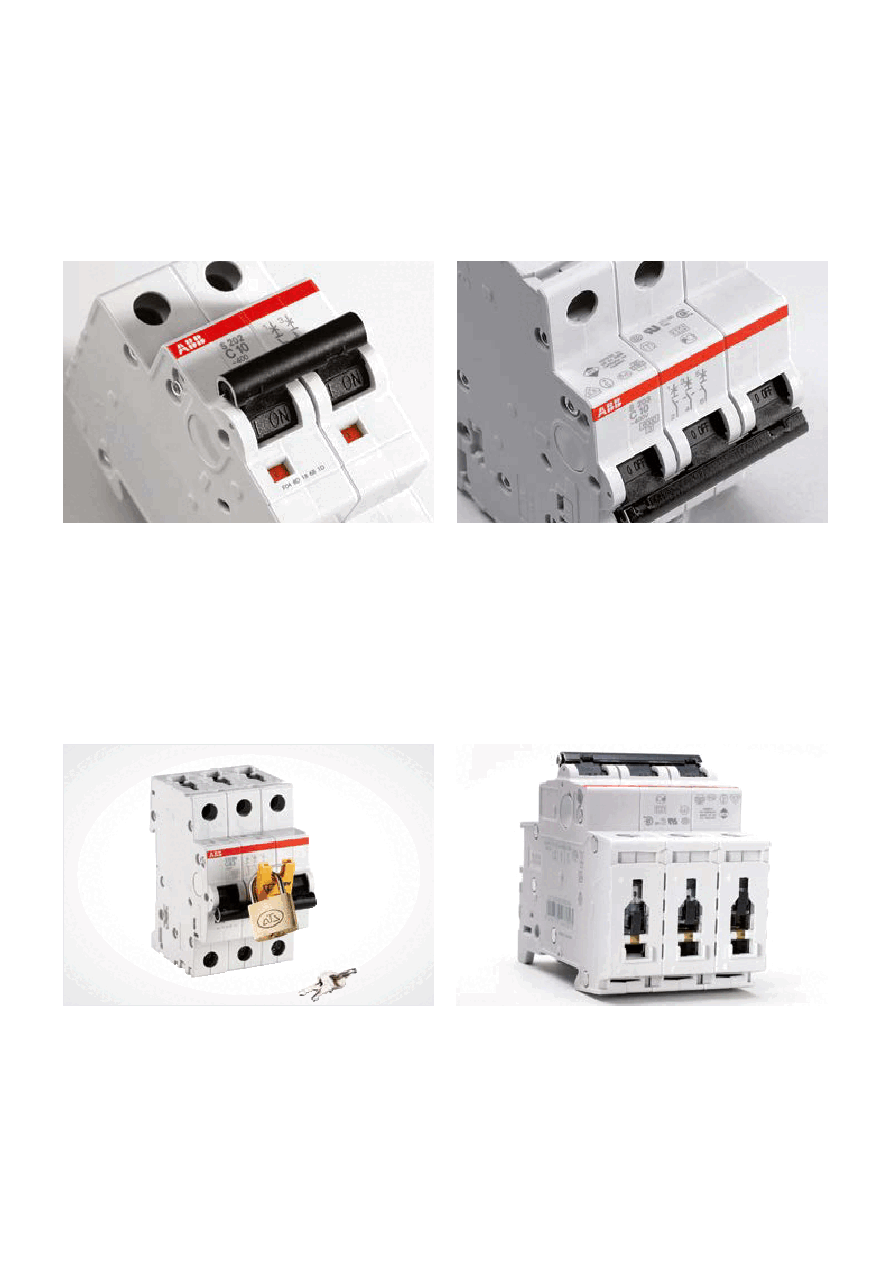

Contact position indication

All System pro M compact® MCBs are equipped with a con-

tact position indication (CPI) on the toggle. You can easily

identify, if the MCB is in the ON or OFF position – easy and

safe maintenance work is possible.

Locking device for MCBs and RCBOs

Preventing unauthorised or dangerous operation of the

operating lever. An adaptor makes it possible to block the

operating lever whether switched ON or OFF. The lever is

blocked with a padlock having a cross bar section of 3 mm

or, as the case may be, 6 mm max. For multi-pole devices,

one lock may be fitted per pole.

IP 20 - finger safe terminals

The System pro M compact® MCBs are equiped with

35 mm² + 10 mm² cylinder lift twin terminals, a well proven

and reliable technology - designed for sopisticated

industrial use.

Approvals printed on the dome

S 200 MCBs comply with IEC/EN 60898-1 and IEC/EN

60947-2 , as well as carrying the relevant approval marks for

the markets they are designed for. Certification markings

are printed on the dome of the MCB, making it possible to

see the markings when mounted.

K E Y M O D U L A R CO M P O N EN T S - M C B S 2 0 0 – S TAT E- O F -T H E- A R T S A FE T Y
