LM2931XX - LM2931AXX33 - LM2931AXX50 - LM2931BXX50
Typical characteristics
11/23
6
Typical characteristics
(unless otherwise specified CI = 0.1 µF, CO = 100 µF)

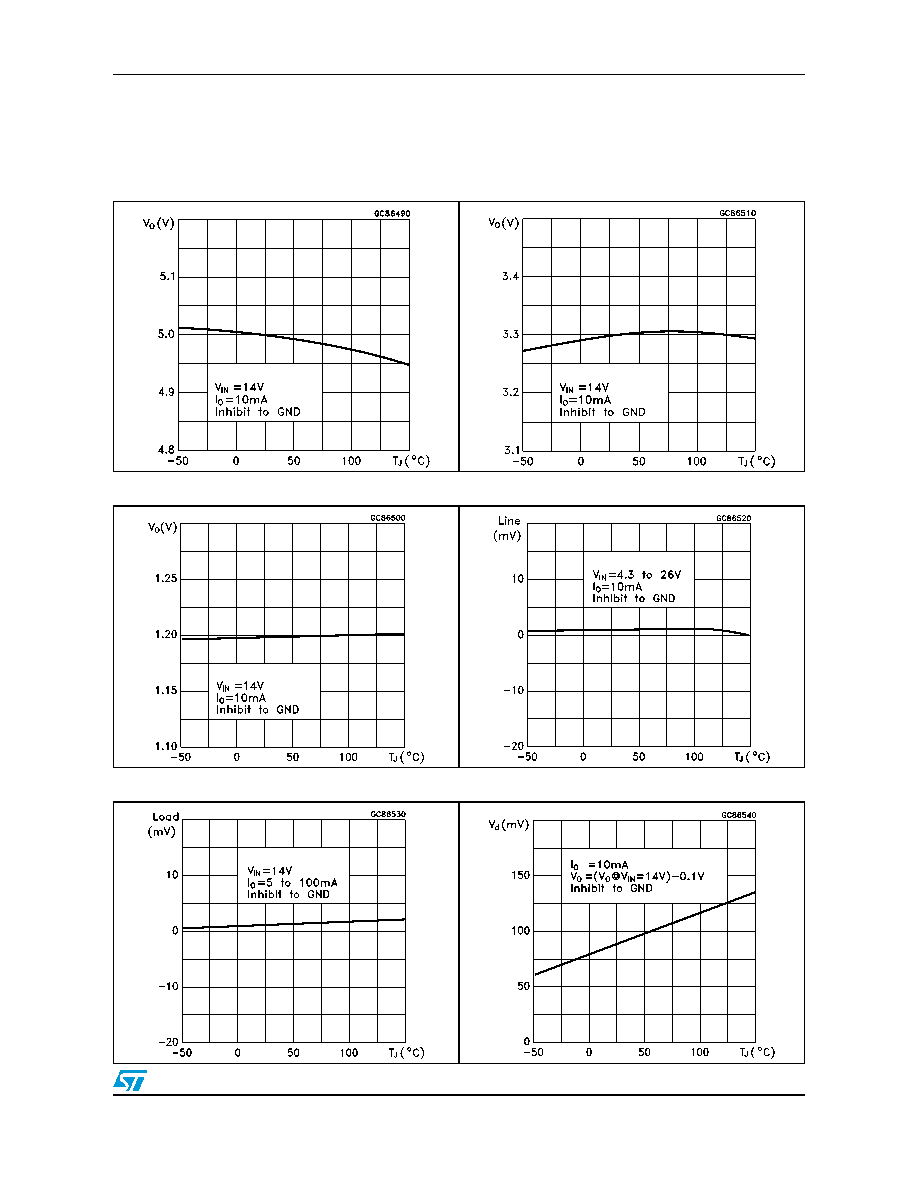

Figure 5.
Output voltage vs temperature
Figure 6.
Output voltage vs temperature
Figure 7.
Reference voltage vs temperature
Figure 8.
Line regulation vs temperature
Figure 9.
Load regulation vs temperature
Figure 10.
Dropout voltage vs temperature
