LM2931XX - LM2931AXX33 - LM2931AXX50 - LM2931BXX50
Typical characteristics
13/23

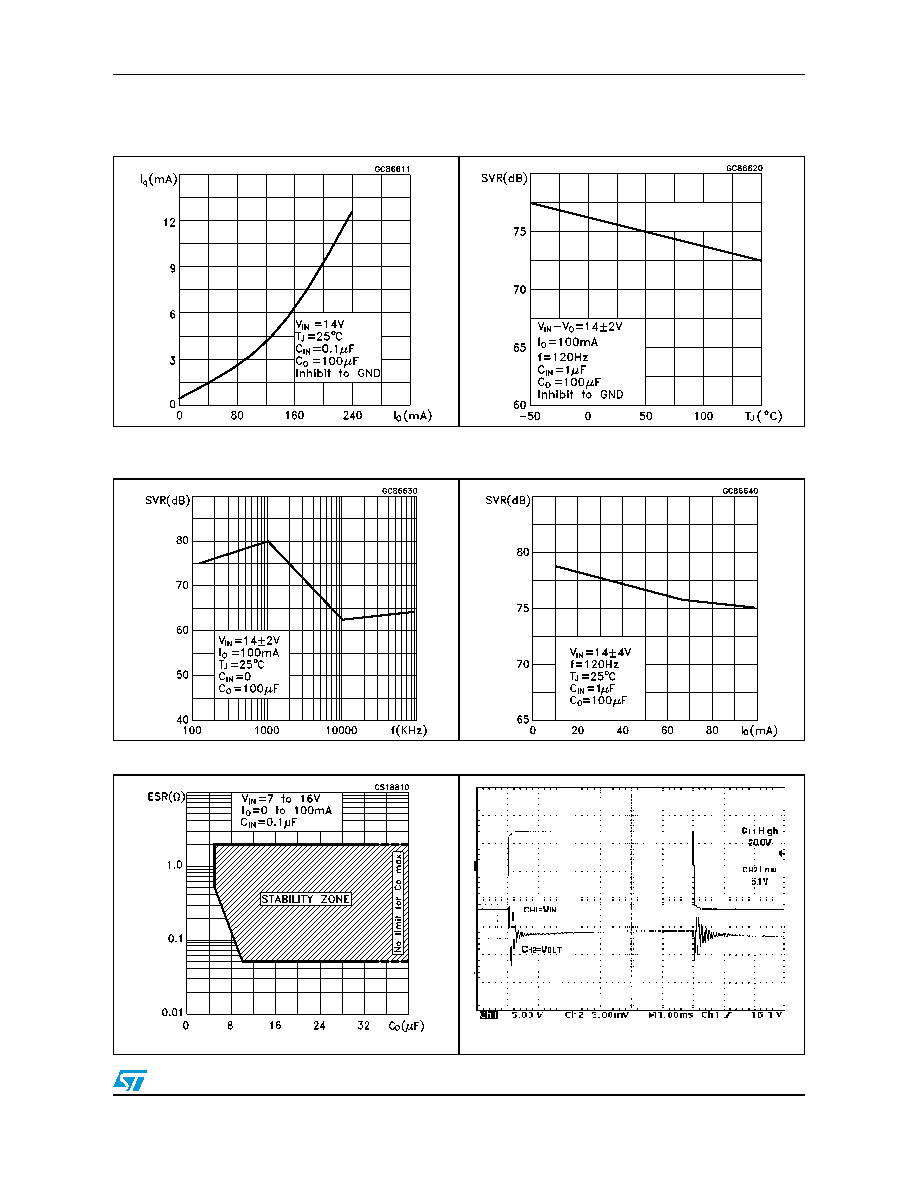

Figure 17.
Quiescent current vs output current Figure 18.
Supply voltage rejection vs
temperature
Figure 19.
Supply voltage rejection vs
frequency
Figure 20.
Supply voltage rejection vs output
current
Figure 21.
Stability vs CO
Figure 22.
Line transient
VI = 6 to 20 V, RL = 500 Ω, TJ = 25°C, CI = 0, CO = 100 µF,
Rise Fall-Time = 200 ns
