Typical characteristics
LM2931XX - LM2931AXX33 - LM2931AXX50 - LM2931BXX50
12/23

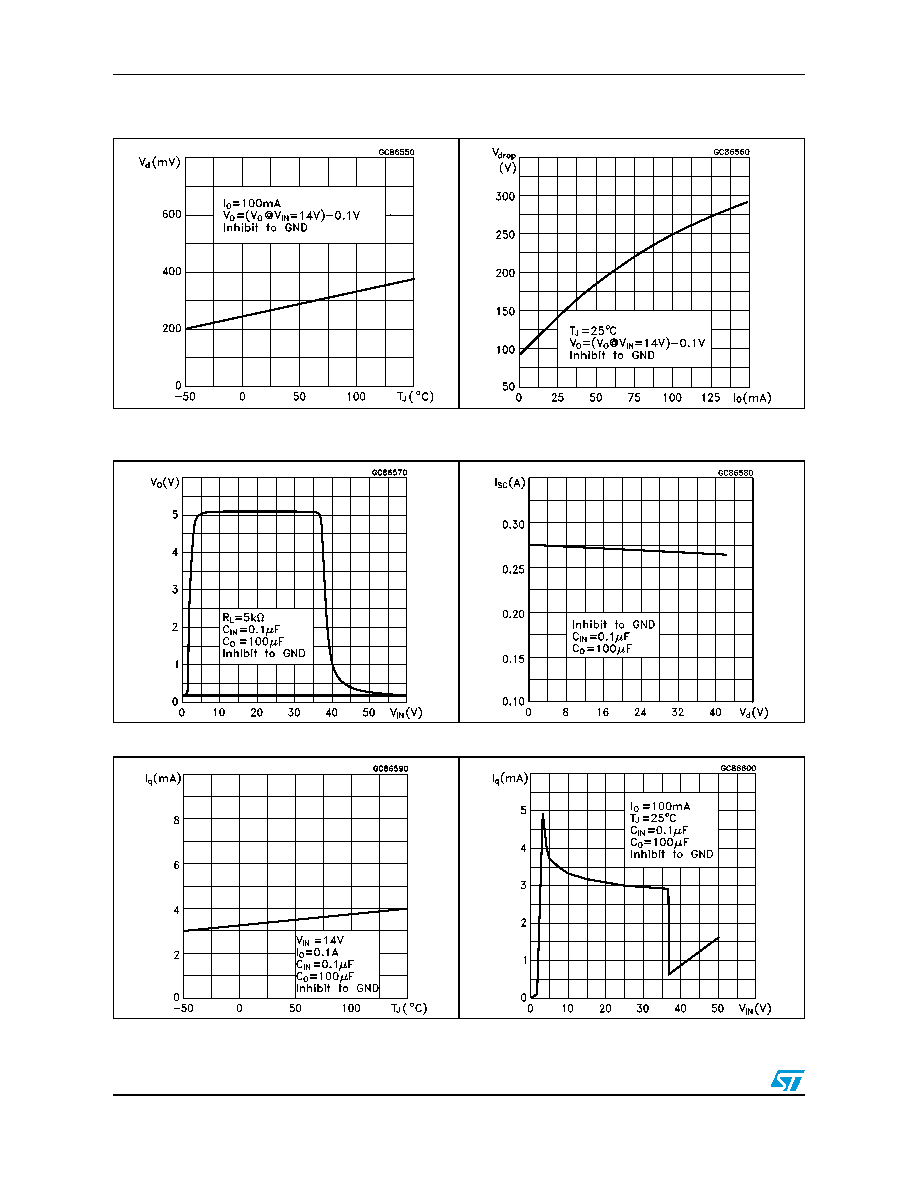

Figure 11.
Dropout voltage vs temperature
Figure 12.
Dropout voltage vs output current
Figure 13.
Output voltage vs input voltage
Figure 14.
Short circuit current vs drop
voltage
Figure 15.
Quiescent current vs temperature
Figure 16.
Quiescent current vs input voltage
