Typical characteristics
LM2931XX, LM2931AXX33, LM2931AXX50
10/21
Doc ID 6740 Rev 19
6

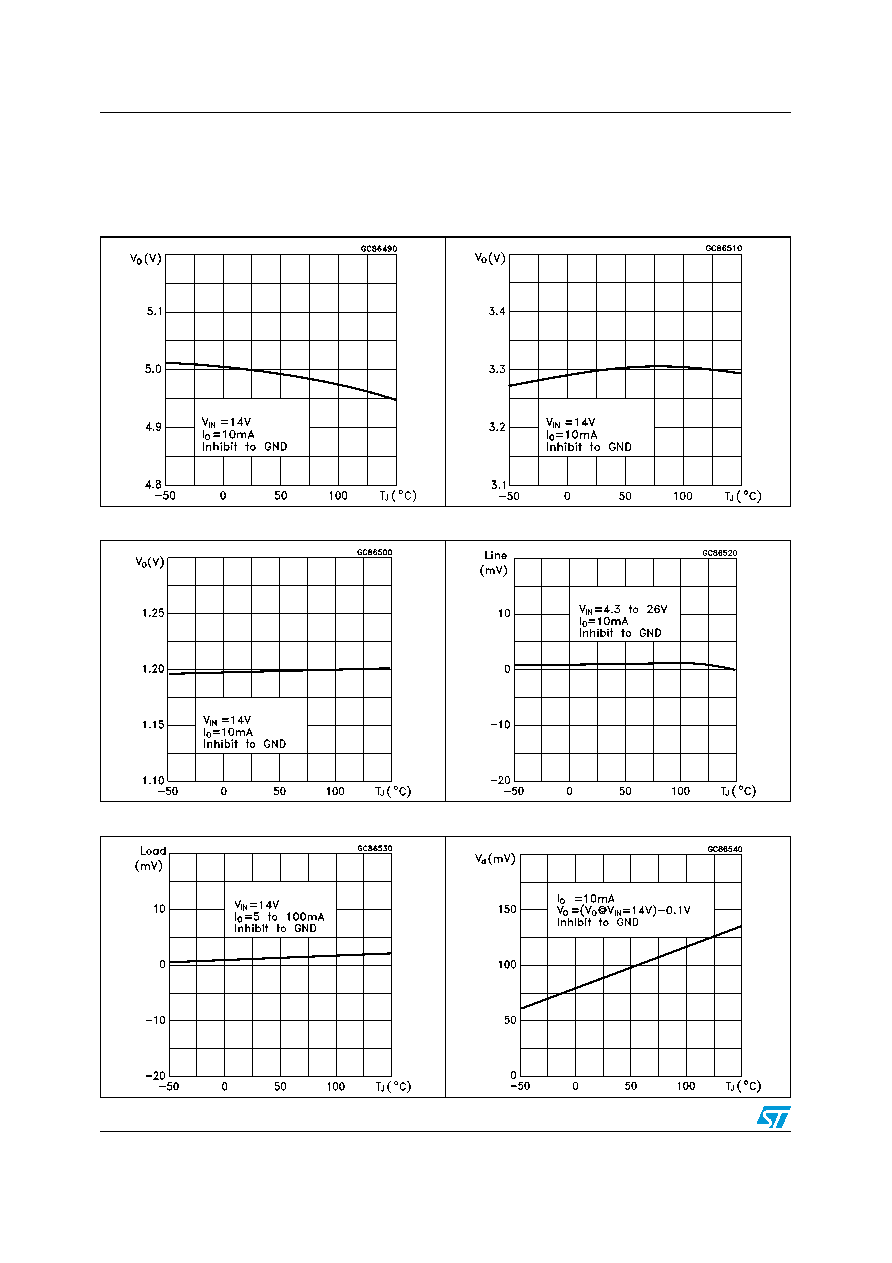

Typical characteristics
Unless otherwise specified CI = 0.1 µF, CO = 100 µF.
Figure 5.
Output voltage vs. temperature
Figure 6.
Output voltage vs. temperature
Figure 7.
Reference voltage vs. temperature
Figure 8.
Line regulation vs. temperature
Figure 9.
Load regulation vs. temperature
Figure 10.
Dropout voltage vs. temperature
