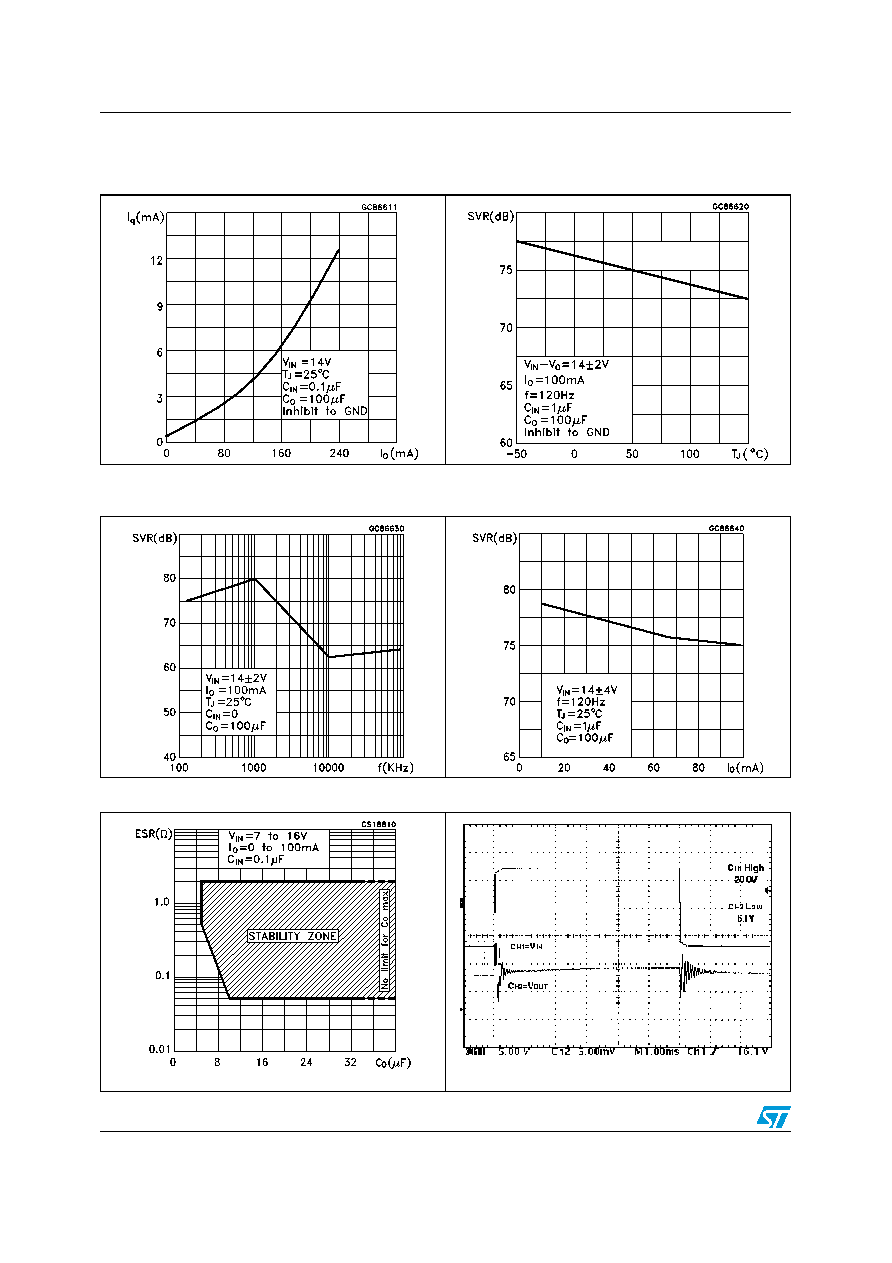

Typical characteristics
LM2931XX, LM2931AXX33, LM2931AXX50
12/21
Doc ID 6740 Rev 19
Figure 17.
Quiescent current vs. output
current
Figure 18.
Supply voltage rejection vs.
temperature
Figure 19.
Supply voltage rejection vs.
frequency
Figure 20.
Supply voltage rejection vs. output
current
Figure 21.
Stability vs. CO
Figure 22.
Line transient
VI = 6 to 20 V, RL = 500 Ω, TJ = 25°C, CI = 0, CO = 100 µF,
Rise Fall-Time = 200 ns
