LM2931D-R Datasheet(PDF) 11 Page - STMicroelectronics

Part # LM2931D-R
Description  Very low drop voltage regulators with inhibit function
PDF  21 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  STMICROELECTRONICS [STMicroelectronics]
Direct Link  http://www.st.com
Logo STMICROELECTRONICS - STMicroelectronics

LM2931D-R Datasheet(HTML) 11 Page - STMicroelectronics

Back Button LM2931D-R Datasheet HTML 7Page - STMicroelectronics LM2931D-R Datasheet HTML 8Page - STMicroelectronics LM2931D-R Datasheet HTML 9Page - STMicroelectronics LM2931D-R Datasheet HTML 10Page - STMicroelectronics LM2931D-R Datasheet HTML 11Page - STMicroelectronics LM2931D-R Datasheet HTML 12Page - STMicroelectronics LM2931D-R Datasheet HTML 13Page - STMicroelectronics LM2931D-R Datasheet HTML 14Page - STMicroelectronics LM2931D-R Datasheet HTML 15Page - STMicroelectronics Next Button
Zoom Inzoom in Zoom Outzoom out
 11 / 21 page
background image
LM2931XX, LM2931AXX33, LM2931AXX50
Typical characteristics
Doc ID 6740 Rev 19
11/21

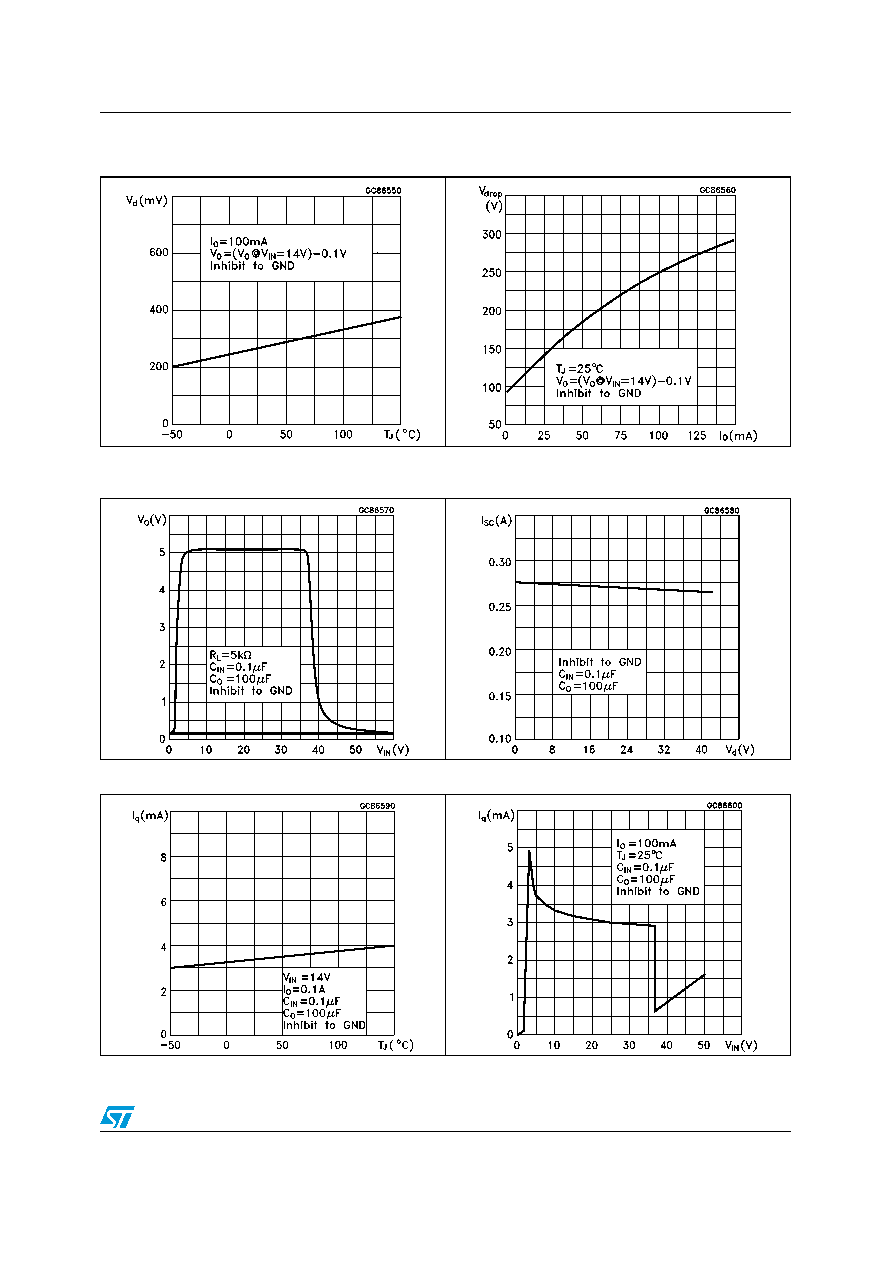

Figure 11.
Dropout voltage vs. temperature
Figure 12.
Dropout voltage vs. output current
Figure 13.
Output voltage vs. input voltage
Figure 14.
Short circuit current vs. drop
voltage
Figure 15.
Quiescent current vs. temperature
Figure 16.
Quiescent current vs. input voltage
