WI.232FHSS-25-R/ WI.232FHSS-250-R DATASHEET
31
Revision 1.1.0
Wi.232FHSS-250-R and Wi.232FHSS-25-R. Figure 13 and Figure 14 below indicate typical traces of RSSI
voltage versus signal strength.
3.6.7. No Connects (NC)
These pins are currently unused and should be left unconnected or floating.
0
500
1000
1500
2000
2500
-102 -98
-94 -90 -86
-82
-78 -74 -70
-66 -62
-58 -54 -50
-46 -42 -38
-34
-30 -26
-22
RF IN (dBm)
High Sens
Mid IIP3
High IIP3
Auto Gain

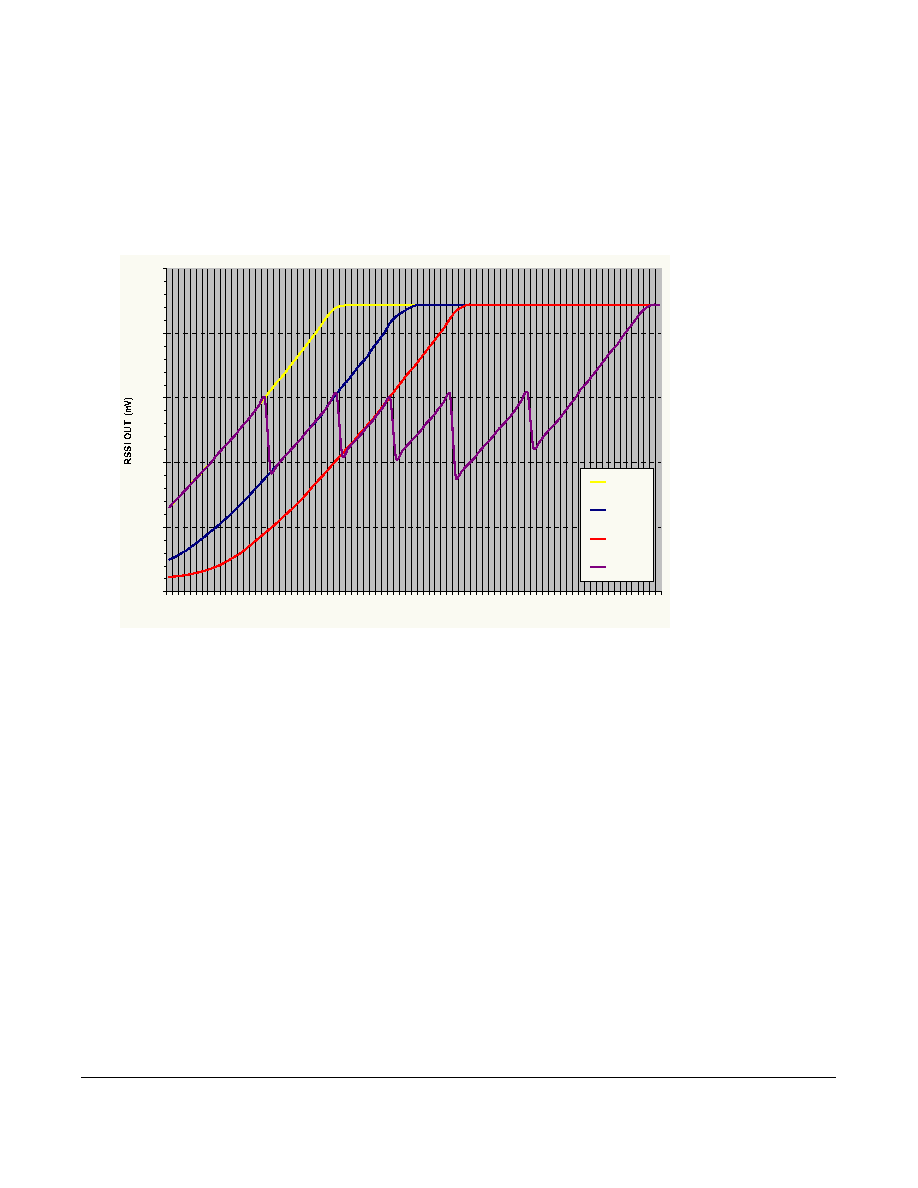

Figure 13: Typical Analog RSSI response (Wi.232FHSS-250-R)
