UPCONVERTER PERFORMANCE: IFIN = 100 MHz, LOWER SIDEBAND (HIGH-SIDE LO)

Data taken as single sideband upconverter with external 90° hybrid at the IF ports, LO = 15 dBm, unless otherwise noted.

–20

–15

–10

–5

RF FREQUENCY (GHz)

TA = +85°C

TA = +25°C

TA = –40°C

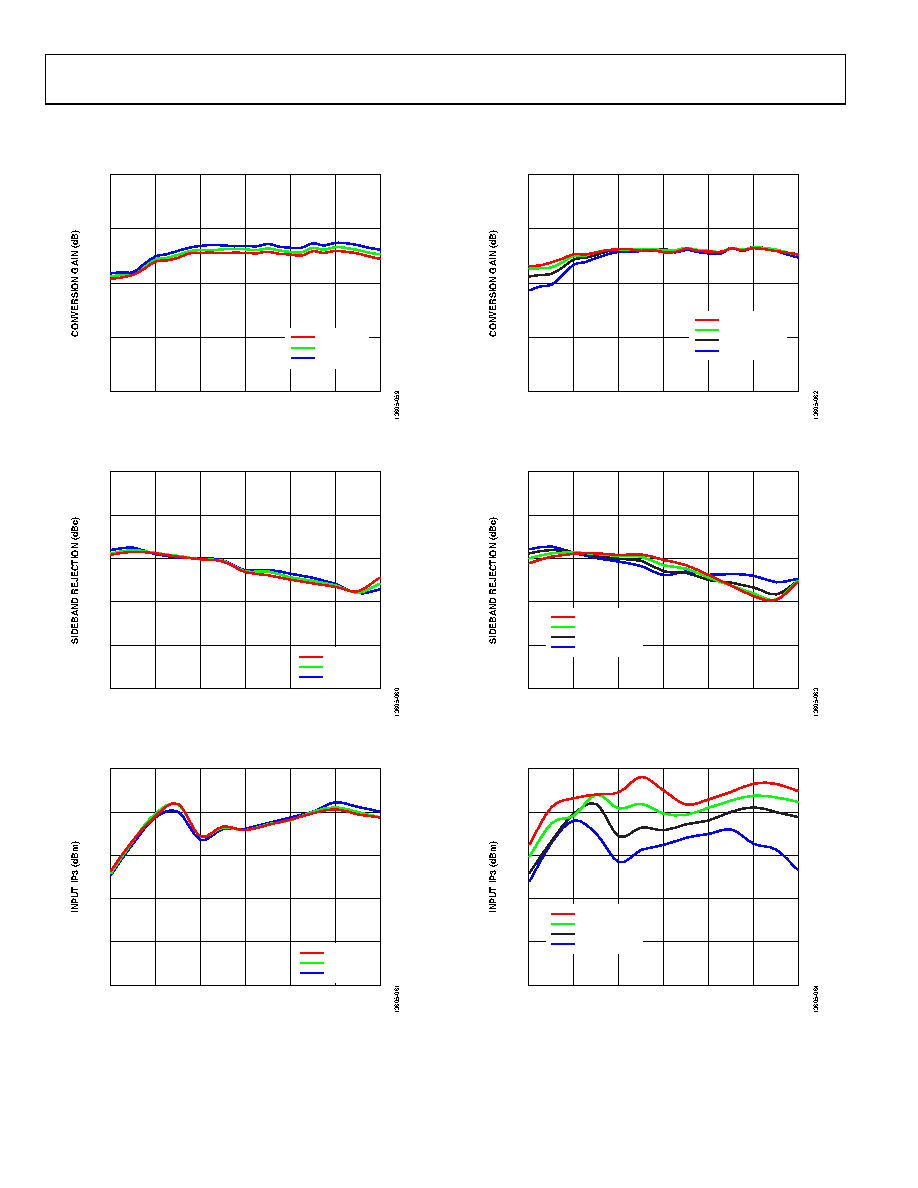

Figure 59. Conversion Gain vs. RF Frequency at Various Temperatures

–50

–30

–40

–20

–10

RF FREQUENCY (GHz)

TA = +85°C

TA = +25°C

TA = –40°C

Figure 60. Sideband Rejection vs. RF Frequency at Various Temperatures

RF FREQUENCY (GHz)

TA = +85°C

TA = +25°C

TA = –40°C

Figure 61. Input IP3 vs. RF Frequency at Various Temperature

RF FREQUENCY (GHz)

LO = 19dBm

LO = 17dBm

LO = 15dBm

LO = 13dBm

–20

–15

–10

–5

Figure 62. Conversion Gain vs. RF Frequency at Various LO Powers,

TA = 25°C

–50

–30

–40

–20

–10

RF FREQUENCY (GHz)

LO = 19dBm

LO = 17dBm

LO = 15dBm

LO = 13dBm

Figure 63. Sideband Rejection vs. RF Frequency at Various LO Powers,

TA = 25°C

RF FREQUENCY (GHz)

LO = 19dBm

LO = 17dBm

LO = 15dBm

LO = 13dBm

Figure 64. Input IP3 vs. RF Frequency at Various LO Powers,

TA = 25°C
