ISOLATION AND RETURN LOSS

RF FREQUENCY (GHz)

LO TO RF

LO TO IF1

LO TO IF2

RF TO IF1

RF TO IF2

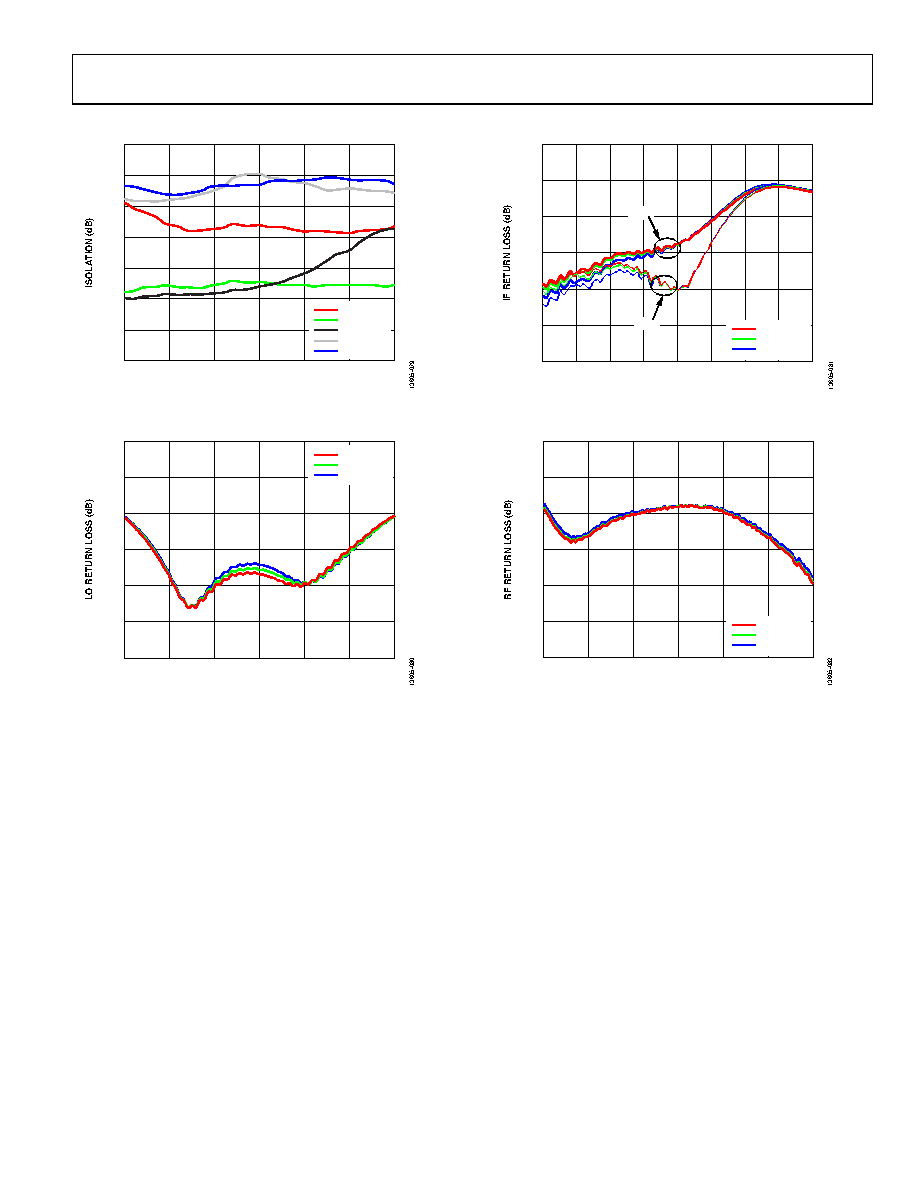

Figure 79. Isolation vs. RF Frequency at LO = 15 dBm, TA = 25°C

–30

–20

–15

–25

–10

–5

LO FREQUENCY (GHz)

TA = +85°C

TA = +25°C

TA = –40°C

Figure 80. LO Return Loss vs. LO Frequency at Various Temperatures at

LO = 15 dBm

0.1

0.6

1.1

1.6

2.1

2.6

3.1

4.1

3.6

IF FREQUENCY (GHz)

–30

–20

–15

–25

–10

–5

IF1

IF2

TA = +85°C

TA = +25°C

TA = –40°C

Figure 81. IF Return Loss vs. IF Frequency at Various Temperatures,

LO = 8.5 GHz at 15 dBm

–30

–20

–15

–25

–10

–5

RF FREQUENCY (GHz)

TA = +85°C

TA = +25°C

TA = –40°C

Figure 82. RF Return Loss vs. RF Frequency at Various Temperatures,

LO = 8.5 GHz at 15 dBm
