Revision 1.0
Page 41 of 44
nRF24AP2-USB Product Specification

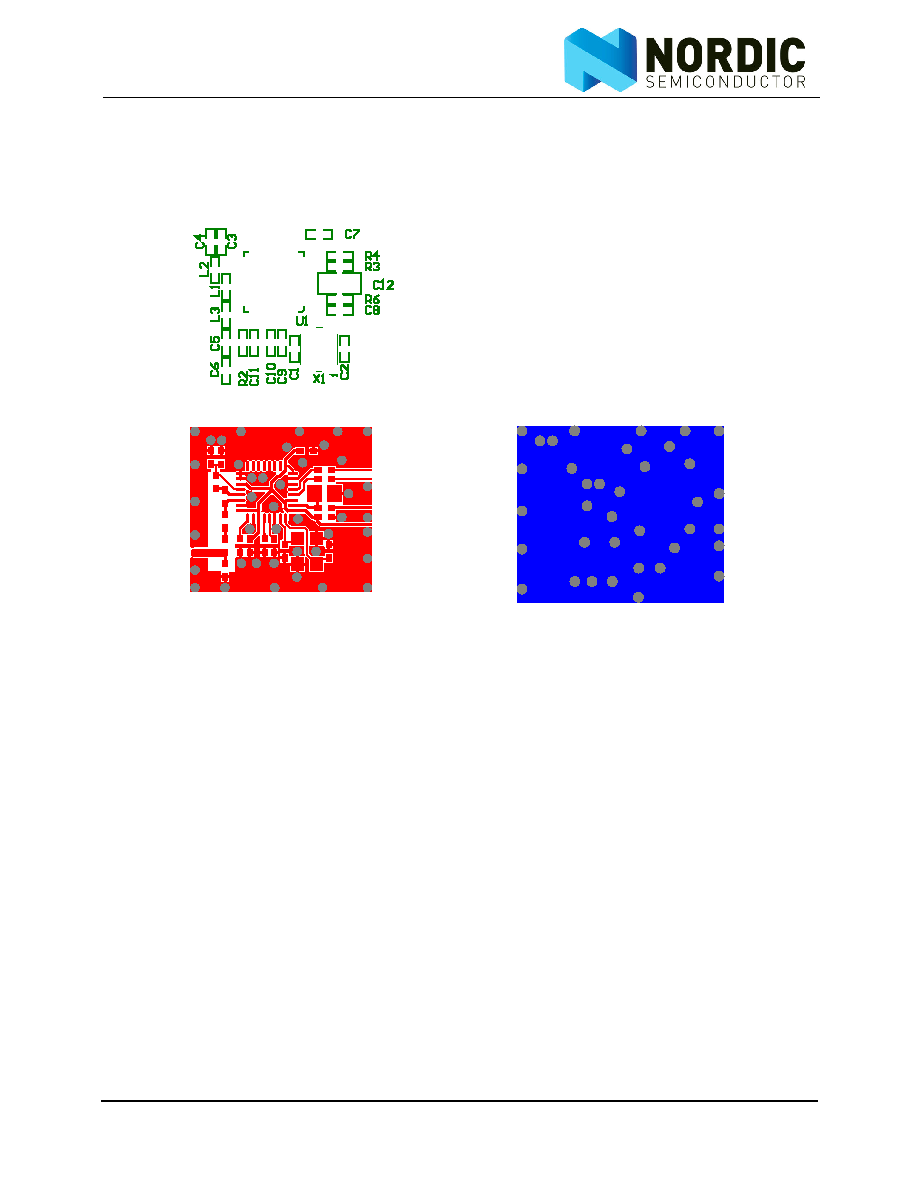

11.3
Layout
A double sided FR-4 board of 1.6 mm thickness is used. This PCB has a ground plane on the bottom layer.
There are ground areas on the component side of the board to ensure sufficient grounding of critical com-
ponents. A large number of Via holes connect the top layer ground areas to the bottom layer ground plane.
No components
in bottom layer
Top silk screen
Top view
Bottom view
