Example order codes

EPP-VSL1212-1253P 12+12 Way 125A 3P

EPP-VSL168-2503P 16+8 Way 250A 3P

Vertical DB CT ratios

Dual 125 125+100

Dual 160 160+125

Dual 250 250+160

Tri 125 125+100+100

Tri 160 160+125+100

Tri 250 250+160+125

Order codes

No. of outgoing

Incomer rating (A)

No. of poles

EPP-VSL84

8+4 TPN

-125

-160

-250

3 P

4 P

EPP-VSL88

8+8 TPN

EPP-VSL128

12+8 TPN

EPP-VSL1212

12+12 TPN

EPP-VSL168

16+8 TPN

EPP-VSL844

8+4+4 TPN

EPP-VSL1284

12+8+4 TPN

—

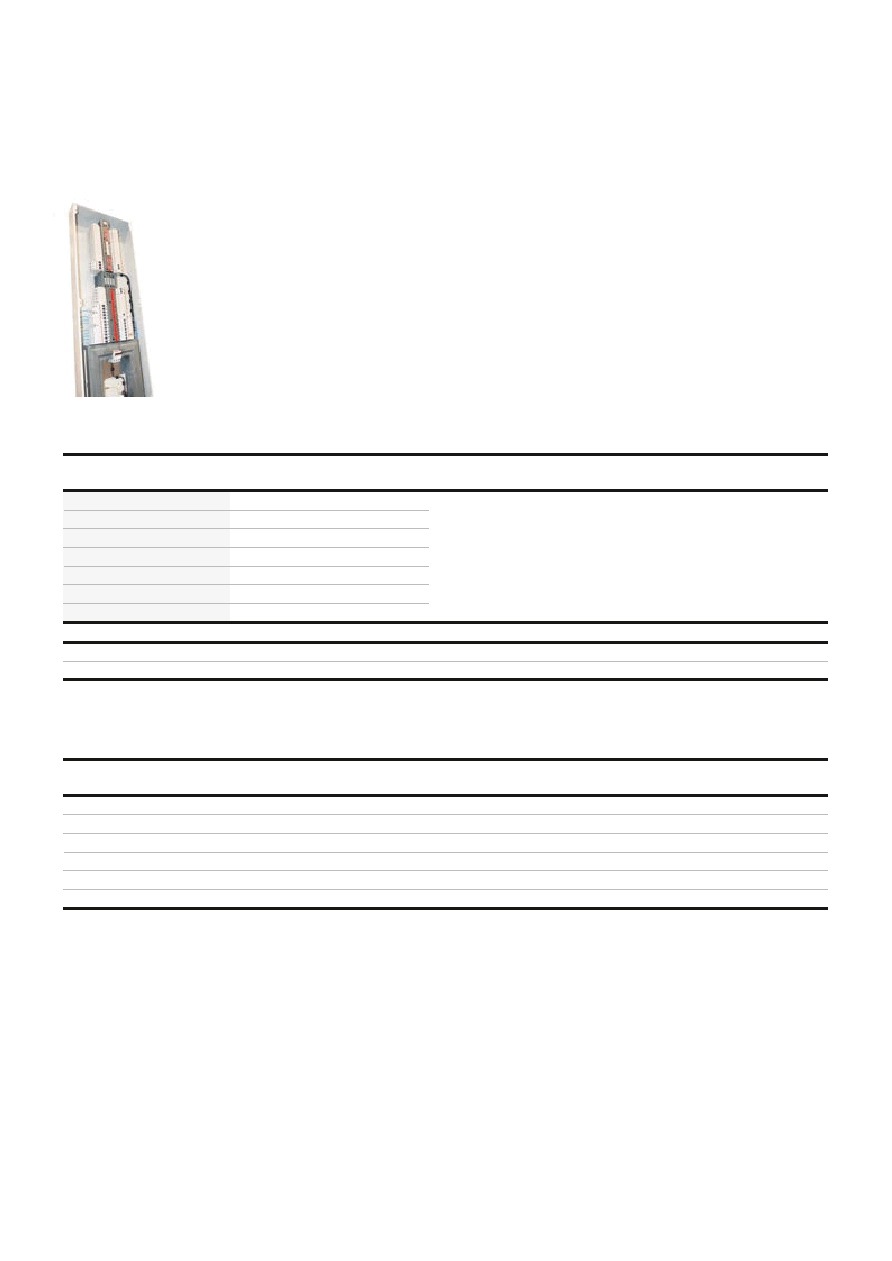

Vertical Split Load Boards - 42 variations are available

Boards are supplied fully assembled and metering devices configured to C.T. ratio's

—

MCB distribution board - Type B

—

Protecta Plus

Order Codes

P R OT EC TA P LUS – O R D ER CO D E S

Pack contents: Vertical Split Load Boards

• 2/3 MID, Modbus ( RS485 ) & Pulse Meters

• Associated CTs

• Incoming terminals

• Internal cables

Please note, no additional assembly is required.

Units will be delivered with meters

pre-configured to internal C.T sizing.
