PROTEC TA PLUS MCB DIS TR IBUTION B OA R D 2 5 0A

—

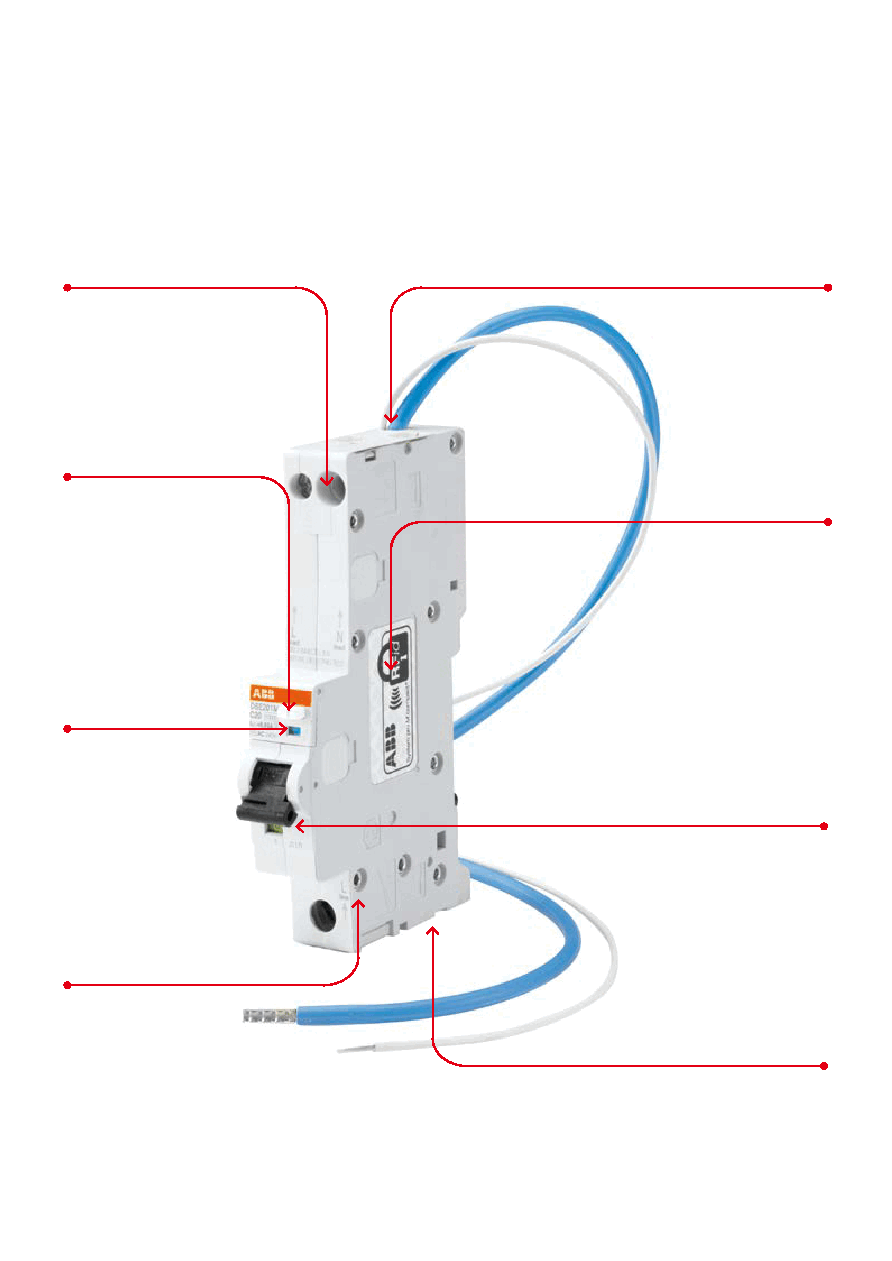

Key modular components - DSE201 M

Compact design, enhanced protection

Space for insulated screwdrivers

Equipped with cage type

terminals (16 mm² load side),

with tightening torque of 1.2 Nm.

Easy to install

Fast installation is

supported by the two

flying leads for neutral

cable and functional

earth, each integrated in

the device, which can be

directly connected to

the main neutral and

earth bars.

Earth fault indicator

Blue window in the

front of the device to

detect any earth fault

trip: the cause of trip

of the device can be

identified in a short

time, reducing the

downtime for

maintenance.

Anti-counterfeiting

Equipped with an RFID

tag containing a unique

serial number assigned

by ABB in accordance to

ISO/IEC FCD 15693-3

standard in order to

authenticate the

product.

Real contact position

indicator below the toggle

Directly linked to the

moving contact of the

device, the green/red

window in the front of the

device can identify the

current position of the

contacts (open/closed)

independently on the

toggle position.

In control

A test button allows the

regular check of the

functionality of the

device: to be pushed

every six months.

Combination with

auxiliary elements

New platform suitable

for quick installation in

combination with the

standard auxiliary

elements that can be

mounted with RCDs

and MCBs.

Reduced height

Thanks to its reduced

height, only 115 mm,

DSE201 M makes for

easier wiring operation

inside the consumer unit

or the distribution.
