PROTEC TA PLUS MCB DIS TR IBUTION B OA R D 2 5 0A

—

Protecta Plus

Order Codes

Pack contents: Top extension boxes

• Fixings

• DIN rail / mounting plate

• RAL7035 textured finish

Description

Order codes

Protecta Plus DB 4way 100A

HSMS4C

Protecta Plus DB 7way 100A

HSMS7C

Protecta Plus DB 11way 100A

HSMS11C

Protecta Plus DB 16way 100A

HSMS16C

Protecta Plus DB 20way 100A

HSMS20C

—

MCB Distribution board - Type A

Pack contents: Type A distribution

• Supplied factory fitted with 100A switch

disconnector

• RAL7035 textured finish

Type

No. of

modules

Dimensions (mm)

Height

(W x D)

Order codes

Hinged door with 1 DIN rail

200

450 x 130

EPP-R1016

Hinged door with 2 DIN rail

400

450 x 130

EPP-R2032

Plain extension box 200mm

200

450 x 130

EPP-EB20

Plain extension box 400mm

400

450 x 130

EPP-EB40

—

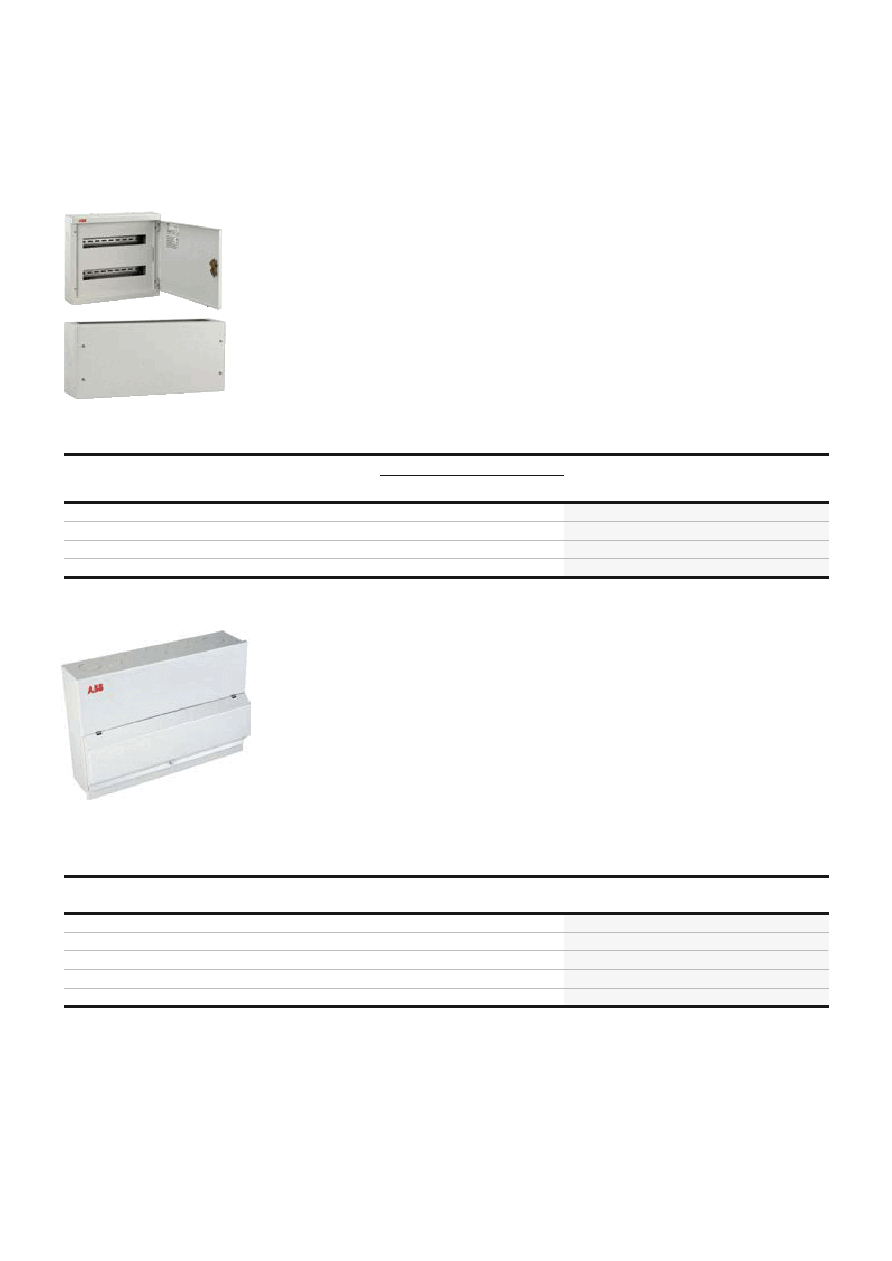

Extension boxes
