AT89C51AC3

4383D–8051–02/08

Dual Data Pointer

Description

The AT89C51AC3 implements a second data pointer for speeding up code execution

and reducing code size in case of intensive usage of external memory accesses.

DPTR 0 and DPTR 1 are seen by the CPU as DPTR and are accessed using the SFR

addresses 83h and 84h that are the DPH and DPL addresses. The DPS bit in AUXR1

pointer 1 (see Figure 13).

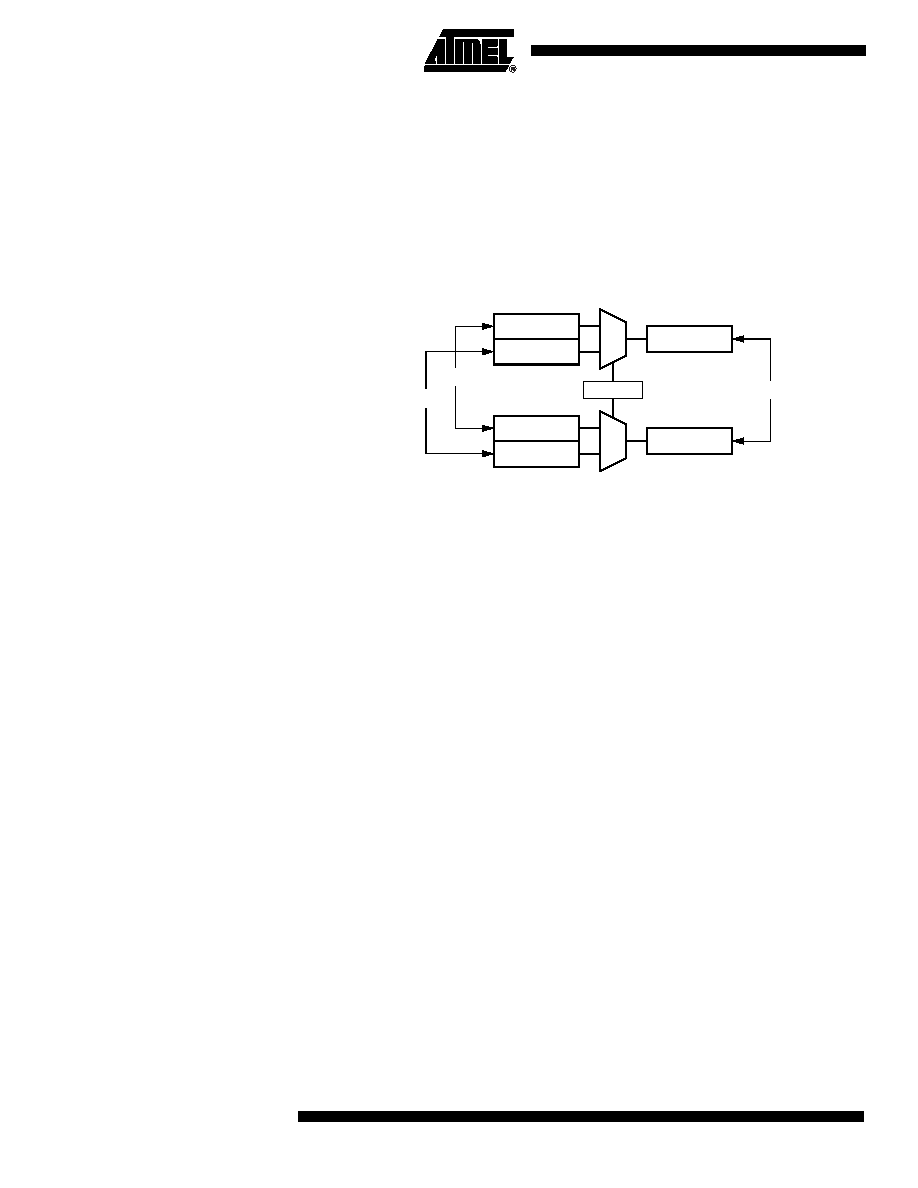

Figure 13. Dual Data Pointer Implementation

Application

Software can take advantage of the additional data pointers to both increase speed and

reduce code size, for example, block operations (copy, compare…) are well served by

using one data pointer as a “source” pointer and the other one as a “destination” pointer.

Hereafter is an example of block move implementation using the two pointers and coded

in assembler. The latest C compiler takes also advantage of this feature by providing

enhanced algorithm libraries.

The INC instruction is a short (2 Bytes) and fast (6 machine cycle) way to manipulate the

DPS bit in the AUXR1 register. However, note that the INC instruction does not directly

force the DPS bit to a particular state, but simply toggles it. In simple routines, such as

the block move example, only the fact that DPS is toggled in the proper sequence mat-

ters, not its actual value. In other words, the block move routine works the same whether

DPS is '0' or '1' on entry.

; ASCII block move using dual data pointers

; Modifies DPTR0, DPTR1, A and PSW

; Ends when encountering NULL character

; Note: DPS exits opposite to the entry state unless an extra INC AUXR1 is added

AUXR1EQU0A2h

move:movDPTR,#SOURCE ; address of SOURCE

incAUXR1 ; switch data pointers

movDPTR,#DEST ; address of DEST

mv_loop:incAUXR1; switch data pointers

movxA,@DPTR; get a byte from SOURCE

incDPTR; increment SOURCE address

incAUXR1; switch data pointers

movx@DPTR,A; write the byte to DEST

incDPTR; increment DEST address

jnzmv_loop; check for NULL terminator

end_move:

DPH0

DPH1

DPL0

DPS

AUXR1.0

DPH

DPL

DPL1

DPTR

DPTR0

DPTR1
