 29 / 57 page
background image
CS
DAC
DIN
SCLK
Time
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
AFE031
www.ti.com
SBOS531D – AUGUST 2010 – REVISED MAY 2012
NOTE: Dashed lines indicate optional additional clocks (data are ignored).

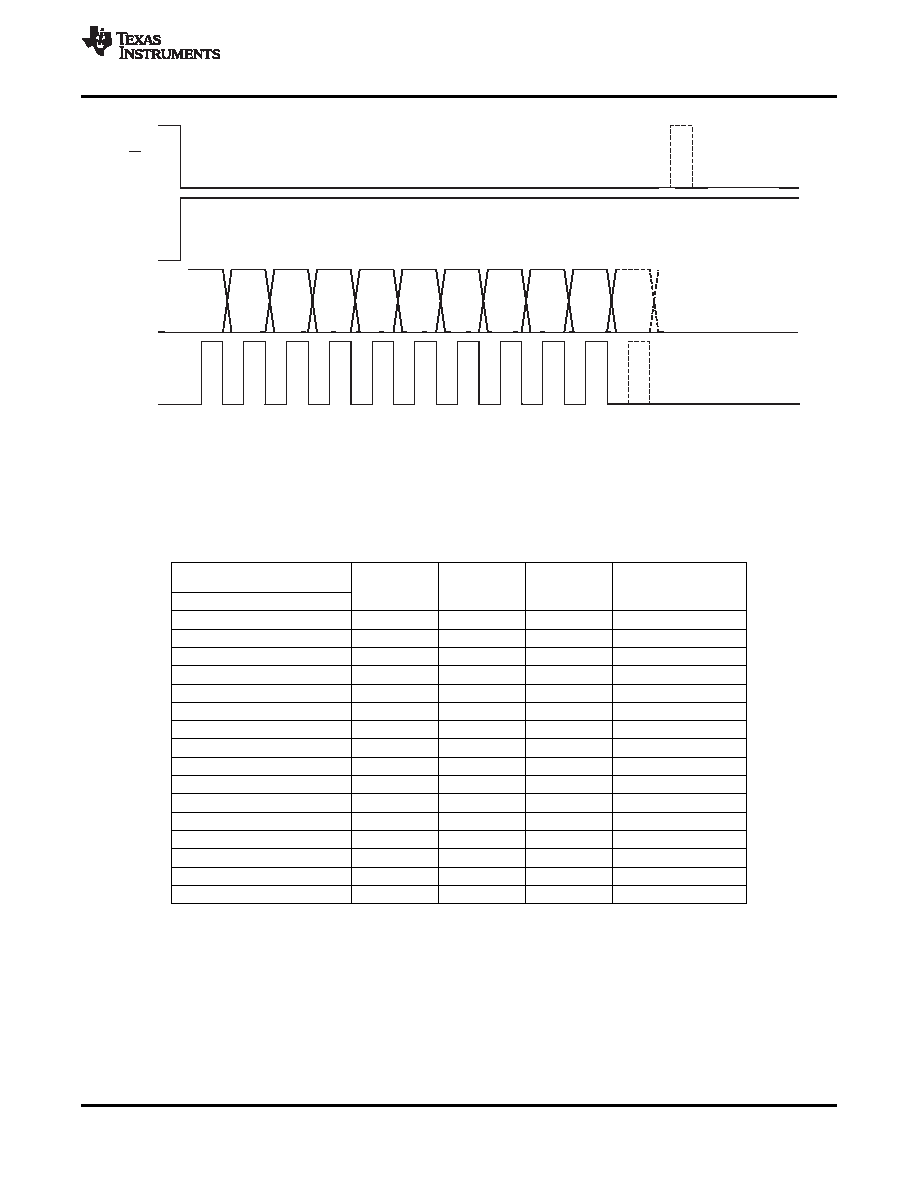

Figure 35. Writing to the DAC Register
Table 6 lists the DAC Register configurations.
Table 6. DAC Registers
DAC PIN HIGH:
DAC REGISTER <15:0>
LOCATION
BIT NAME
(0 = LSB)
DEFAULT
R/W
FUNCTION
DAC<0>
0
--
W
Truncated
DAC<1>
1
--
W
Truncated
DAC<2>
2
--
W
Truncated
DAC<3>
3
--
W
Truncated
DAC<4>
4
--
W
Truncated
DAC<5>
5
--
W
Truncated
DAC<6>
6
--
W
DAC bit 0 = DAC LSB
DAC<7>
7
--
W
DAC bit 1
DAC<8>
8
--
W
DAC bit 2
DAC<9>
9
--
W
DAC bit 3
DAC<10>
10
--
W
DAC bit 4
DAC<11>
11
--
W
DAC bit 5
DAC<12>
12
--
W
DAC bit 6
DAC<13>
13
--
W
DAC bit 7
DAC<14>
14
--
W
DAC bit 8
DAC<15>
15
--
W
DAC bit 9 = DAC MSB
Copyright © 2010–2012, Texas Instruments Incorporated
29
Product Folder Link(s): AFE031
