COMBOSOLAR Datasheet(PDF) 13 Page - Texas Instruments

Part # COMBOSOLAR
Description  Powerline Communications Analog Front-End
PDF  57 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  TI1 [Texas Instruments]
Direct Link  http://www.ti.com
Logo TI1 - Texas Instruments

COMBOSOLAR Datasheet(HTML) 13 Page - Texas Instruments

Back Button COMBOSOLAR Datasheet HTML 9Page - Texas Instruments COMBOSOLAR Datasheet HTML 10Page - Texas Instruments COMBOSOLAR Datasheet HTML 11Page - Texas Instruments COMBOSOLAR Datasheet HTML 12Page - Texas Instruments COMBOSOLAR Datasheet HTML 13Page - Texas Instruments COMBOSOLAR Datasheet HTML 14Page - Texas Instruments COMBOSOLAR Datasheet HTML 15Page - Texas Instruments COMBOSOLAR Datasheet HTML 16Page - Texas Instruments COMBOSOLAR Datasheet HTML 17Page - Texas Instruments Next Button
Zoom Inzoom in Zoom Outzoom out
 13 / 57 page
background image
DGND
DVDD
SCLK
DIN
DOUT
CS
DAC
SD
INT
TSENSE
AVDD1
AGND1
ZC_OUT2
E_Tx_CLK
E_Tx_IN
E_Tx_OUT
E_Rx_IN
E_Rx_OUT
AVDD2
AGND2
REF2
Rx_PGA1_IN
Rx_PGA1_OUT
Rx_F_IN
1
2
3
4
5
6
7
8
9
10
11
12
25
26
27
28
29
30
31
32
33
34
35
36
Thermal Pad
AFE031
www.ti.com
SBOS531D – AUGUST 2010 – REVISED MAY 2012

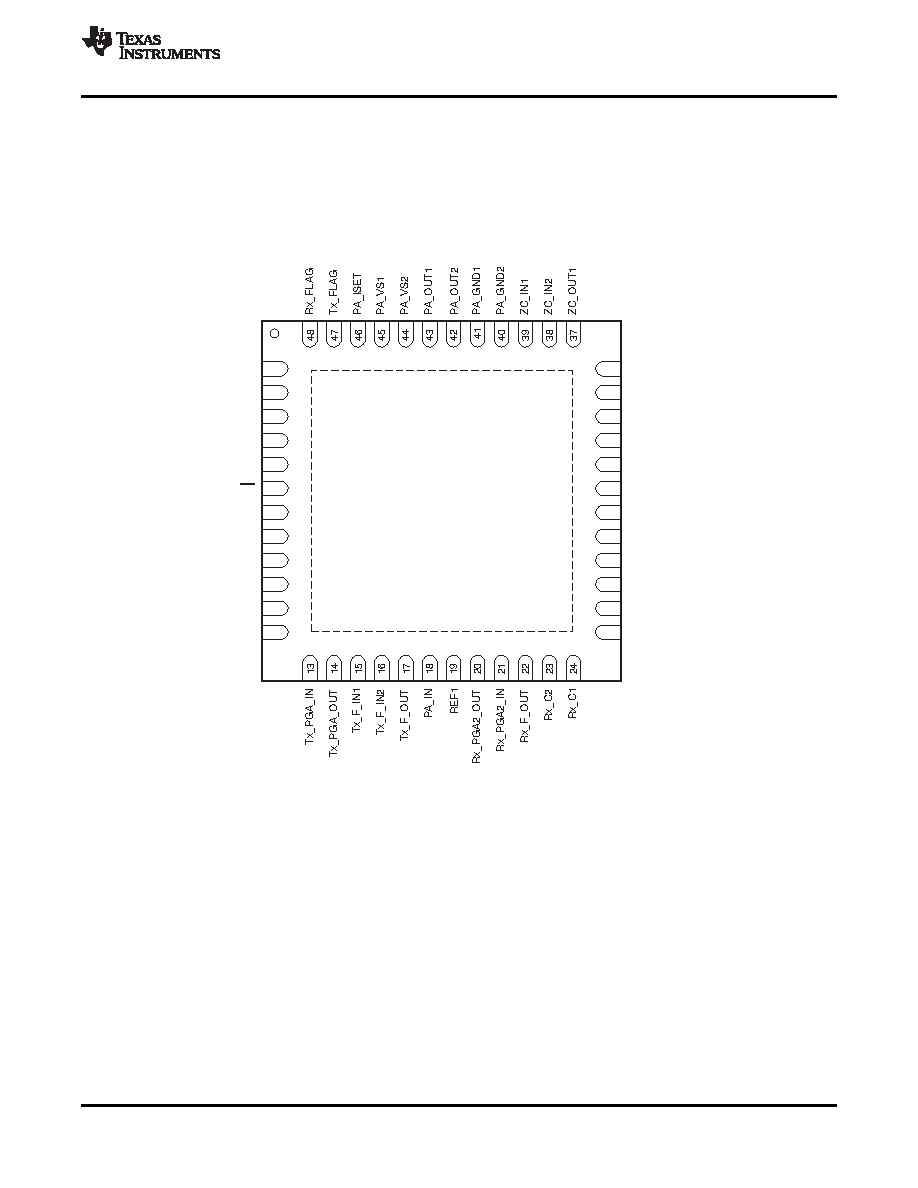

DEVICE INFORMATION
PIN ASSIGNMENTS
RGZ PACKAGE
QFN-48
(TOP VIEW)
NOTE: Exposed thermal pad is connected to ground.
Copyright © 2010–2012, Texas Instruments Incorporated
13
Product Folder Link(s): AFE031
