AT89C51AC3-RDTIM Datasheet(PDF) 16 Page - ATMEL Corporation

Part # AT89C51AC3-RDTIM
Description  Enhanced 8-bit Microcontroller with 64KB Flash Memory
PDF  143 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
Manufacturer  ATMEL [ATMEL Corporation]
Direct Link  http://www.atmel.com
Logo ATMEL - ATMEL Corporation

AT89C51AC3-RDTIM Datasheet(HTML) 16 Page - ATMEL Corporation

Back Button AT89C51AC3-RDTIM Datasheet HTML 12Page - ATMEL Corporation AT89C51AC3-RDTIM Datasheet HTML 13Page - ATMEL Corporation AT89C51AC3-RDTIM Datasheet HTML 14Page - ATMEL Corporation AT89C51AC3-RDTIM Datasheet HTML 15Page - ATMEL Corporation AT89C51AC3-RDTIM Datasheet HTML 16Page - ATMEL Corporation AT89C51AC3-RDTIM Datasheet HTML 17Page - ATMEL Corporation AT89C51AC3-RDTIM Datasheet HTML 18Page - ATMEL Corporation AT89C51AC3-RDTIM Datasheet HTML 19Page - ATMEL Corporation AT89C51AC3-RDTIM Datasheet HTML 20Page - ATMEL Corporation Next Button
Zoom Inzoom in Zoom Outzoom out
 16 / 143 page
background image
16
AT89C51AC3
4383B–8051–01/05

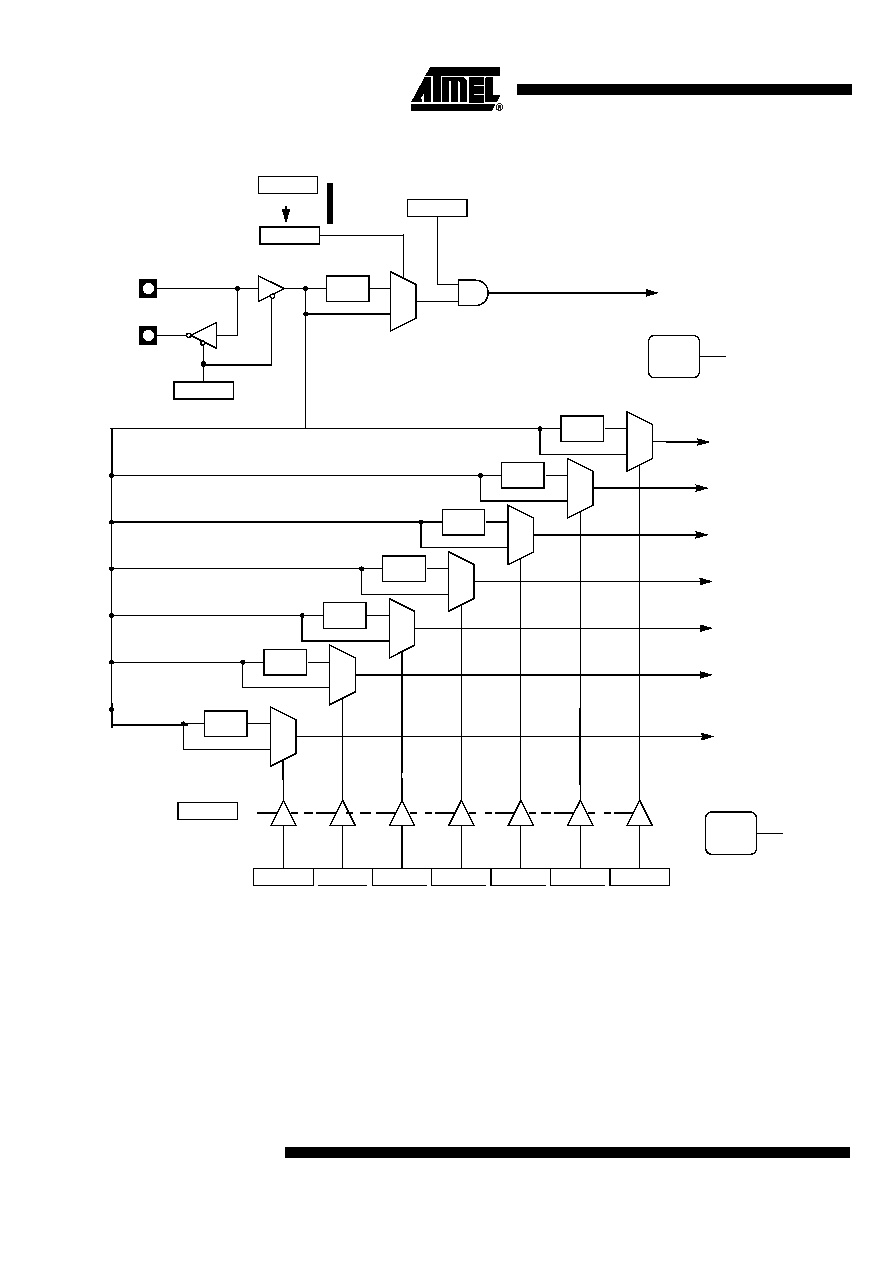

Figure 5. Clock CPU Generation Diagram
XTAL1
XTAL2
PD
PCON.1
CPU Core
1
0
÷ 2
PERIPH
CLOCK
Clock
Peripheral
CPU
CLOCK
CPU Core Clock Symbol
X2
CKCON.0
X2B
Hardware byte
WDX2
CKCON0.6
PCAX2
CKCON0.5
SIX2
CKCON0.4
T2X2
CKCON0.3
T1X2
CKCON0.2
T0X2
CKCON0.1
IDL
PCON.0
1
0
÷ 2
1
0
÷ 2
1
0
÷ 2
1
0
÷ 2
1
0
÷ 2
1
0
÷ 2
X2
CKCON.0
FWd Clock
FPca Clock
FUart Clock
FT2 Clock
FT1 Clock
FT0 Clock
and ADC
On RESET
1
0
÷ 2
FSPIClock
SPIX2
CKCON1.0
Clock Symbol
