STM32G473xB STM32G473xC STM32G473xE

Electrical characteristics

194

Note:

For more information about GPIO properties, refer to the application note AN4899 "STM32

GPIO configuration for hardware settings and low-power consumption" available from the

ST website www.st.com.

All I/Os are CMOS- and TTL-compliant (no software configuration required). Their

characteristics cover more than the strict CMOS-technology or TTL parameters. The

coverage of these requirements is shown in Figure 25 for standard I/Os, and in Figure 25 for

5 V tolerant I/Os.

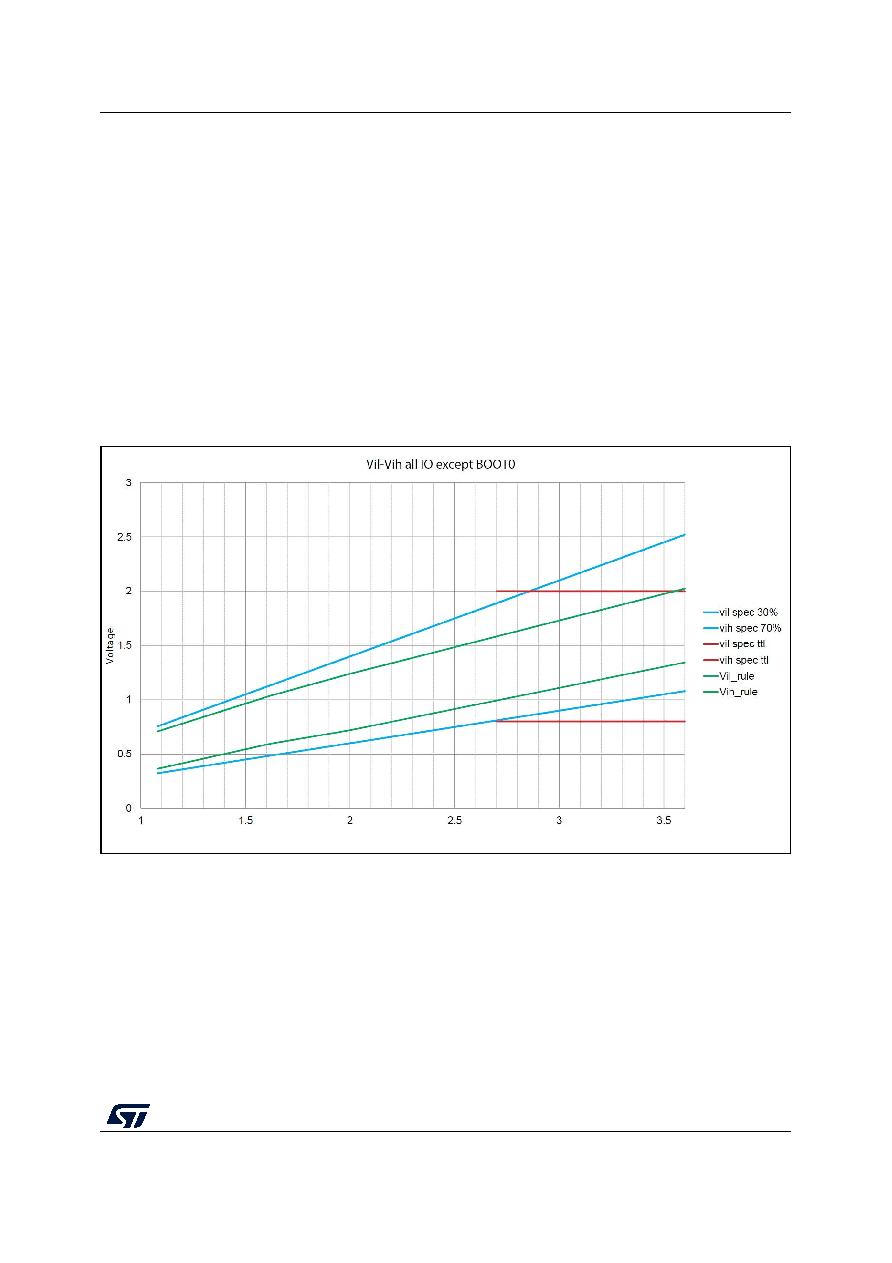

Figure 25. I/O input characteristics

Output driving current

The GPIOs (general purpose input/outputs) can sink or source up to ±8 mA, and sink or

source up to ± 20 mA (with a relaxed VOL/VOH).

2. Data based on characterization results, not tested in production

3. Guaranteed by design.

4. This value represents the pad leakage of the I/O itself. The total product pad leakage is provided by this formula:

ITotal_Ileak_max = 10 μA + [number of I/Os where VIN is applied on the pad] ₓ Ilkg(Max).

5. Pull-up and pull-down resistors are designed with a true resistance in series with a switchable PMOS/NMOS. This

PMOS/NMOS contribution to the series resistance is minimal (~10% order).

MSv37613V1

Teste

d in

production

CMOS

requirement

Vih

min

= 0

.7xV

DDIO

Based

on simulati

on Vi

h min

= 0.

61xV

DDIOx

+0.05

for 1.08<V

DDIOx

<1.62

or 0.49xV

DDIOx

+0.2

6 for

VDDI

Ox>1

.62

Based

on simu

lation

Vil m

ax =0.43xV

DDIOx

-0.1 for

1.08

<VDDIOx

<1.62

or 0.39xV

DDIOx

-0.06

for VDDIO

x>1.62

Tested

in produ

ction CMOS

requirement

Vil ma

x = 0.3xVdd

TTL requirement Vih min = 2V

TTL requirement Vil max = 0.8V
