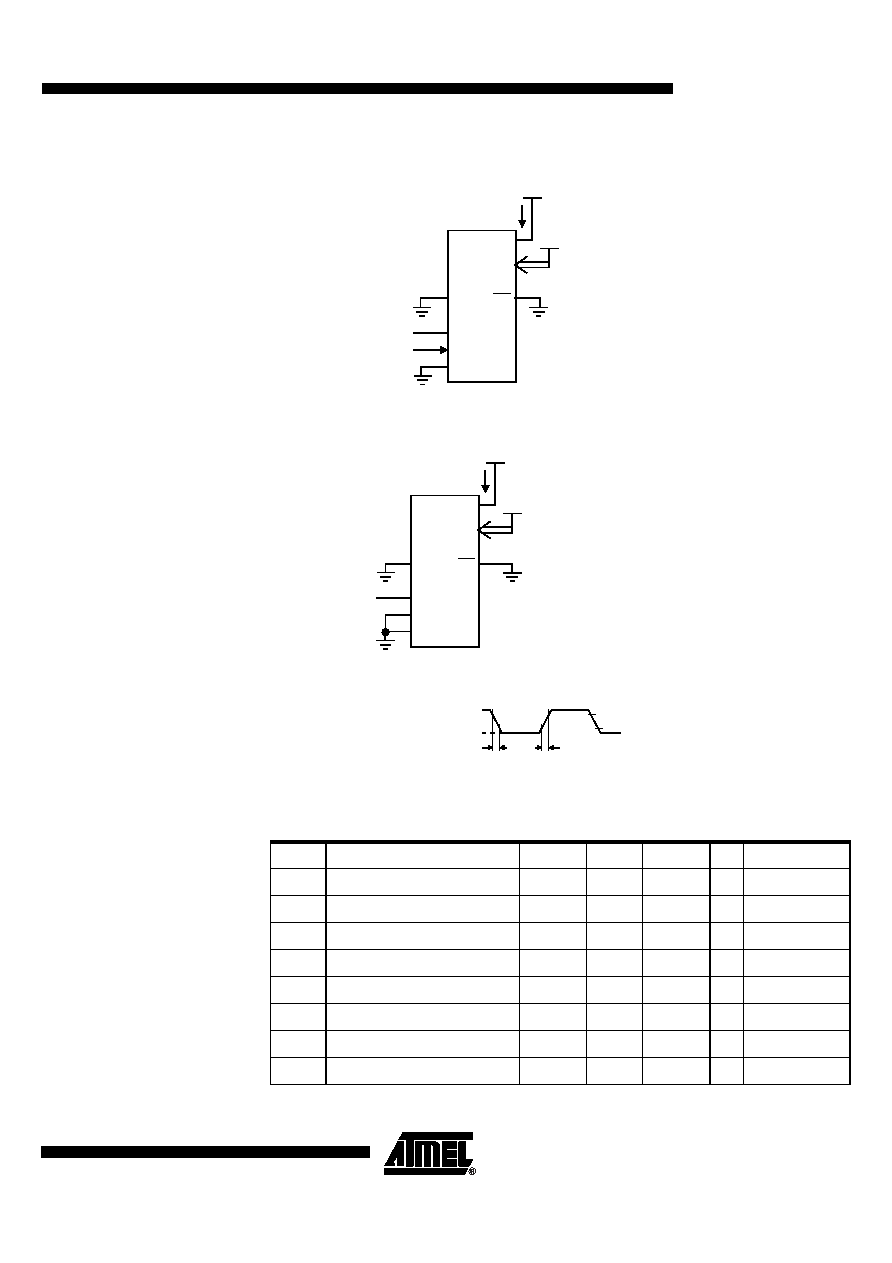

123 / 143 page ![]() 123 AT89C51AC3 4383B–8051–01/05 Figure 65. ICC Test Condition, Idle Mode Figure 66. ICC Test Condition, Power-Down Mode Figure 67. Clock Signal Waveform for ICC Tests in Active and Idle Modes DC Parameters for A/D Converter Table 72. DC Parameters for AD Converter in Precision Conversion Note: 1. Typicals are based on a limited number of samples and are not guaranteed. RST EA XTAL2 XTAL1 VSS VCC VCC ICC (NC) P0 VCC All other pins are disconnected. CLOCK SIGNAL RST EA XTAL2 XTAL1 VSS VCC VCC ICC (NC) P0 VCC All other pins are disconnected. VCC-0.5V 0.45V 0.7VCC 0.2VCC-0.1 TCLCH TCHCL TCLCH = TCHCL = 5ns. Symbol Parameter Min Typ(1) Max Unit Test Conditions AVin Analog input voltage Vss- 0.2 Vref + 0.2 V Rref Resistance between Vref and Vss 12 16 24 k Ω Vref Reference voltage 2.40 3.00 V Cai Analog input Capacitance 60 pF During sampling Rai Analog input Resistor 400 Ω During sampling INL Integral non linearity 1 2 lsb DNL Differential non linearity 0.5 1 lsb OE Offset error -2 2 lsb |
|
