Rack Mounting the Switch
1. Move the chassis to the rack using a mechanical lift as shown in the following figure.
Note: If modules are inserted in the chassis, use the lift carefully to avoid damaging any
components.
2. Lift the chassis into the rack.

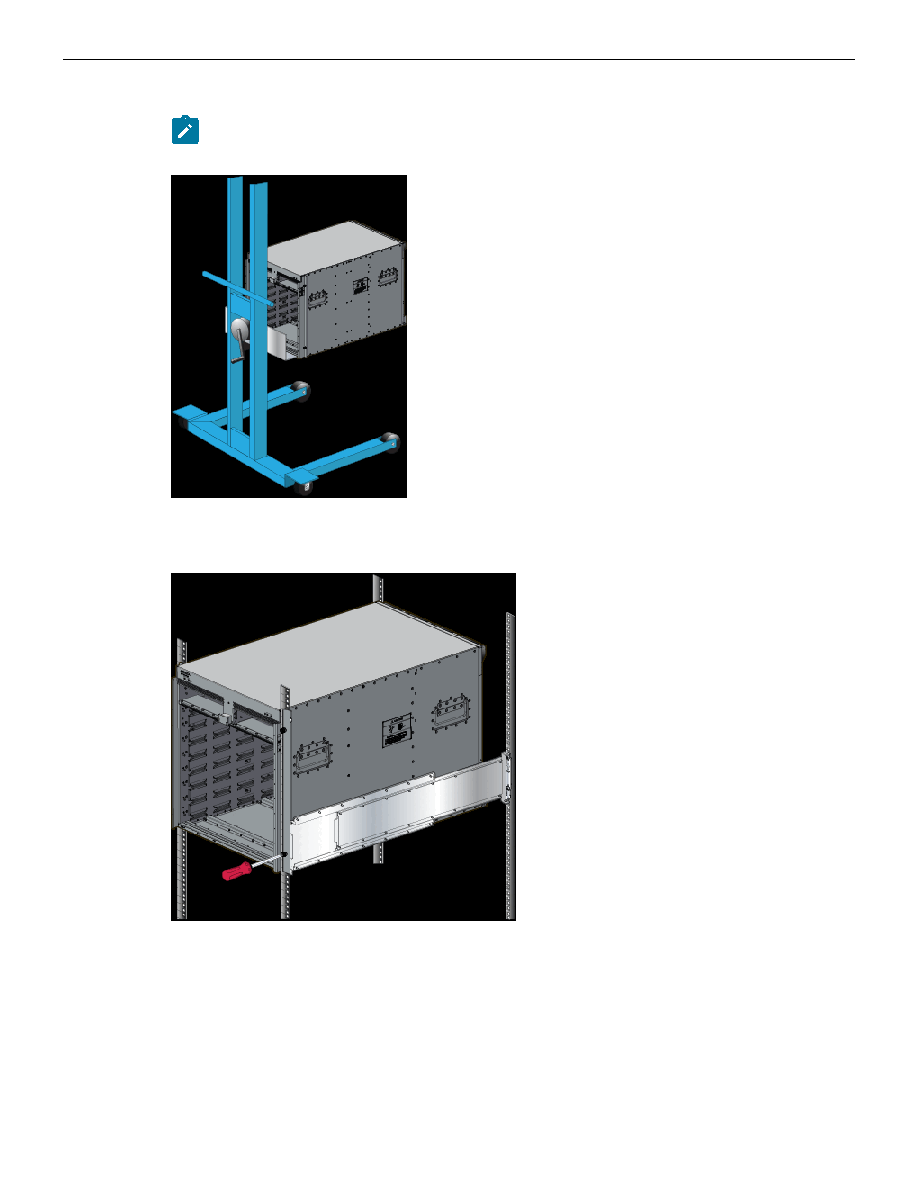

Figure 9: Lifting the chassis
3. Secure the chassis by tightening the thumbscrews on the front flanges into the rack posts as shown
in the following figure.
Figure 10: Secure the Switch to the Rack Shelf
4. After completing the two-post Installation, proceed to Cabling the Modular Switch.
3.2
7512N and 7516N Shelf Rack Mount Installation
The rack mounting assembly is for the 7512N and 7516N Series switch.
