This is information on a product in full production.

March 2018

DS6638 Rev 36

1/54

M24C64-W M24C64-R

M24C64-F M24C64-DF

64-Kbit serial I²C bus EEPROM

Datasheet

- production data

Features

• Compatible with all I2C bus modes:

–1 MHz

– 400 kHz

– 100 kHz

• Memory array:

– 64 Kbit (8 Kbyte) of EEPROM

– Page size: 32 byte

– Additional Write lockable page (M24C64-D

order codes)

• Single supply voltage:

– 1.7 V to 5.5 V over –40 °C / +85 °C

– 1.6 V to 5.5 V over 0 °C / +85 °C

• Write:

– Byte Write within 5 ms

– Page Write within 5 ms

• Random and sequential Read modes

• Write protect of the whole memory array

• Enhanced ESD/Latch-Up protection

• More than 4 million Write cycles

• More than 200-years data retention

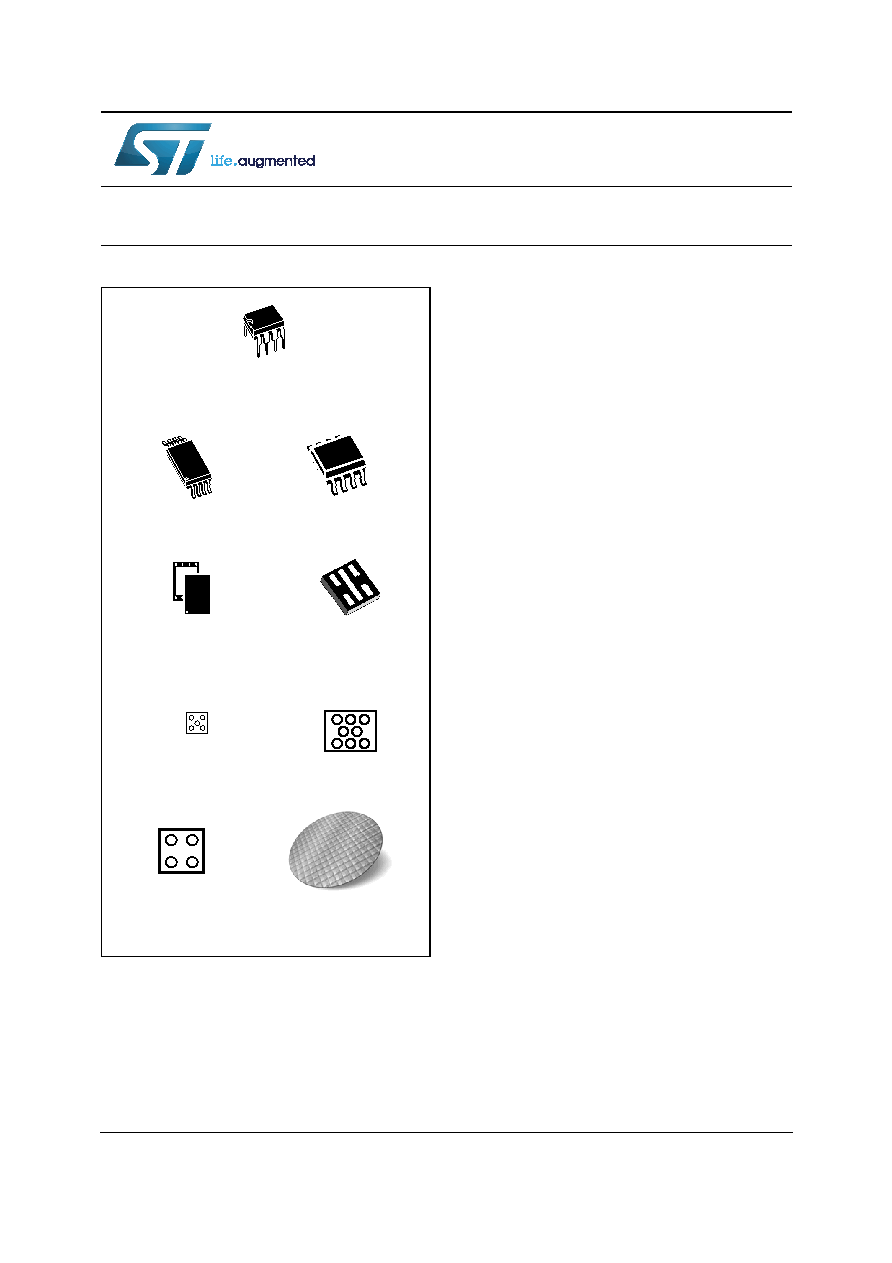

Packages

• PDIP8 ECOPACK2®

• SO8 ECOPACK2®

• TSSOP8 ECOPACK2®

• UFDFPN ECOPACK2®

• WLCSP ECOPACK2®

• Unsawn wafer (each die is tested)

SO8 (MN)

150 mil width

TSSOP8 (DW)

169 mil width

UFDFPN8 (MC)

DFN8 - 2x3 mm

WLCSP (CS)

Thin WLCSP (CT)

UFDFPN5 (MH)

DFN5 -1.7x1.4 mm

PDIP8 (BN)

WLCSP

(CU)

Unsawn wafer

www.st.com
