Multiple-Output Regulator for
Automotive LCD Displays
A8603
25
Allegro MicroSystems, LLC
115 Northeast Cutoff
Worcester, Massachusetts 01615-0036 U.S.A.
1.508.853.5000; www.allegromicro.com
AB
C
DE
FAULT
VGH
VGL
VCOM
AVDD
Internal
Enable
Target
0 V
Target
0 V
0 V
Target
0 V
0 V
30%
Watchdog Timer (50 ms)
t
SU_TO
Shutdown
Cool Down Timer (10-200 ms)
t
RESTART
Sequence of events:
A: User issues I2C command to set INT_EN = H, to enable all output regulators.
B: During startup, VGL is unable to reach its regulation target due to an output short or unexpected heavy load.
C: After Watchdog Timer expired, the A8603 reports that a fault has occurred (by asserting FALUT = L) and begins to shutdown all its output
regulators in normal sequence. Fault counter is incremented by 1.
D: When the last regulator (VGH in this case) has finished shutdown, the A8603 waits for a cooldown period (programmable between 10 and
200 ms).
E: Retry startup as long as the maximum number or retries (programmable between 0 and 15) is not exceeded.

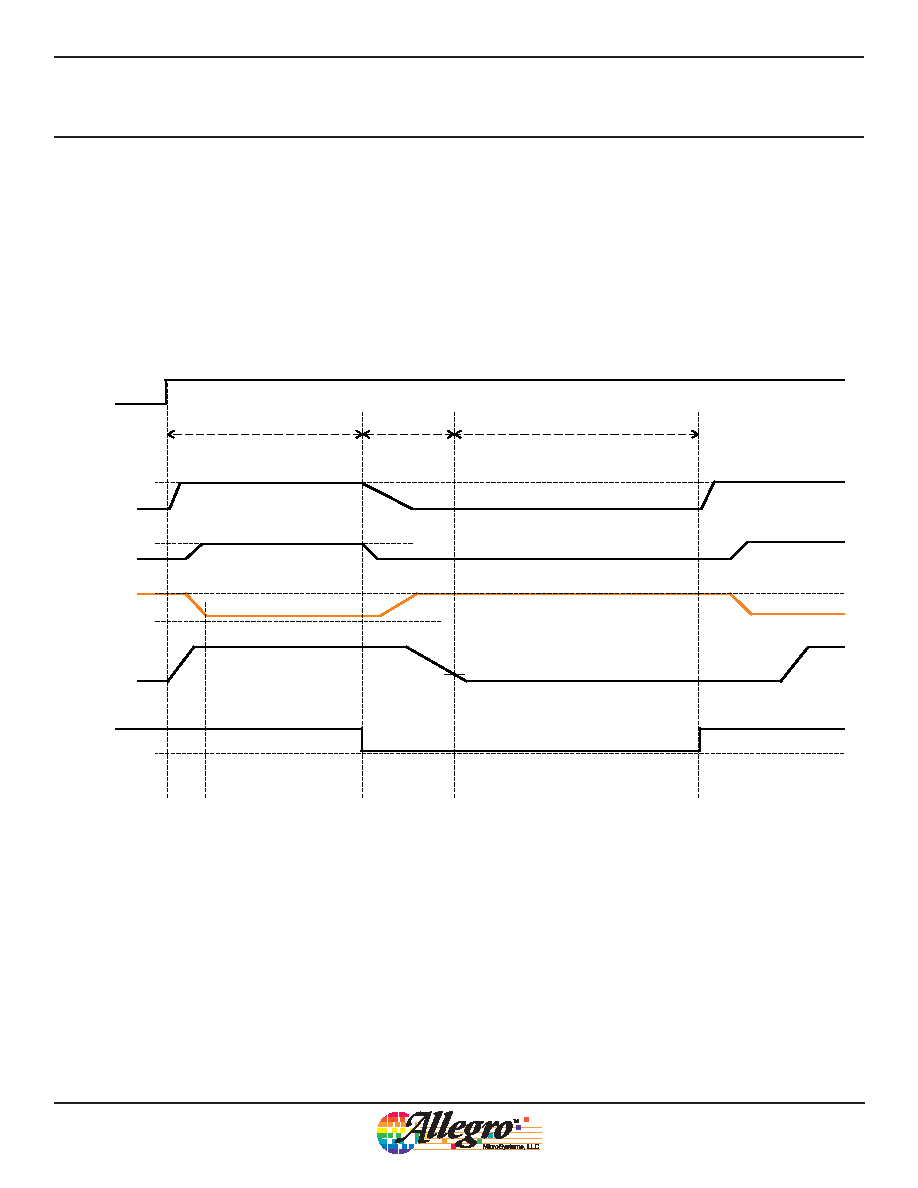

Figure 13: Timing Diagram where VGL Failed to Reach Its Target Voltage at Startup
Examples of Various Fault Conditions
Overcurrent Protection
Each output regulator has a built-in current limit to prevent dam-
ages from overcurrent. During startup, a regulator may initially
operate in overcurrent protection mode while its output capaci-
tor is being charged. Normally, the current will reduce once the
output voltage has reached target value. In case there is an output
short, or if the output capacitor is much larger than expected, the
OCP mode may last for 50 ms. At this point, an OCP fault is gen-
erated. The IC then begins to shut down all regulators according
to programmed shutdown sequence.
