Multiple-Output Regulator for
Automotive LCD Displays
A8603
32
Allegro MicroSystems, LLC
115 Northeast Cutoff
Worcester, Massachusetts 01615-0036 U.S.A.
1.508.853.5000; www.allegromicro.com
Housekeeping
Start
End/Sleep
Startup
Run
Fault
Group 1
End of Shutdown
Fault
Group 2
End of Shutdown
Counter ≥Limit
Fault Counter
+1
Shutdown All
Regulators in
Sequence
Shutdown All
Regulators
Immediately
without
Sequence
Wait for 100 ms
Counter < Limit

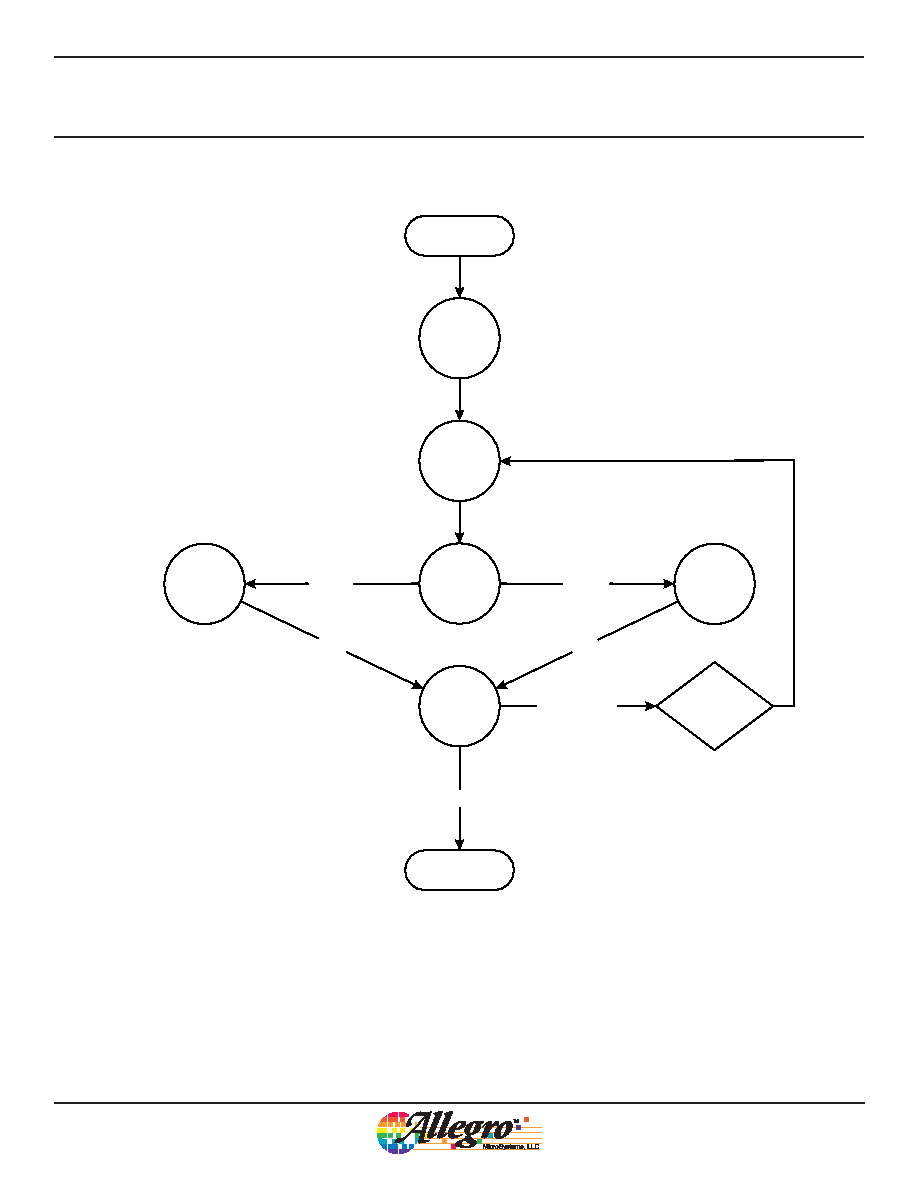

Figure 18: Fault-Retry Counter
