DocID026217 Rev 1
31/72
STLED524
Detailed description

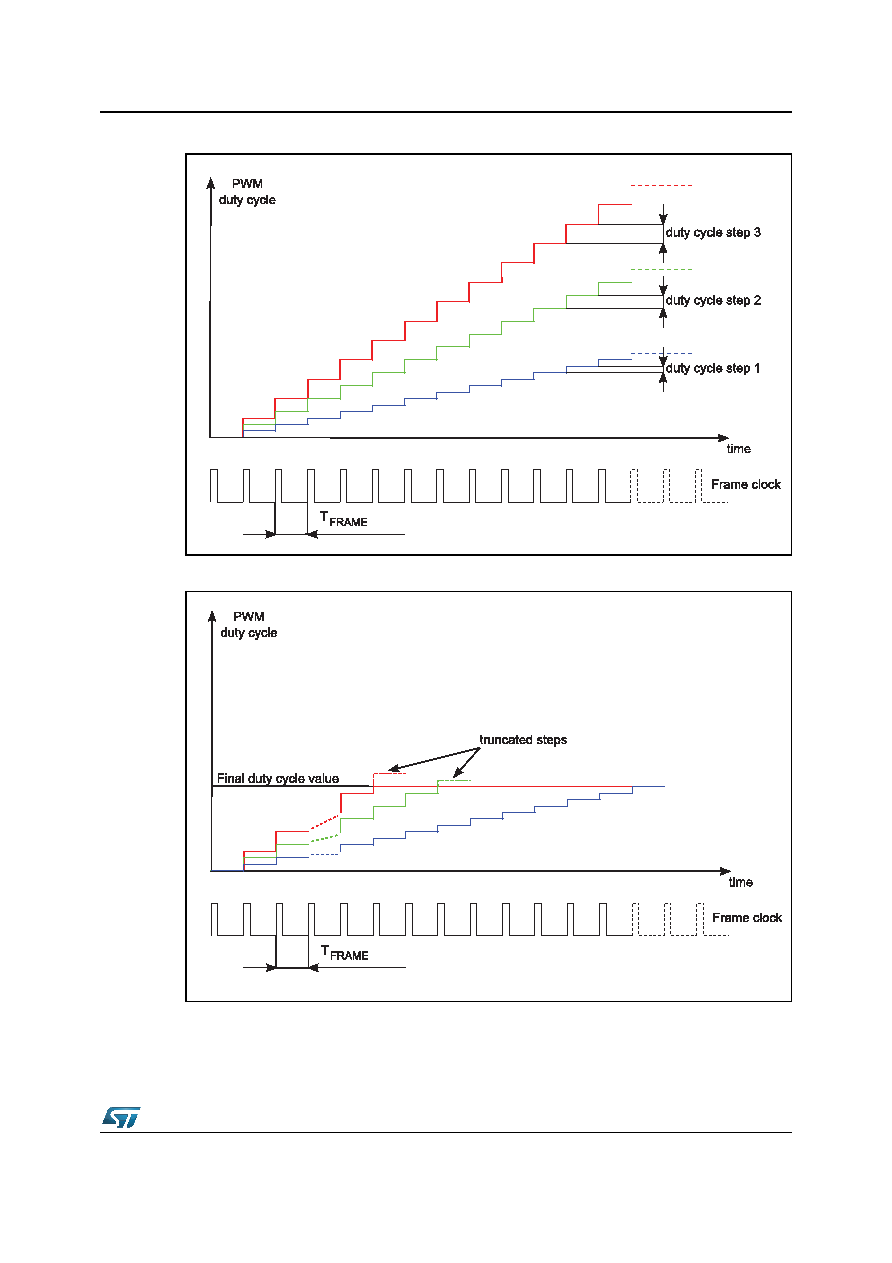

Figure 7. Duty cycle increments during phase 1 of slope operation
Figure 8. Truncation of duty cycle steps during slope operation
If SLPEN is set to 0 during the slope cycle, slope cycle is not finished and the display goes
to the new operation mode immediately.
GIPG210314947LM
GIPG210314949LM
