Detailed description
STLED524
40/72
DocID026217 Rev 1

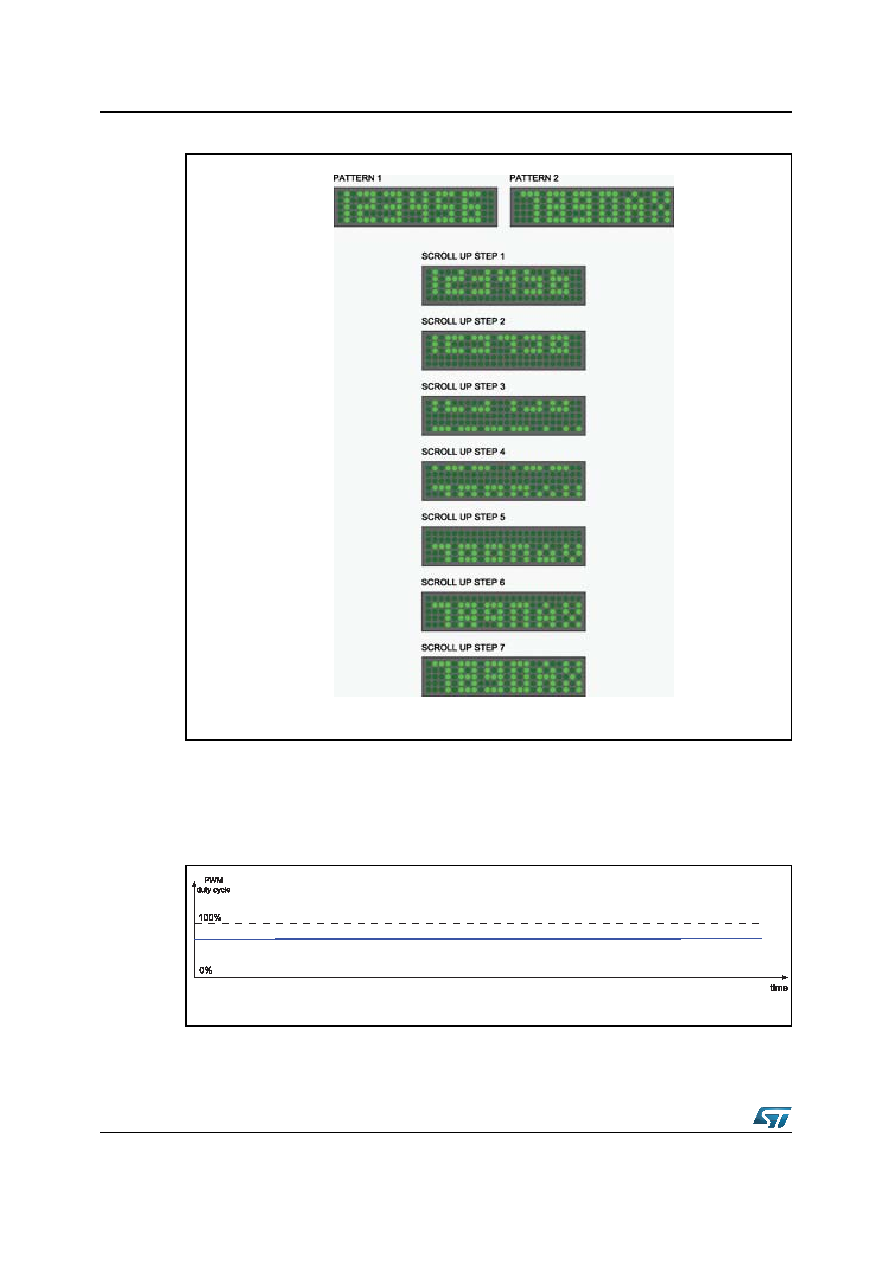

Figure 14. Example of scroll with 2 inserted blank rows (BRCEN=1, DISP 01 → 10)
4.8
Combining PWM, slope and scroll
PWM and slope can be combined without any restrictions.
Figure 15. Light output in case of enabled PWM and disabled slope
GIPG2103141107LM
GIPG2103141014LM
