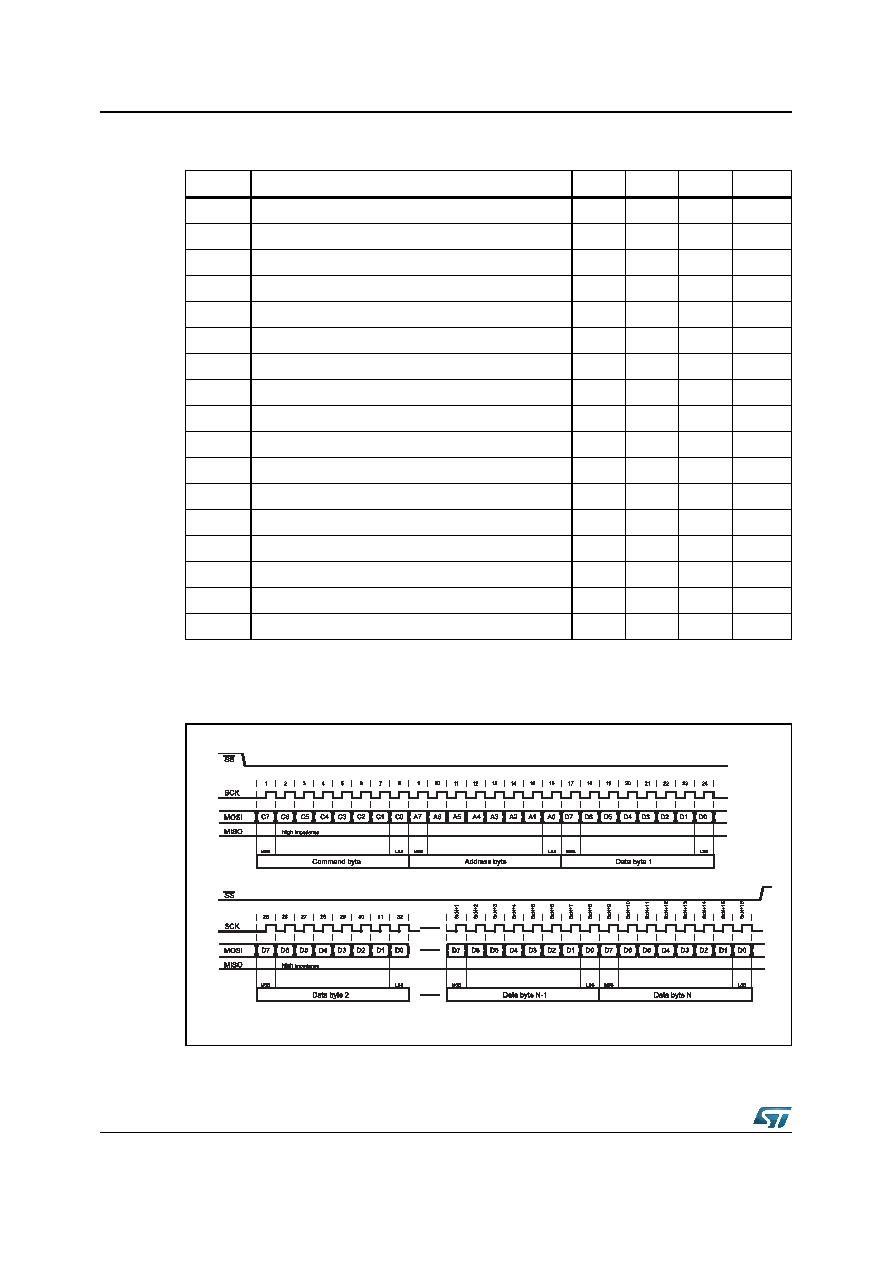

Detailed description
STLED524
46/72
DocID026217 Rev 1
4.9.4
Writing and reading multiple bytes at once
Figure 23. Multiple byte writing at once
Table 50. SPI timings
Symbol
Parameter
Min.
Typ.
Max.
Unit
fC
Clock frequency
DC
20
MHz
tSLCH
SS active set-up time
20
ns
tSHCH
SS not active set-up time
10
ns
tSHSL
SS deselect time
100
ns
tCHSH
SS active hold time
20
ns
tCHSL
SS not active hold time
10
ns
tCH
Clock high time
20
ns
tCL
Clock low time
20
ns
tCLCH
Clock rise time
5
ns
tCHCL
Clock fall time
5
ns
tDVCH
Data in set-up time
4
ns
tCHDX
Data in hold time
5
ns
tSHQZ
Output disable time
20
ns
tCLQV
Clock low to output valid
23
ns
tCLQX
Output hold time
0
ns
tQLQH
Output rise time
10
ns
tQHQL
Output fall time
10
ns
