STLED524 Datasheet(PDF) 36 Page - STMicroelectronics |
|
|
|||||||||||||||||||||||||||||
STLED524 Datasheet(HTML) 36 Page - STMicroelectronics |
|
|

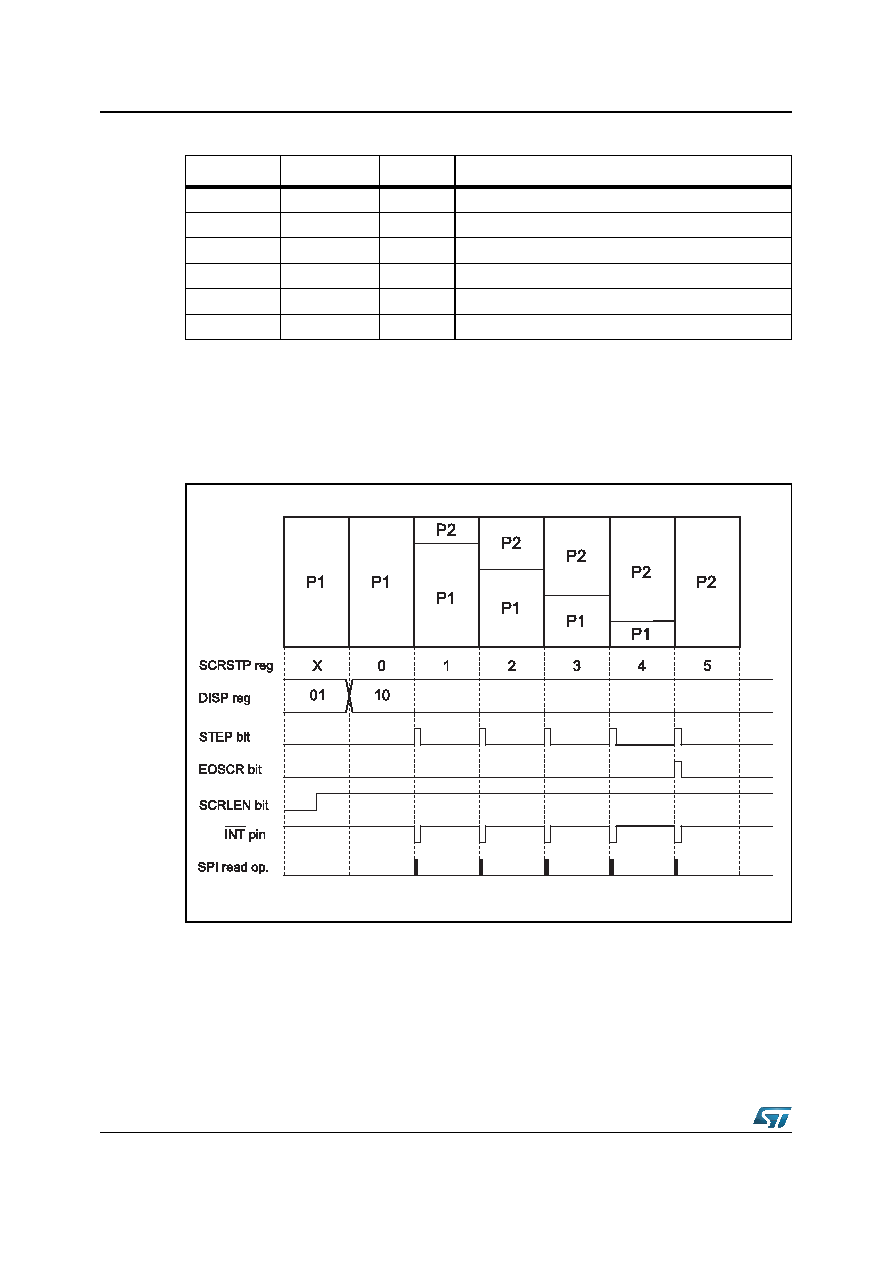

36 / 72 page  Detailed description STLED524 36/72 DocID026217 Rev 1 P1 = pattern 1, P2 = pattern 2, B = blank display, Brc = blank rows/columns Figure 9 shows a scroll operation in vertical direction (5 steps). No blank column or row is inserted and wait time is disabled. As for horizontal direction, the only difference is the number of scroll steps (24 instead of 5). EOSCR bit is set to 1 in the 24th step. Figure 9. Basic scroll operation Figure 10 shows a scroll operation with blank row/column insertion enabled. S is the number of standard scroll steps (with blank row/column insertion disabled). S = 24 for horizontal direction and 5 in case of vertical direction, n is the number of blank rows/columns to be inserted. 01 00 1 P1 → Brc →B 01 01 1 P1 → Brc →P1 (rotation) 01 10 1 P1 → Brc →P2 10 00 1 P2 → Brc →B 10 01 1 P2 → Brc →P1 10 10 1 P2 → Brc →P2 (rotation) Table 46. List of all scroll operations (continued) DISP (act) DISP (new) BRCEN GIPG210314953LM |
|
