DA9080

High Current, Highly Configurable System PMIC with Four Bucks and One

LDO

Datasheet

Revision 1.2

08-Feb-2022

CFR0011-120-00

27 of 51

-2.5mV/usec

-1.25mV/usec

BUCK1

LDO

BUCK2

BUCK3

BUCK4

Slot 3

Slot 2

Slot 1

Slot 0

EN Pin

PG1

PG2

Force Disable Bit

tPG_DLY

10ms

Power down sequence

by EN pin

Slot 0 : Buck1

Slot 1 : LDO

Slot 2 : Buck2 and Buck3

Slot 3 : Buck4

PG1 Group : BUCK1, LDO

PG2 Group : BUCK2, BUCK3, BUCK4

BUCK1_NOT_OV &&

NOT_UV && SS_DONE

LDO_NOT_OV &&

NOT_UV && SS_DONE

BUCK2_NOT_OV &&

NOT_UV && SS_DONE

BUCK3_NOT_OV &&

NOT_UV && SS_DONE

BUCK4_NOT_OV &&

NOT_UV && SS_DONE

tLDO_OFF

1.3ms

tENL_DEBOUNCE

10us

Slot 0

2.5mV/usec

3.3V

1.8V

3.3V

1.25mV/usec

Slot 1

Slot 2

1.1V

tSS

1.32ms

tSS

0.5ms(typ)

tSS

0.72ms

tSS

0.88ms

tPG_DLY

2ms

tPG_DLY

2ms

tPG_DLY

2ms

tPG_DLY

10ms

tENH_DEBOUNCE

100ms

tmask_UV

1.3ms

Slot 3

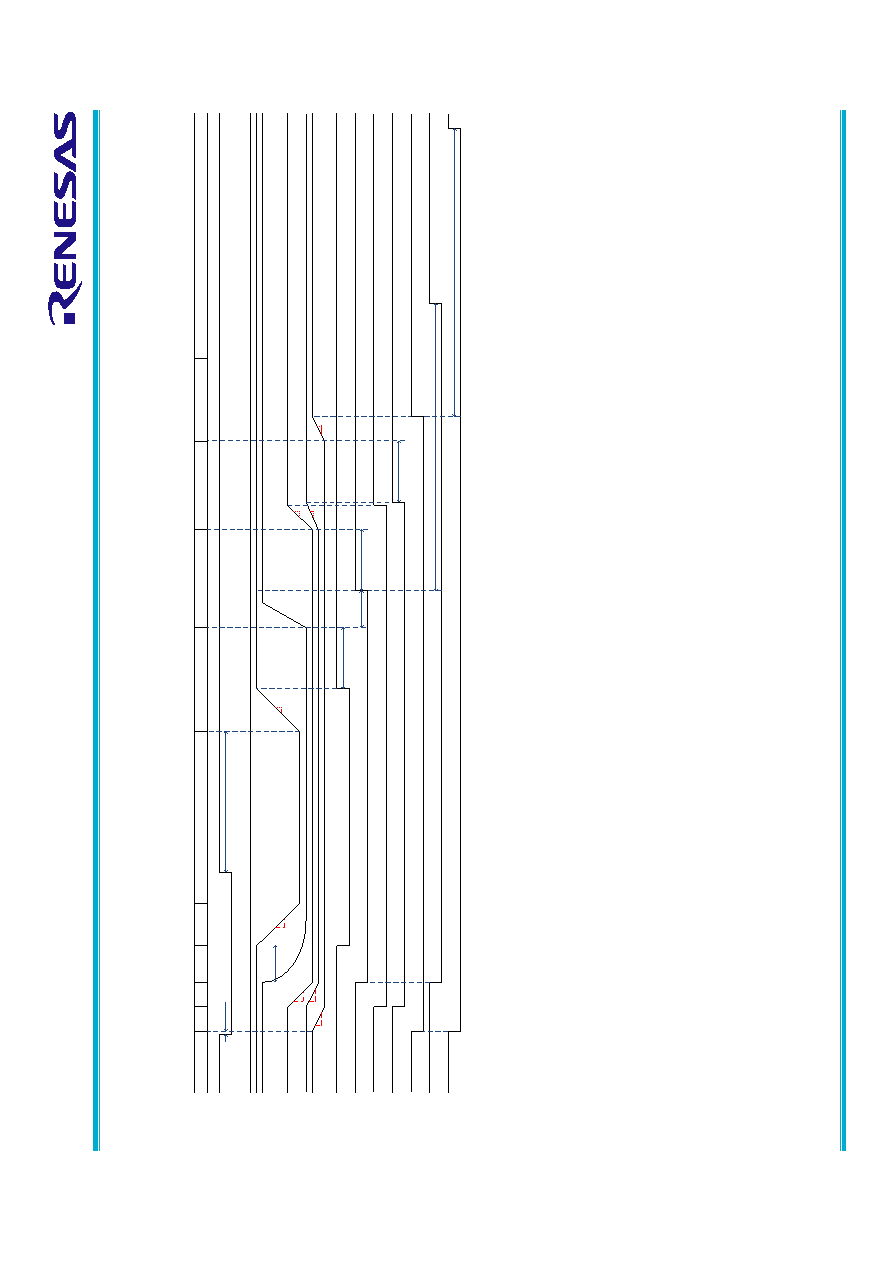

Figure 8: Timing Diagram Example for Power-Down by EN Pin
