Appendix

Status Indicators

This section discusses the several status indicators, their location, and the meaning of their display

status.

A.1

Supervisor Module

While the front panel of each switch can house two supervisors, switch operations require only one.

Supervisors display switch component status and contain Ethernet management and console ports.

Fabric and Fan-only Module Description displays the supervisor location on each switch.

The supervisor provides one serial console port, two Ethernet management ports, two USB ports,

and one clock input port. Supervisor activity is reported by LEDs in the lower left corner. Four LEDs

located right of these LEDs report status of other switch components. Figure 26: Supervisor Module

(DCS-7300(-D)-SUP) displays the Supervisor Module.

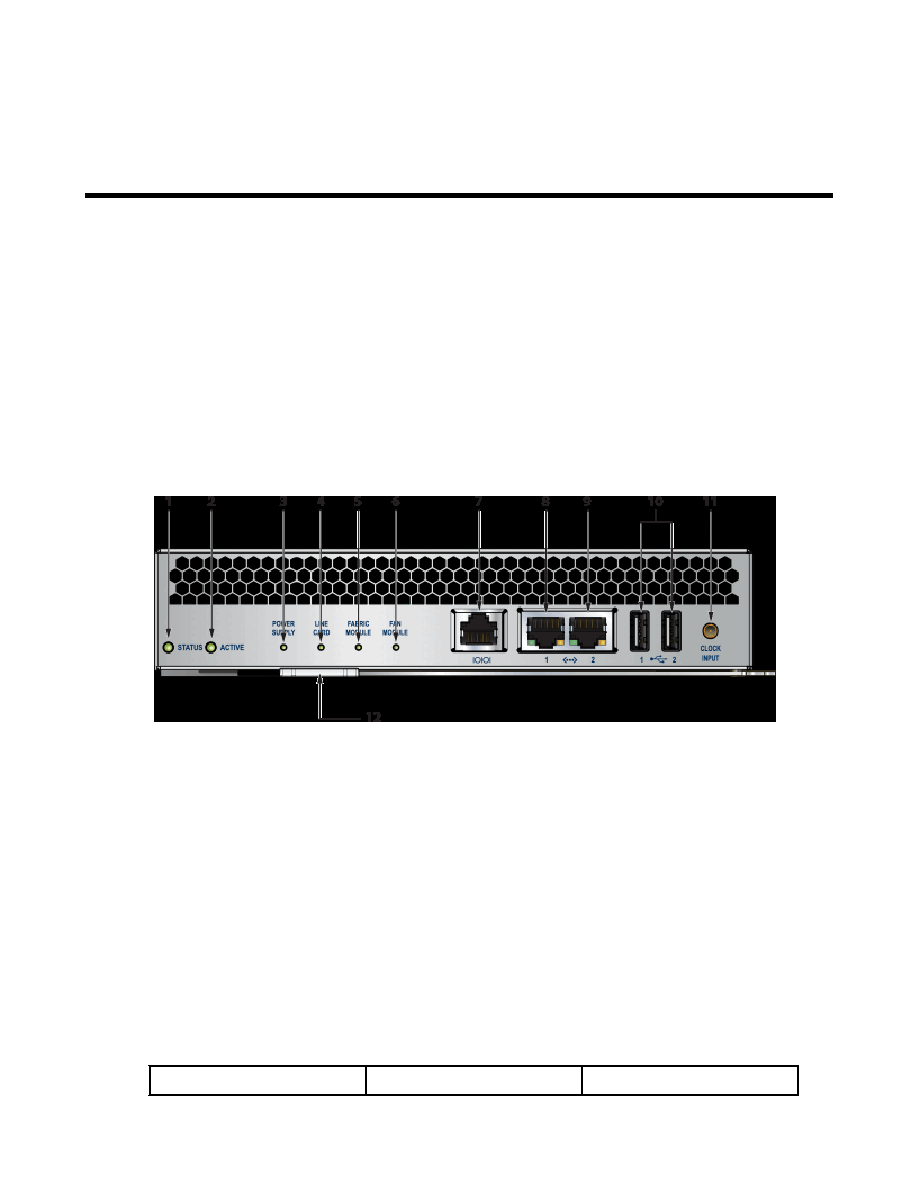

Figure 26: Supervisor Module (DCS-7300(-D)-SUP)

Status LED

Fabric module status

LED

Ethernet management

port

Active LED

Fan module status LED 10

USB ports

Power supply status

LED

Console serial port

Clock input port

Line card status LED

Ethernet management

port

Release lever

Supervisor Activity Status LEDs

Table 9: Supervisor Activity LED States interprets the states of the Status and Active LEDs.

Table 9: Supervisor Activity LED States

LED Name

LED State

Supervisor State
