4.2.3

PWR-3K-DC-Blue Power Supply

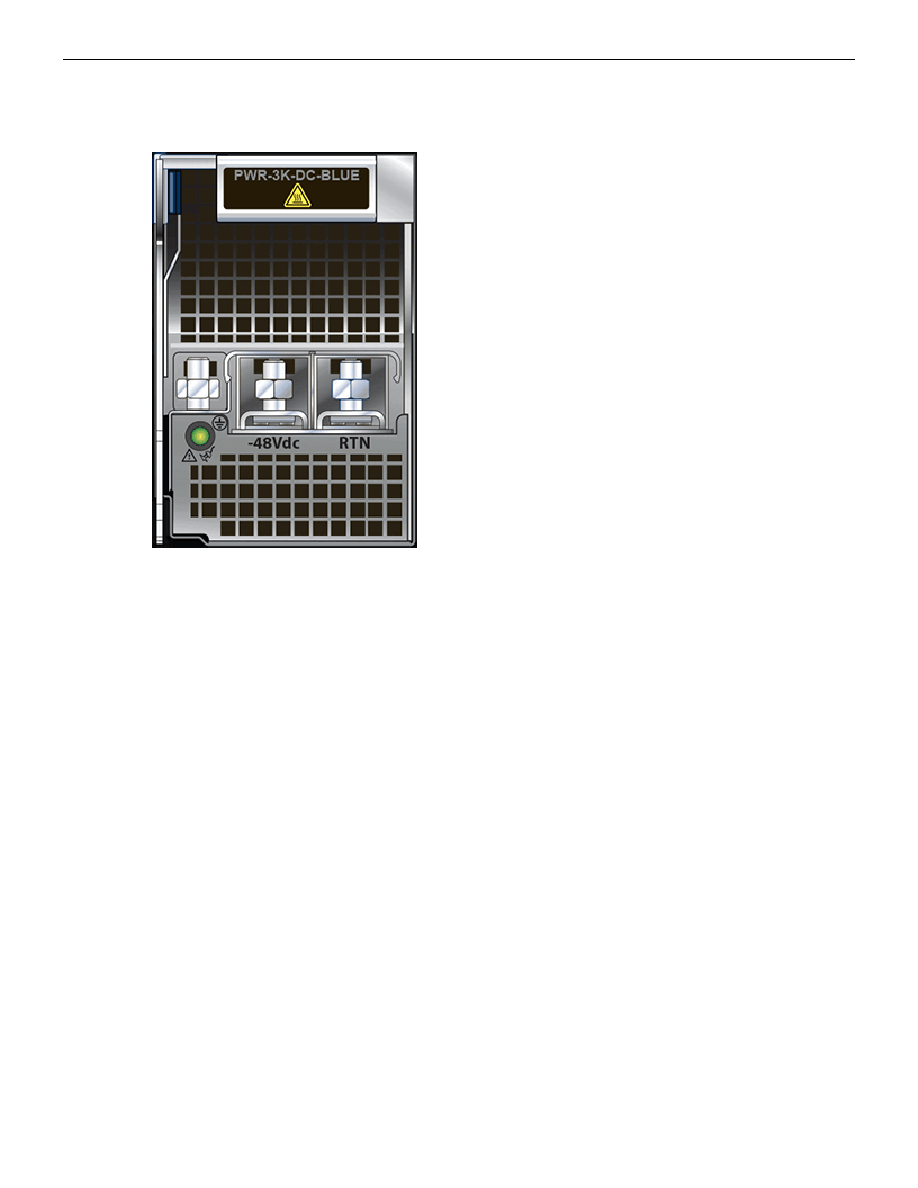

Figure 22: PWR-3K-DC-Blue Power Supply displays the PWR-3K-DC-Blue power supply.

Figure 22: PWR-3K-DC-Blue Power Supply

1. Prepare the stranded wiring, see Wire and Lug Preparation

2. Attach the power cable to the supply terminals.

3. Tightening Torque: 2.7 N-m (24 in.-lbs.)

4.3

DC Power Adapter Installation for PWR-2700-DC-R

4.3.1

Connecting the Power Cable Lug to the Terminal Studs

1. Prepare the stranded wiring, see Wire and Lug Preparation.

2. Remove the clear plastic cover protecting the terminal studs on the adapter by lifting the small

center tab while sliding the cover off the adapter.

4.3.2

Connecting the Ground to PWR-2700-DC-R Power Supply

The primary ground on the system requires a 2 – 4 AWG 5/16 inch lug per power supply.

Figure 23: PWR-2700-DC-R Power Supply displays the PWR-2700-DC-R power supply without the

DC adapter.
